X1 Service Guide 54
Remove and Replace the Speaker
The speaker (526-0151-xx) fastens to the top case. The speaker grill (330-0967-xx) protects the
speaker from damage by objects that could pass through the holes in the top case.
1. Remove the following items:
Lamp module (page 42)
Focus ring (page 30)
Zoom ring (page 30)
Front bezel (page 32)
Rear bezel (page 49)
Top case (page 52)
2. Place the top case face down on a soft work surface.

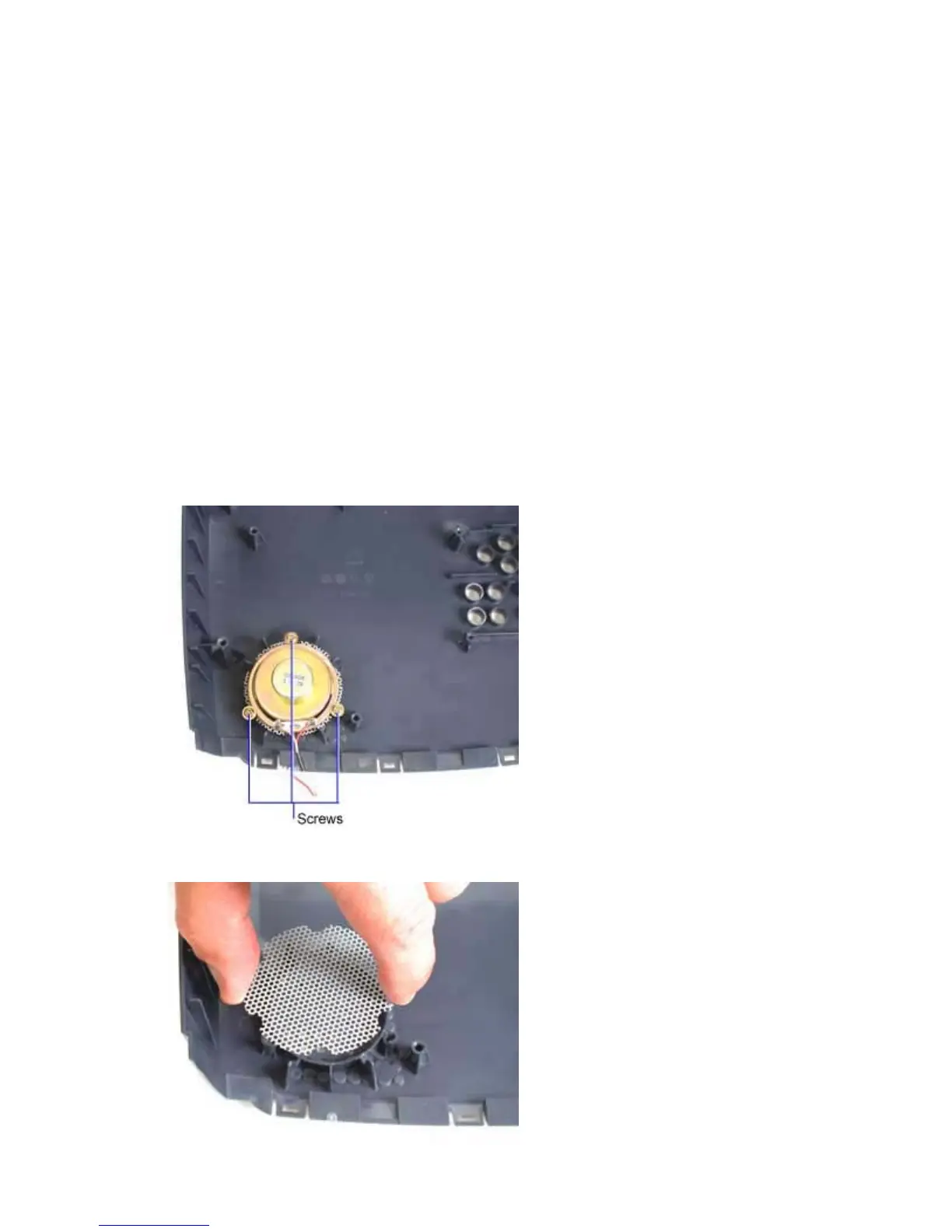

3. Remove the three M3x10 Plastite Phillips screws that fasten the speaker to the top case. Then lift
the speaker away from the top case.
4. Lift the speaker grill away from the top case.
