X1 Service Guide 51
Remove and Replace the Rubber Feet
The rubber foot (328-0155-xx) adheres to the bottom case at the rear of the projector, opposite the
leveling foot.

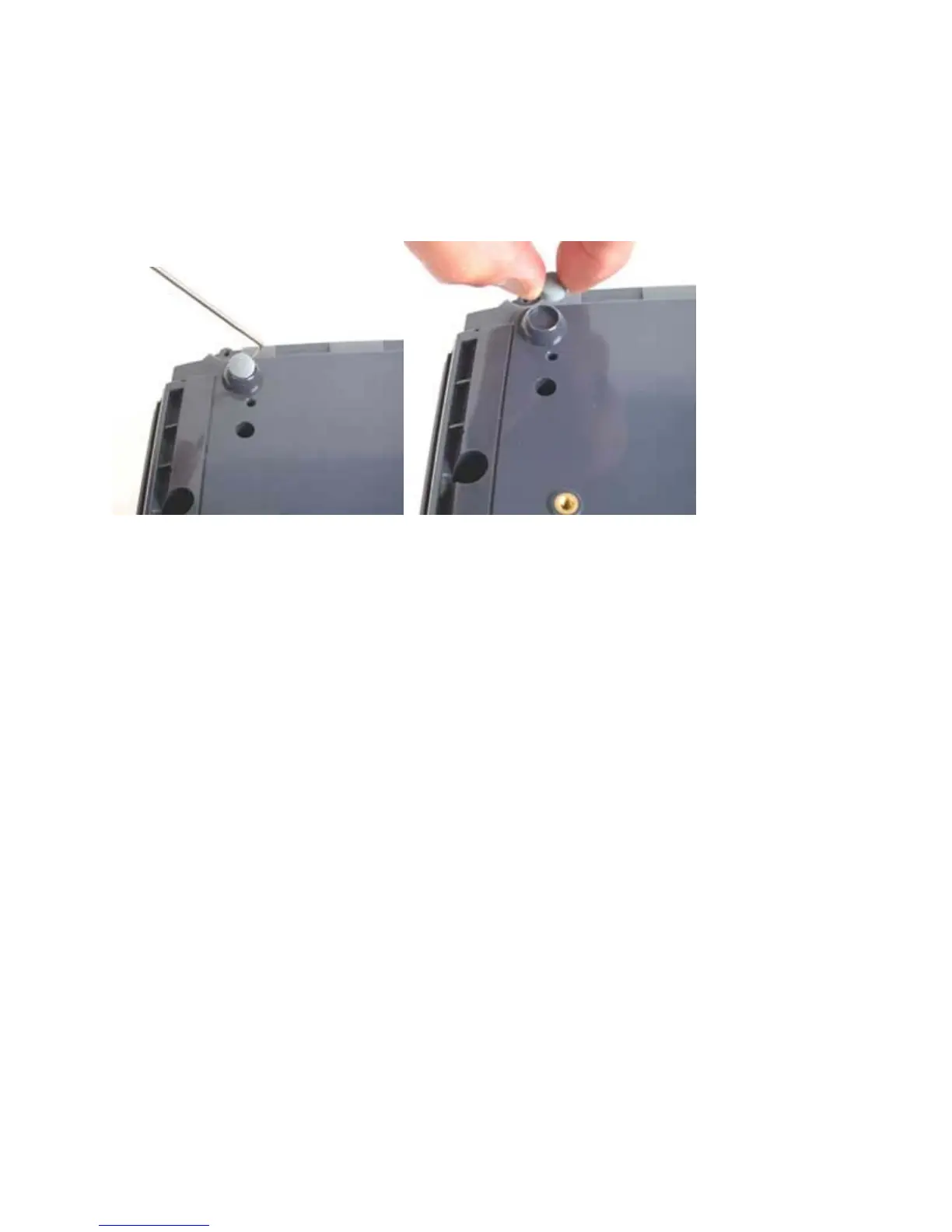

If you need to remove an old rubber foot, gently pry it away from the bottom case. To replace the rubber
foot, peel the protective paper from the replacement foot. Then press the foot into the recess in the
bottom case.
