X1 Service Guide 48
Remove and Replace the Leveling Foot
The leveling foot (340-1118-xx) consists of the leveling foot and shaft, and a retainer. Rotating the
leveling foot extends or retracts it in the bottom case. The shaft threads through the bottom case from the
outside. A circular retainer stops the leveling foot at its maximum extension.
1. Remove the following items:
Lamp module (page 42)
Focus ring (page 30)
Zoom ring (page 30)
Front bezel (page 32)
Rear bezel (page 49)
Top case (page 52)
2. Rotate the leveling foot to fully retract it in the bottom case.

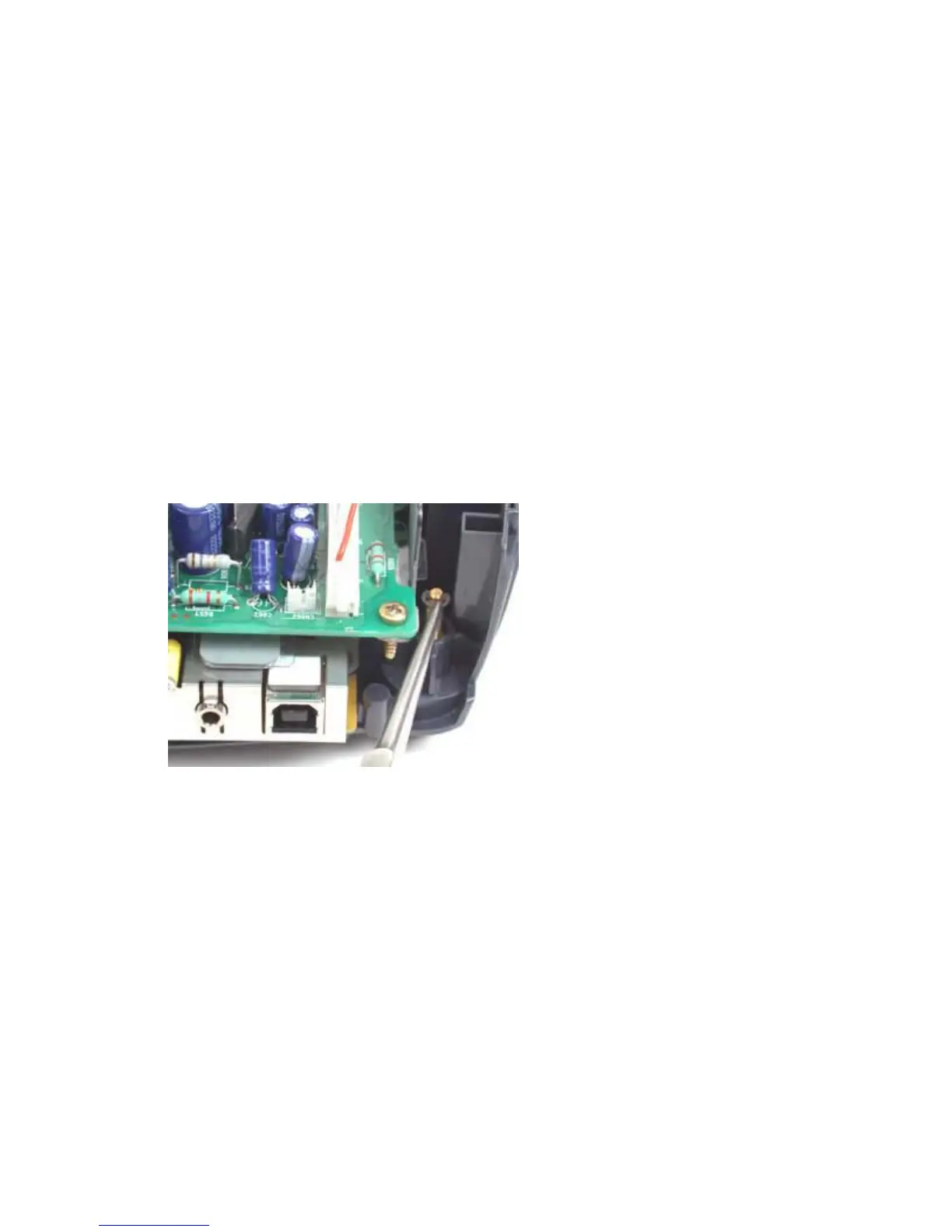

3. Remove the retainer from the groove at the top of the leveling foot shaft.
4. Rotate the leveling foot to extend it until it detaches from the bottom case.
Assembly Notes
♦ Insert the leveling foot shaft into the bottom side of the projector. Rotate the foot until it's fully
retracted in the bottom case.
♦ Replace the retainer in the groove at the top of the leveling foot shaft. Make sure the retainer fully
seats in the groove.
♦ Adjust the leveling foot to be level with the bottom of the projector.
