X1 Service Guide 22
Remove and Replace the Elevator
The elevator is comprised of the elevator spring (321-0107-xx), elevator actuator (340-1119-xx) and
elevator shaft (340-1120-xx). The elevator shaft includes a molded foot. The actuator allows the shaft to
extend or retract and adjust the level of the projected image. The elevator housing is molded into the
bottom case. Except for the housing, each part can be replaced separately.
Remove the Elevator Shaft
1. Remove the following items:
Lamp module (page 42)
Focus ring (page 30)
Zoom ring (page 30)
Front bezel (page 32)
Rear bezel (page 22)
Top case (page 52)

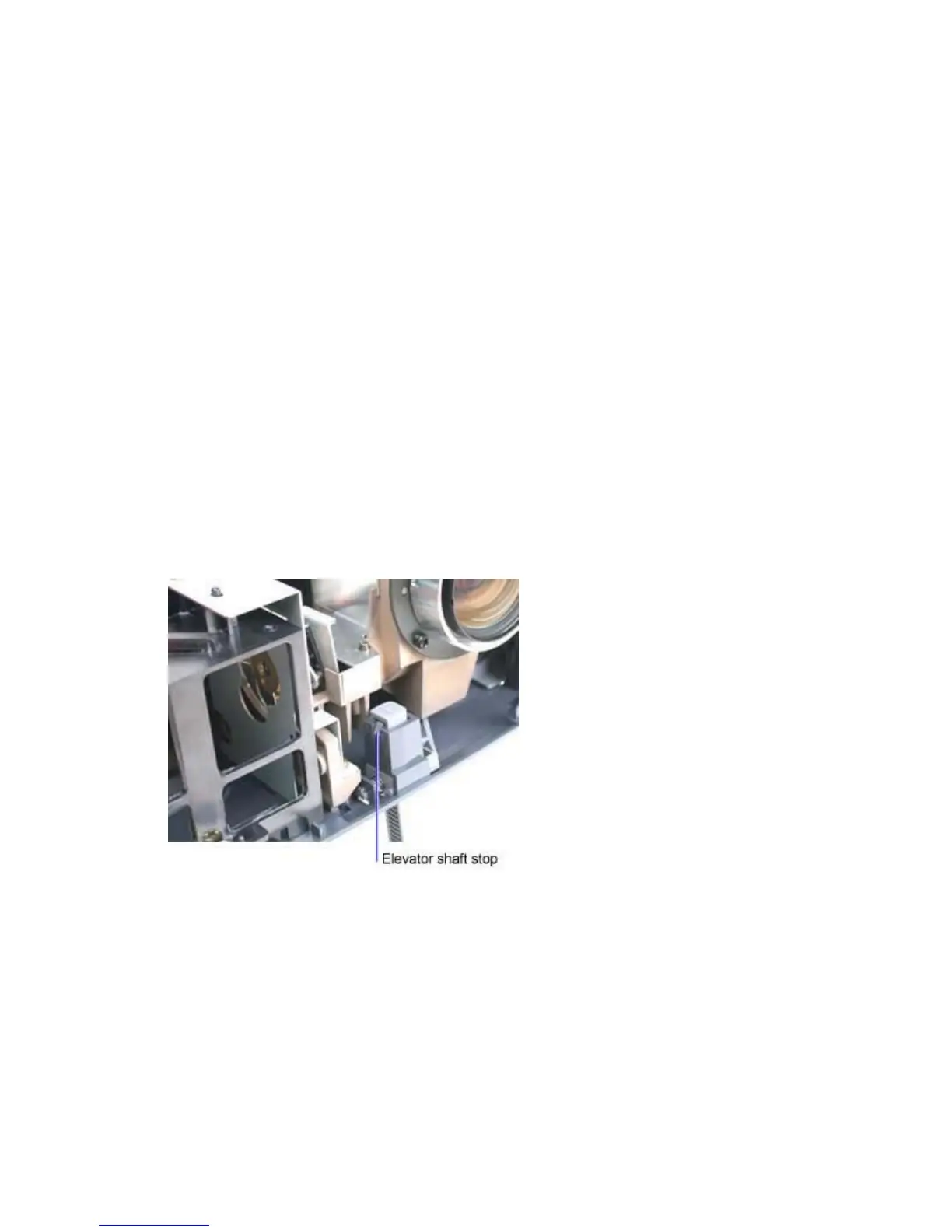

2. Fully extend the elevator shaft. Then use a small flat-blade screwdriver to gently depress the stop
on the elevator shaft. This allows the elevator shaft to pass through the housing and out of the
bottom case.
3. Depress the elevator actuator as you pull the elevator shaft out from the bottom side of the
projector.
Assembly Note
♦ Make sure that the grooves on the elevator shaft face the lamphouse. Then depress the elevator
actuator and replace the elevator shaft in the bottom case.
