X1 Service Guide 23
Remove the Elevator Actuator and Spring
1. Remove the elevator shaft, then remove the:
Ballast/power supply ECA (page 6)
Chassis (page 12)
Controller ECA (page 19)
Color wheel shield (page 17)
Optical engine (page 24)

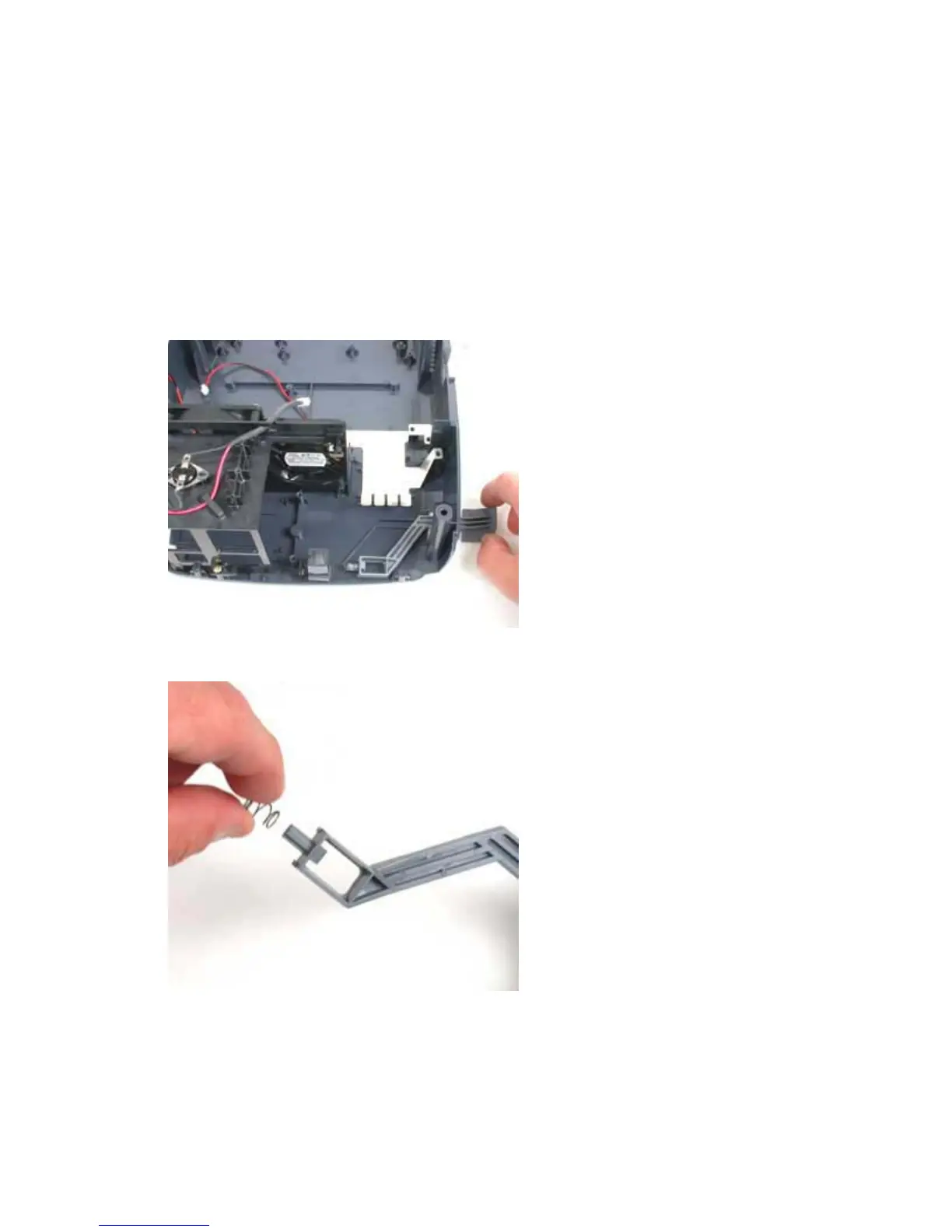

2. Gently slide the elevator actuator out of the bottom case.
3. Slide the elevator spring off of the end of the actuator.
Assembly Note
♦ Replace the elevator spring on the end of the actuator. Then replace the elevator actuator in the
bottom case.
