X1 Service Guide 21
Assembly Notes

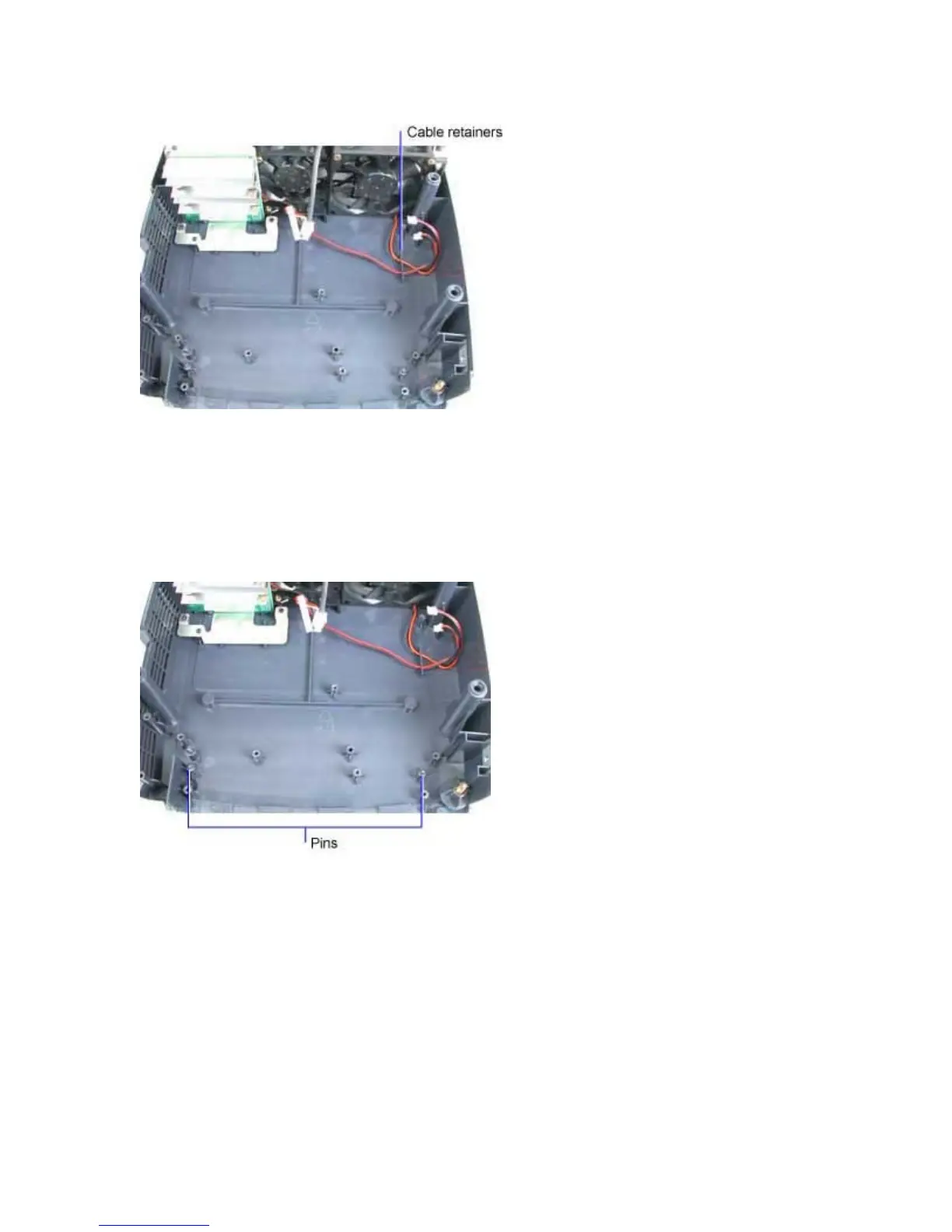

♦ Ensure that the cables from the 60mm and 80mm fans route through the retainers in the bottom case.
♦ Place the controller ECA into the projector, then slide it forward to engage the two connectors at the
DMD ECA.
♦ Make sure that the holes in the controller ECA align properly with the two pins on the bottom case.
Gently press down on the controller ECA to ensure that it is in proper position over the pins on the
bottom case.
♦ Connect the following cables to the controller ECA:
- Safety switch cable to CN708
- Photodiode cable to CN300
- Color wheel cable to CN301
- 60mm fan cable to CN704
- 80mm fan cable to CN705
♦ Replace and tighten the three M3x10 Plastite Phillips screws securely. Do not overtighten the screws.
