X1 Service Guide 13

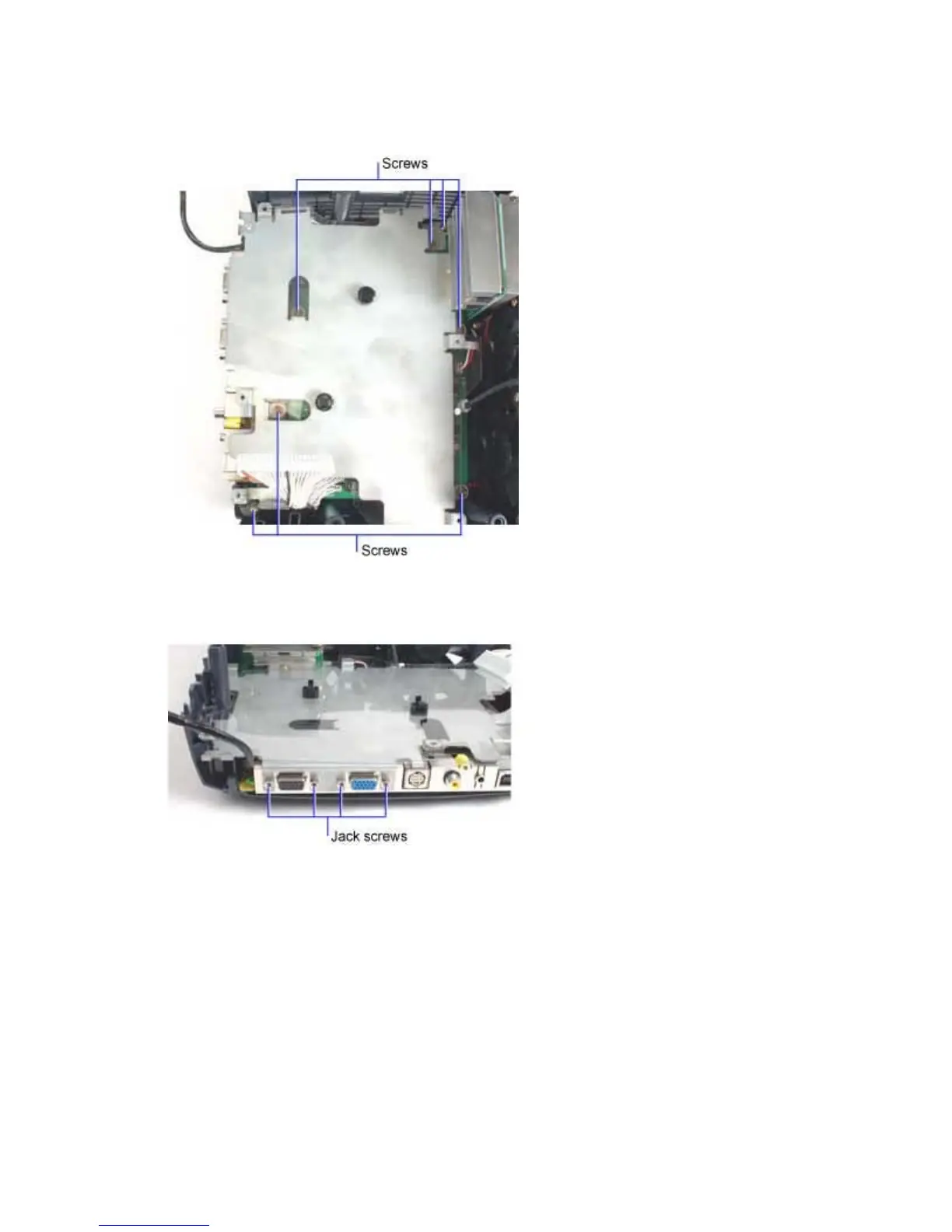

2. Remove the seven M3x10 Plastite Phillips screws that fasten the chassis to the bottom case. You
need to lift the ballast/power supply insulator to reach the two screws near the center of the
chassis.
3. Remove the four #4-40 jack screws that fasten the chassis around the 15-pin D-sub connectors
on the I/O panel.
