Remove the Ballast/Power Supply Insulator
1. Place the chassis upside down on the work surface.

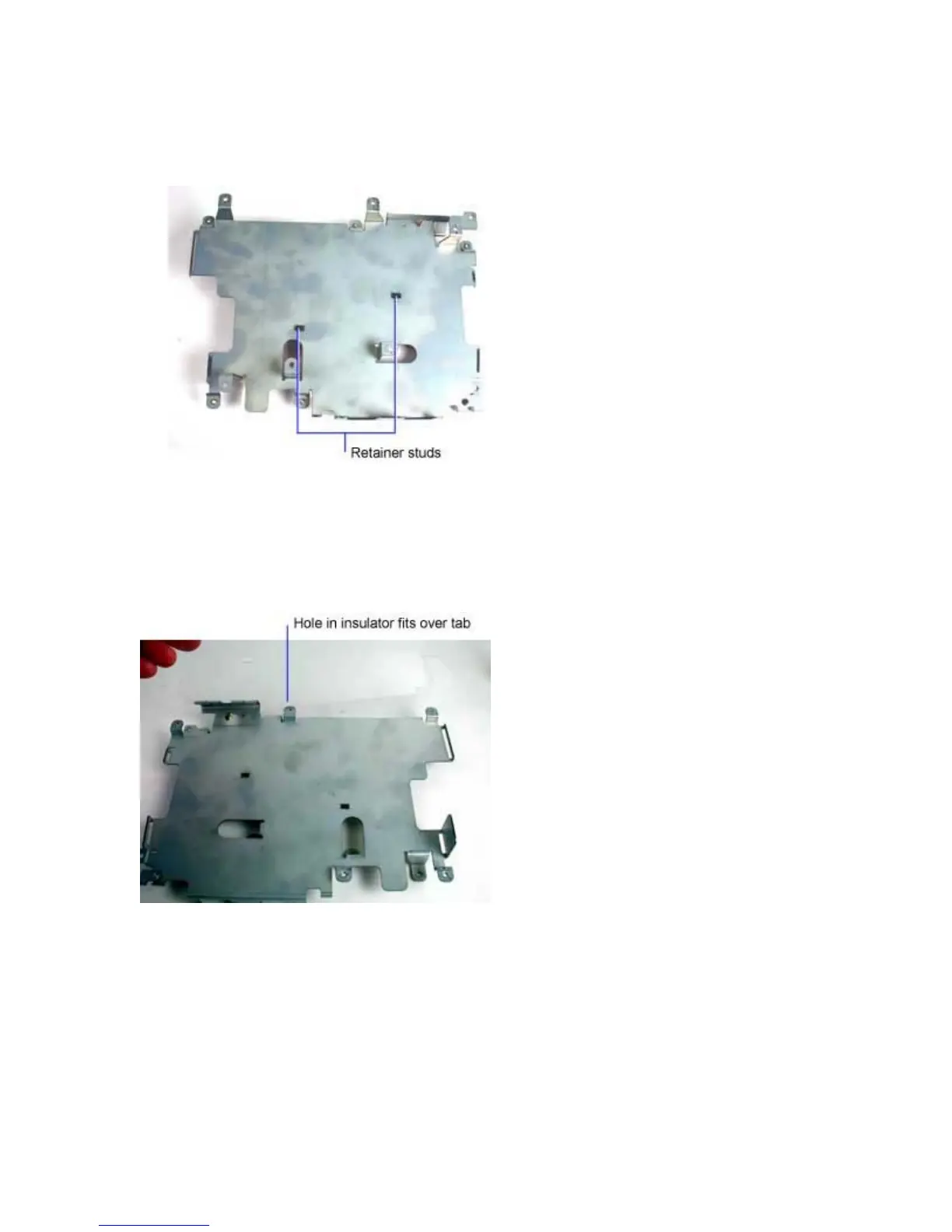

2. Squeeze the tabs on each of the two retainer studs that secure the ballast/power supply insulator
to the chassis. Remove the studs from the chassis.
3. Turn the chassis over. Then lift the insulator away from the chassis.
Assembly Notes
♦ Place the triangular hole in the ballast/power supply insulator over the mounting tab on the chassis.
Then lay the insulator flat against the chassis.
