X1 Service Guide 18

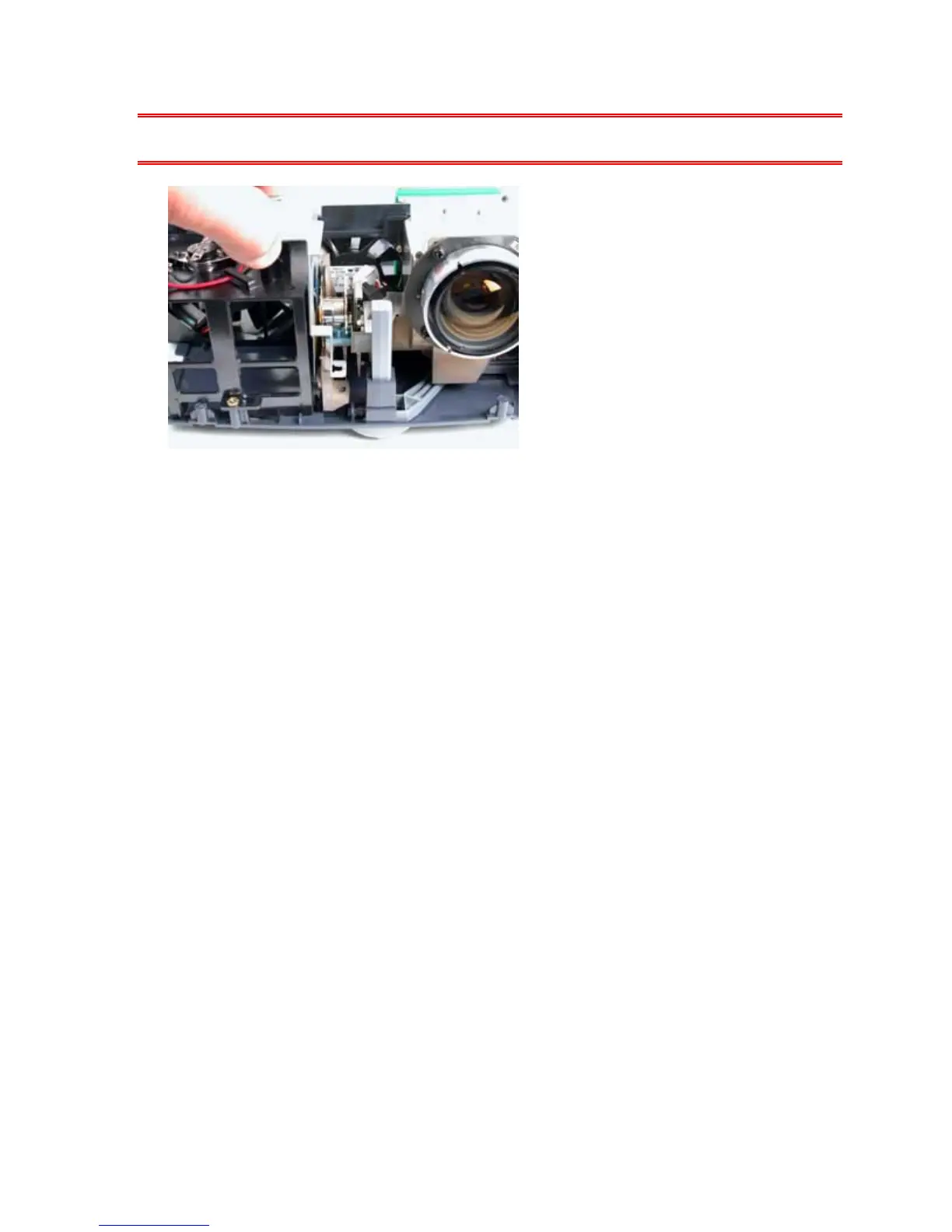

3. Carefully lift the color wheel shield straight upward and out of the projector.
CAUTION The shield is very close to the color wheel. Don't allow the shield to scrape the color wheel
and break or damage it.
Assembly Notes
♦ Be careful as you replace the color wheel shield. Don't allow it to contact the color wheel.
♦ Make sure that the holes in the color wheel shield align properly with the two pins on the lamphouse.
♦ Replace and tighten the two M3x10 Plastite Phillips screws securely. Do not overtighten the screws.
