X1 Service Guide 25

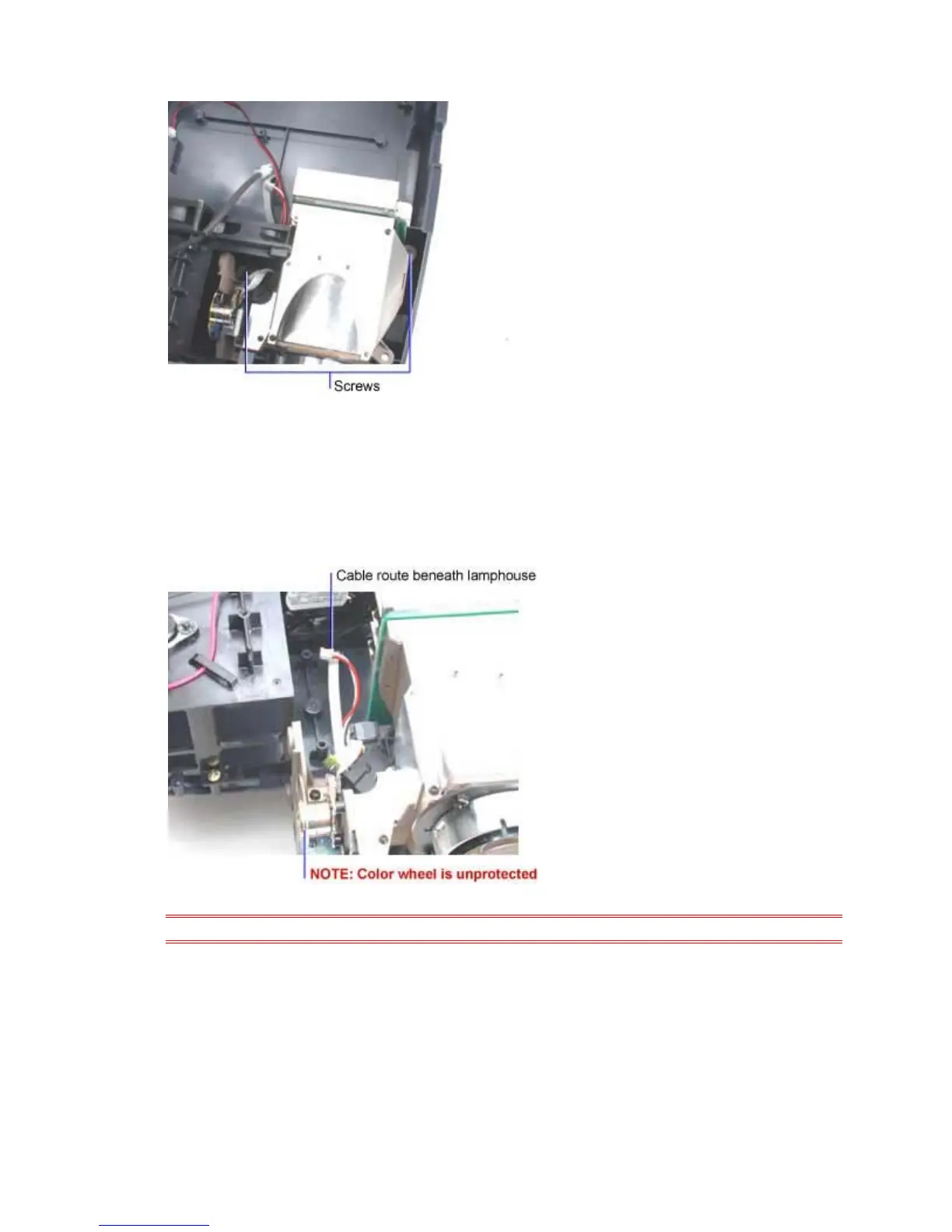

2. Remove the two M3x10 Plastite Phillips screws that fasten the optical engine to the bottom case.
3. Fully extend the elevator shaft to minimize its interference as you remove the optical engine.
4. Grasp the optical engine around the body behind the lens barrel. Carefully lift it up and forward.
The photodiode and color wheel ribbon cables pass through a retainer guide beneath the
lamphouse. As you lift the optical engine, gently pull these cables through the retainer guide and
out from beneath the lamphouse.
CAUTION Avoid touching or damaging the color wheel.
5. Lift the optical engine away from the projector.
6. Place the engine on a soft, static-free surface or in an ESD-protected container.
