X1 Service Guide 34

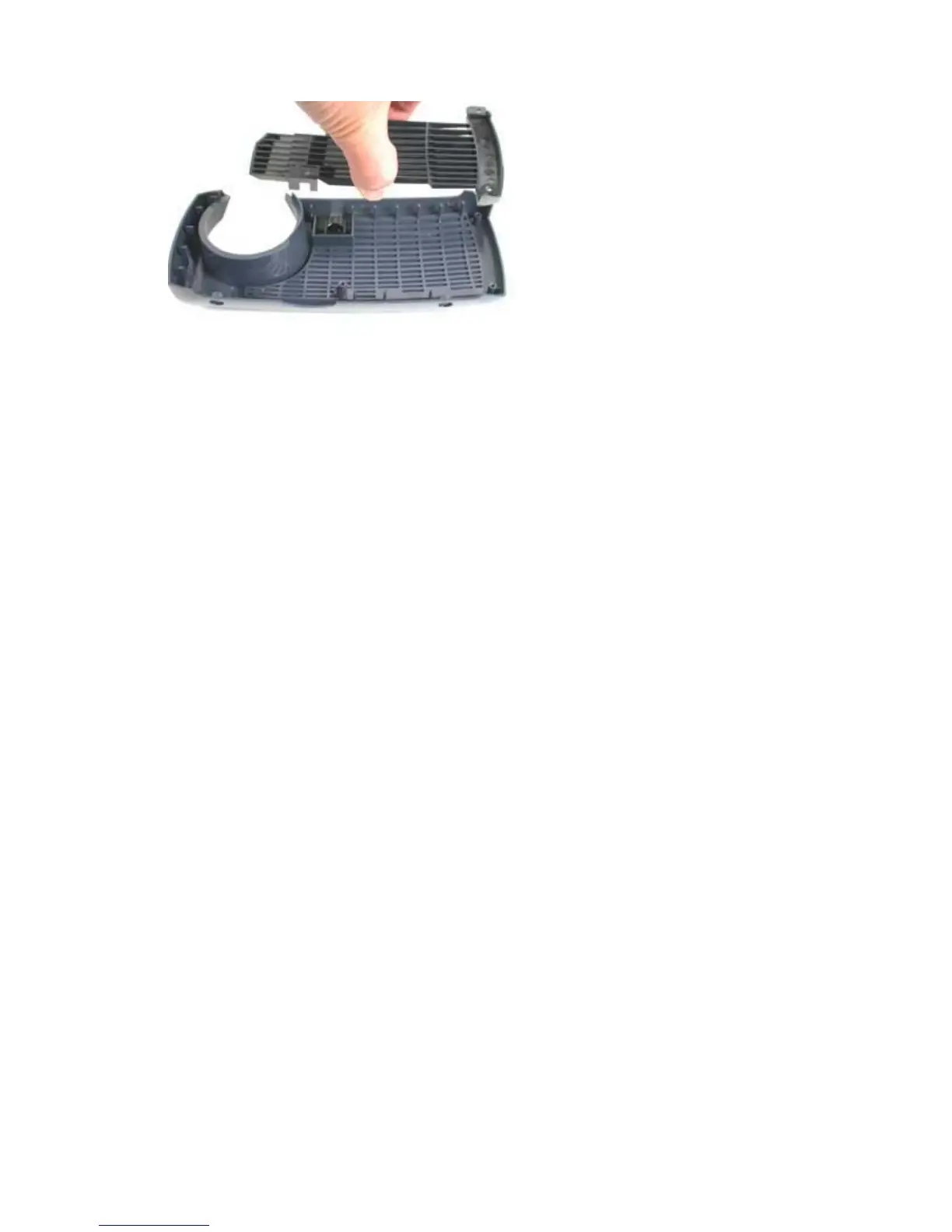

2. Lift the inner grill away from the front bezel.
Assembly Notes
♦ Lay the front grill in position inside the front bezel. Replace and tighten the two M3x8 Plastite Phillips
screws securely. Do not overtighten the screws.
♦ Align the front bezel against the front of the projector. Press the bezel into position to lock the two
tabs and slotted receiver against the top case.
♦ Tighten the two M3x10 Plastite Phillips screws securely. Do not overtighten the screws.
To Next Page
