X1 Service Guide 40

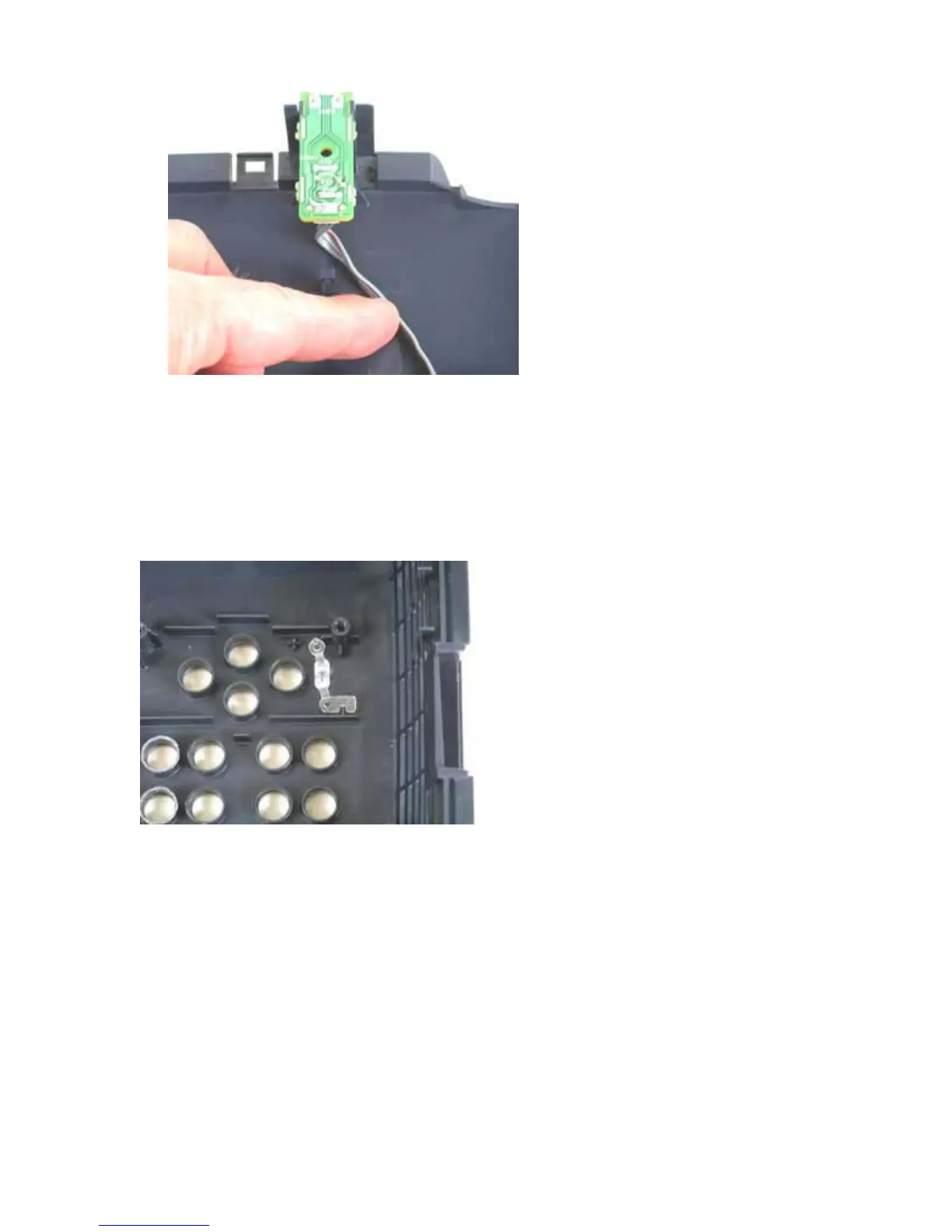

7. Remove the front IR receiver cable from the retainer in the top case.
8. Lift the front IR receiver ECA out of its recess in the top case.
Assembly Notes
♦ The keypad ECA, the front IR receiver ECA, the key set and the LED cover fit only one way in the top
case.
♦ Make sure that the alignment holes in the LED cover fit over the pins in the top case.
♦
♦ Position the key set in the top case such that the holes in the key set frame fit over the pins in the top
case.
