X1 Service Guide 9
Assembly Notes
♦ Ensure that the two retainer studs on the chassis engage the slots in the ballast/power supply ECA.
Press down on the ECA to lock the retainers into the slots.
♦ Tighten the seven M3x12 Plastite Phillips screws securely. Do not overtighten the screws.
♦ Connect the ground terminal to the chassis. Tighten the M4x6 Phillips screw securely.
♦ Connect the power supply/controller ECA cable to CN651 on the ballast/power supply ECA.

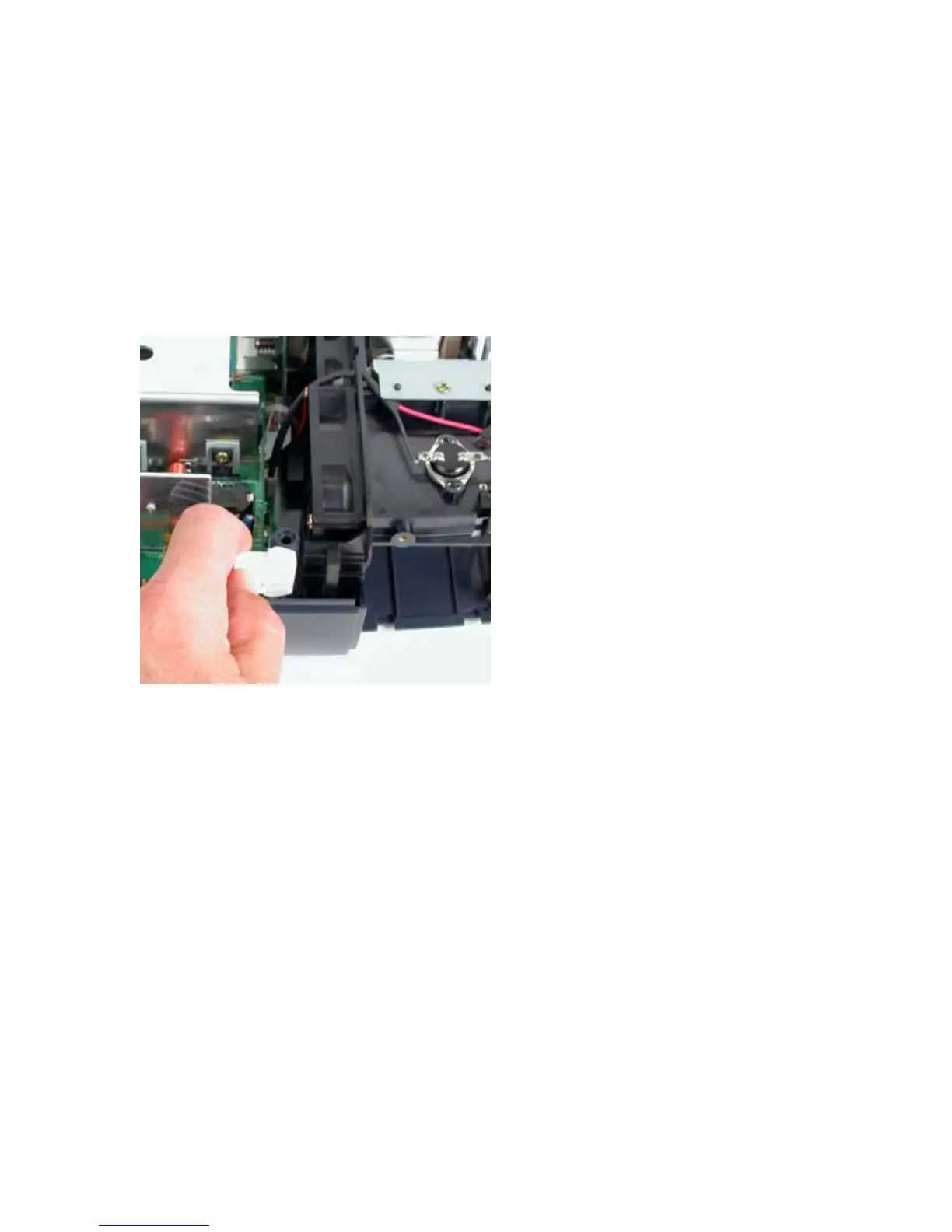

♦ Insert the lamp cable connector into the slot on the side of the lamphouse. Ensure that the slot for the
connector lock faces outward.
