X2 Service Manual 20

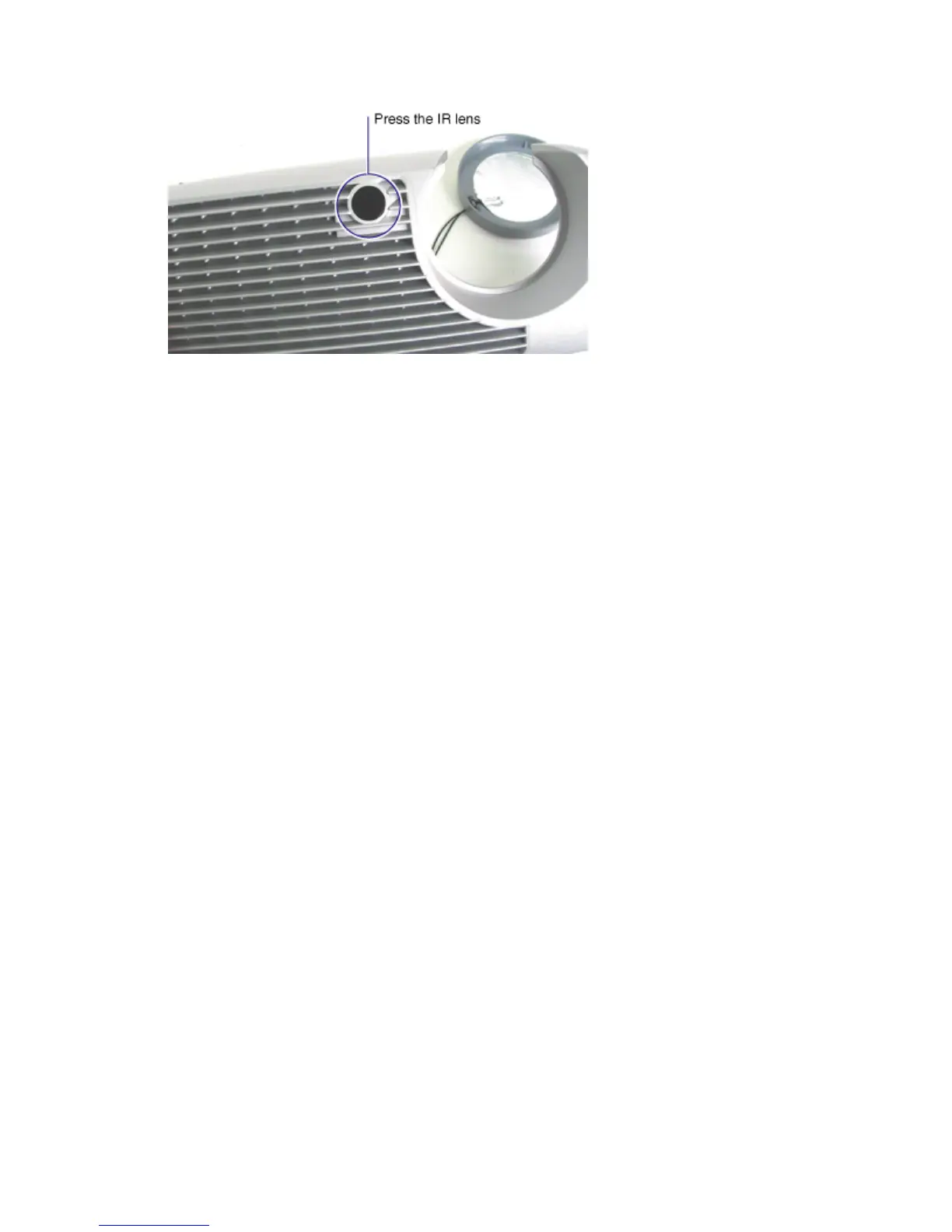

7 Remove the front IR lens by pressing it from the outside so that you can remove it from the
inside.
Assembly Notes
♦ Fasten the inner grill to the front bezel with the two M3x8 Plastite screws.
♦ Press the IR lens into place from the inside of the front bezel.
♦ Align the front bezel against the front of the projector. Press the bezel into position to lock the two
tabs and slotted receiver against the top case.
♦ Tighten the two M3x10 Plastite Phillips screws securely. Do not over tighten the screws.
