4. Operations
4.1 Introduction to the Operating Panel
The operating panel, shown in Figure 4-1, allows you to monitor system operation, modify parameters and start or stop the MD500.

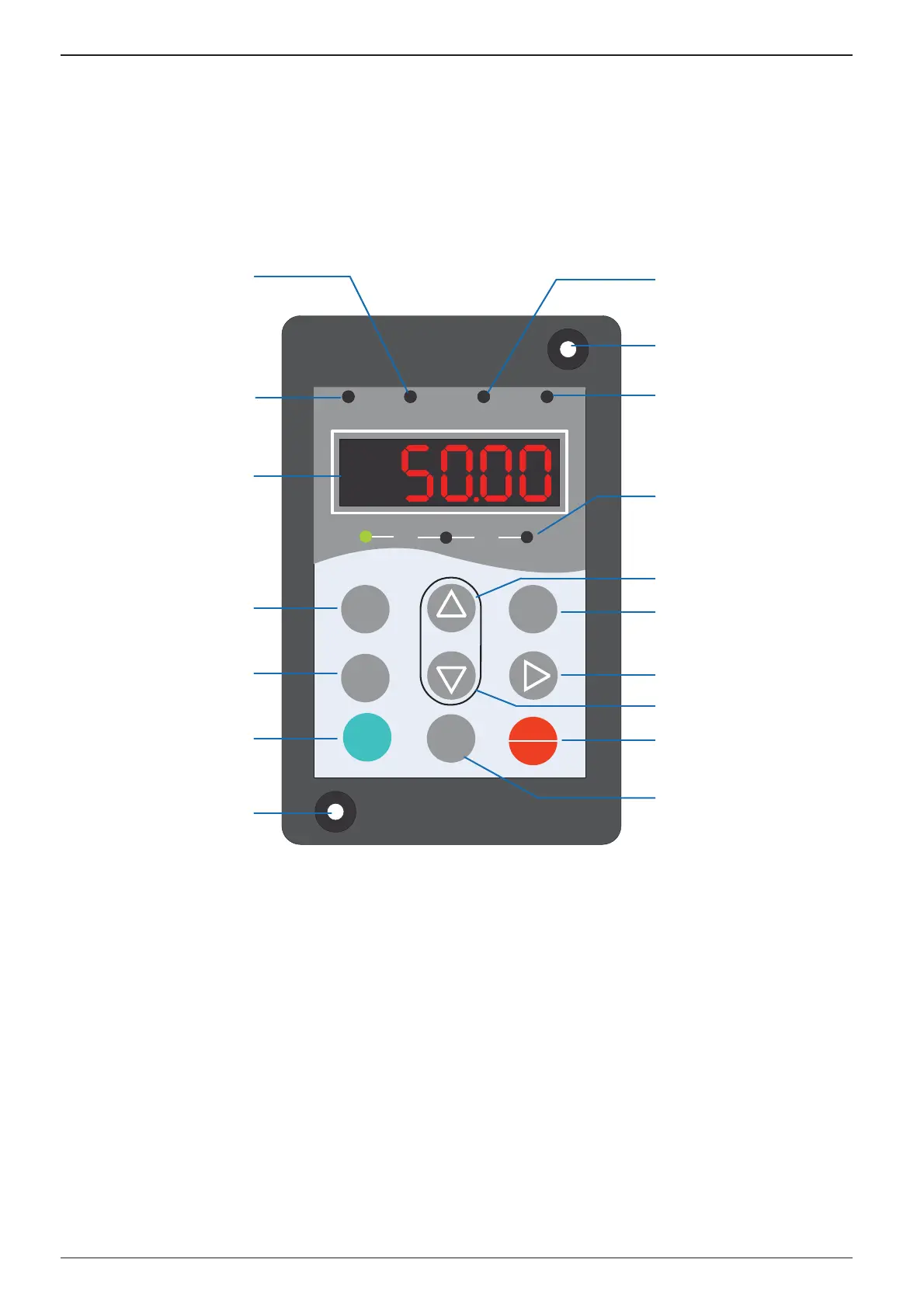

Figure 4-1 Details of the operating panel
RUN LOCALREMOT FEDREV TUNETC
RPM
%
A
V
Hz
PRG ENTER
RUN
STOP
RES
MF.K
QUICK
Command source indicator
ON: terminal;
OFF: operation panel;
BLINK: communication.
Running direction indicator
ON: reverse;
OFF: forward
Running state indicator
ON: running;
OFF:stop.
LED display for parameters
Program key
Menu mode selection key
Run key
Multi-function selection key
StopReset key
Shift key
Increment key
Decrement key
Confirm key
Parameter unit indicator
Other states indicator
ON: torque control;
BLINK slowly: motor auto-tuning;
BLINK quickly: fault state.
Mounting hole
Mounting hole
