6 Trial Running
6

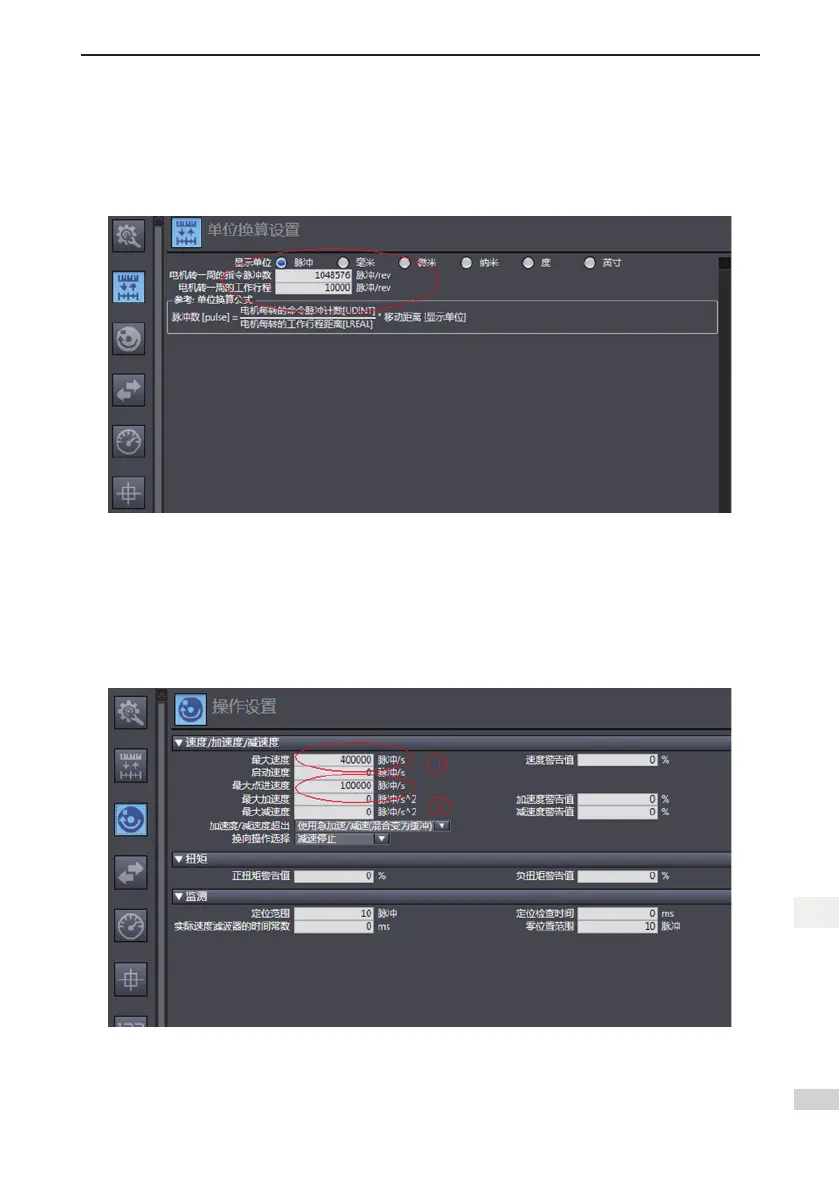

Servo axis parameters settings
Unitconversionsetting:
Select 838,8608 pulses for a circle for the SV820N motor,
whileusingthedefaultvaluefortheworkingstrokepercircleofthemotor.Theeffectissimilartohowthehost
controller converts electronic gear ratio, and the servo drive need not set the conversion again.
Operation setting
After setting the electronic gear ratio, the maximum speed will output an alarm, which means reset the pa-
rameters. Set the unit to
the converted speed unit. 10,000 pulses/s represents 1 R/S (60 RPM) of the actual servo motor.
Please set the maximum speed and jog speed according to the actual operation. If there is no special require-
ment, other parameters may not be set.
