Inovance SV820N Series - 6.6.3 Program Control Operation

- 138 -
6 Trial Running
6

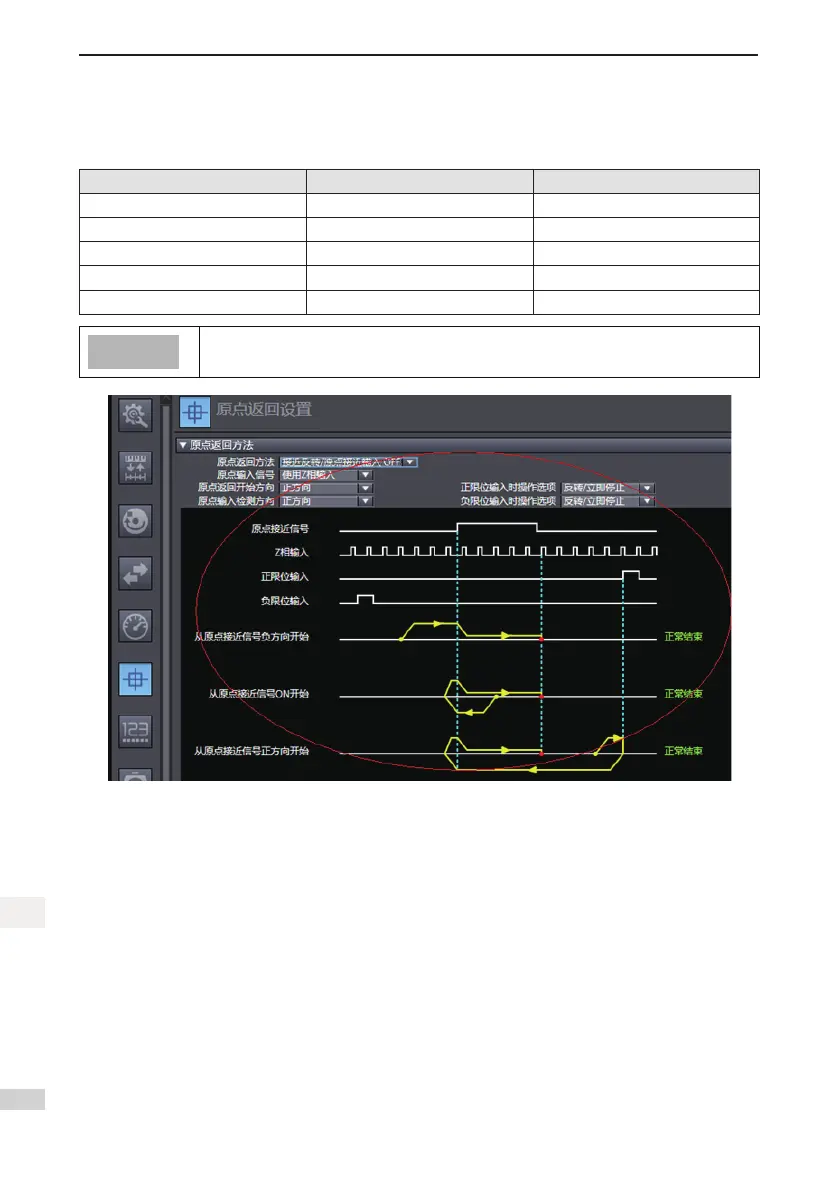

Homing setting
Thehomingmodeaffectsworkingbetweentheservodriveandthehostcontroller.Setitaccordingtothe
following table.
NJ Software Description Servo Drive Function TerminalConguration
Home near signal Home switch (FUN31) DI9
External home input Probe 1 (FUN38) DI8
Phase Z signal input Motor encoder phase Z signal N/A
Positive limit input P-OT (FUN14) DI1
Negative limit input N-OT (FUN15) DI2
Note
Phase Z signal and external home switch signal shall not be used at the same time.
