- 48 -
3 Wiring
3
Specicationofabsoluteencodercables

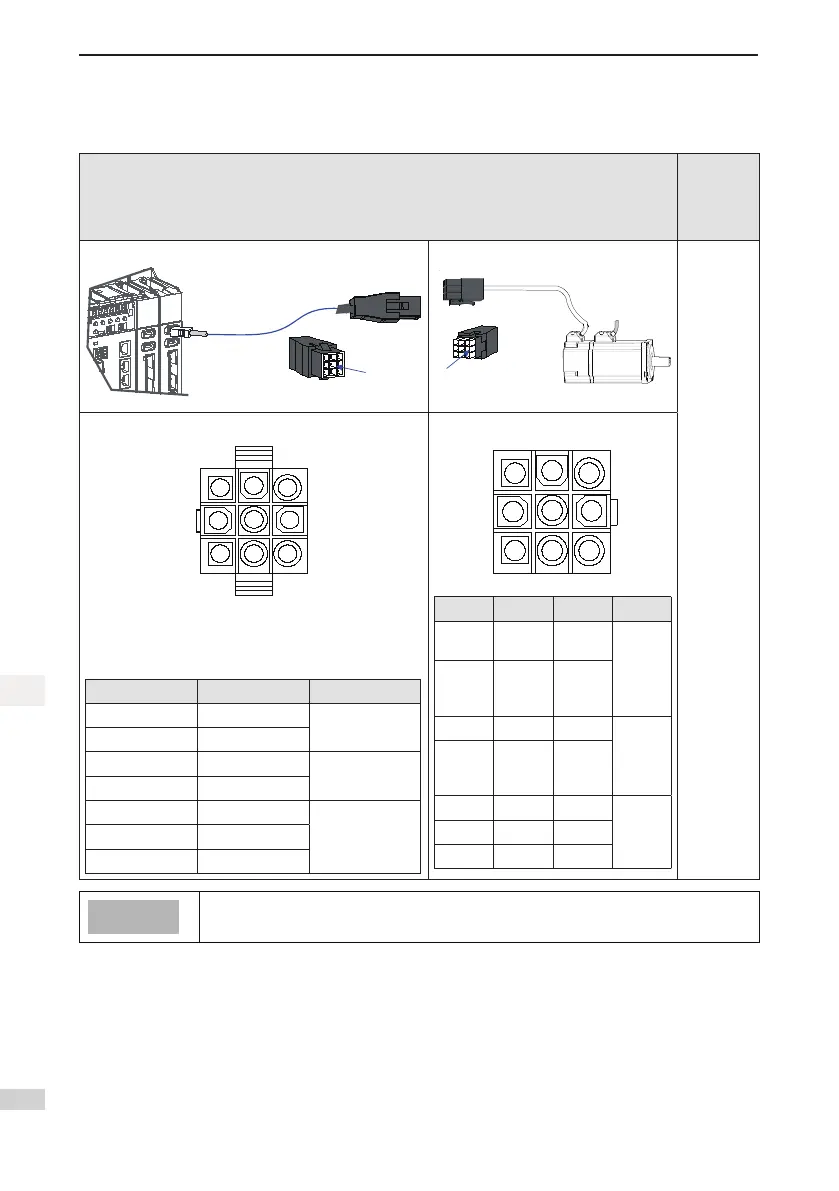

Table 3-11 Connectors of SV820N series 20-bit encoder cables (9-pin connector)
Connector Appearance and the Terminal Pin Layout
Frame
Size of the
Adaptable
Motor
[Note]
Encoder signal
connector
Connect to drive encoder
signal terminals
Visual-in through
this terminal
Encoder outgoing line
Visual-in through
this terminal
40
60
80
9-pin connector
1
2
3
4
5
6
7
8
9
Recommended:
Plasticcasing:AMP172161-1;
Terminal:AMP170359
Pin No. Signal
1 Battery+
4 Battery -
3 PS+
Pair twisted
6 PS-
9 +5V
8 GND
7 Shield
9-pin connector
7
8
9
4
5
6
1
2
3
Pin No. Signal Color
1
Battery
+
Blue
4
Battery
-
Blue
and
black
3 PS+ Yellow
Pair
twisted
6 PS-
Yellow
and
black
9 +5V Red
8 GND Black
7 Shield
Note
Framesizeofthemotorindicatesthewidthofthemotorange.
