4 Operation Panel
4
Function
Code

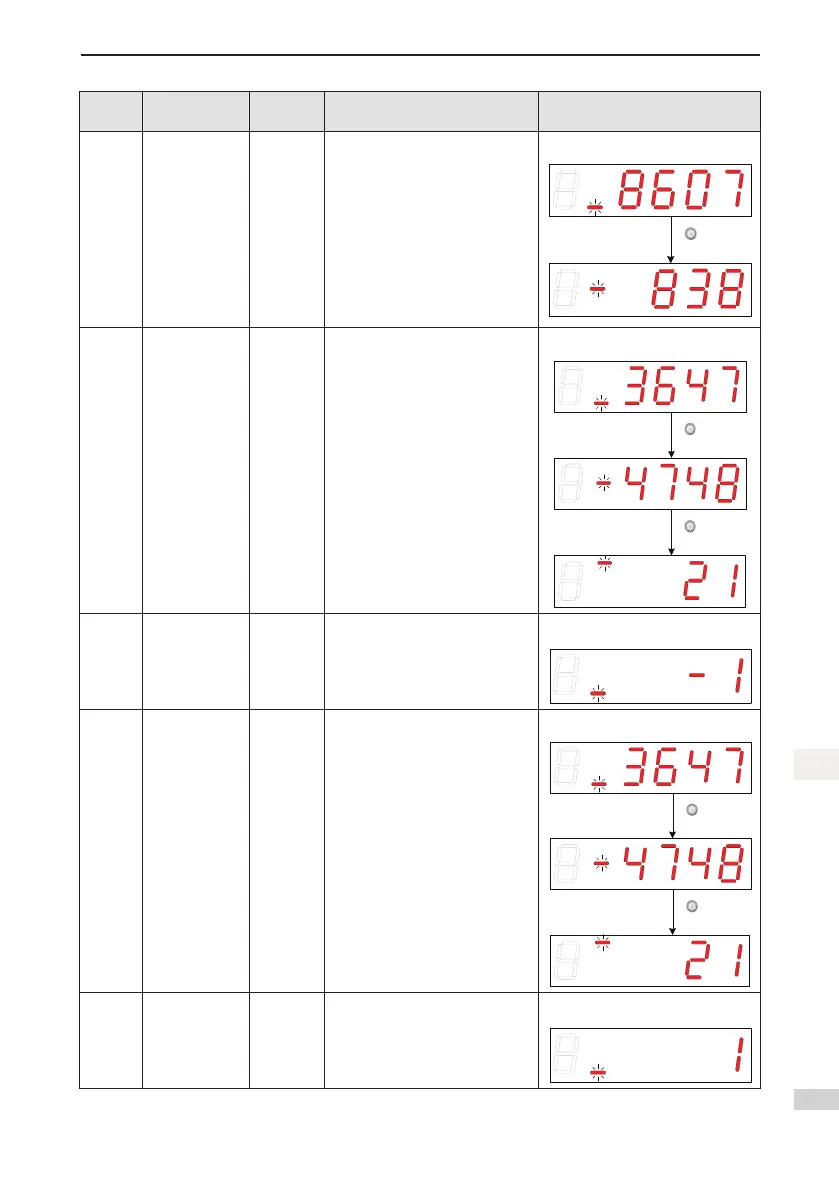

Name Unit Meaning Display Examples
H0B-71
Absolute
encoder single-
turn position
feedback
Encoder
unit
It displays the single-turn position
feedbackoftheabsoluteencoder.
Example:8388607Encoderunit
SHIFT
H0B-77
Position (low
32 bits) of
the absolute
encoder
Encoder
unit
It displays the absolute position
(low 32 bits) of the motor when the
absolute encoder is used.
Example:2147483647encoderunit
SHIFT
SHIFT
H0B-79
Position (high
32 bits) of
the absolute
encoder
Encoder
unit
It displays the absolute position
(low 32 bits) of the motor when the
absolute encoder is used.
Example:–1encoderunit
H0B-81
Rotating
load single-
turn position
feedback(low
32 bits)
Encoder
unit
It displays mechanical load position
feedback(low32bits)whenthe
absolutesystemworksinrotating
mode.
Example:2147483647encoderunits
SHIFT
SHIFT
H0B-83
Rotating
load single-
turn position
feedback(high
32 bits)
Encoder
unit
It displays mechanical load position
feedback(high32bits)whenthe
absolutesystemworksinrotating
mode.
Example:1Encoderunit
