4 Operation Panel
4
Function
Code

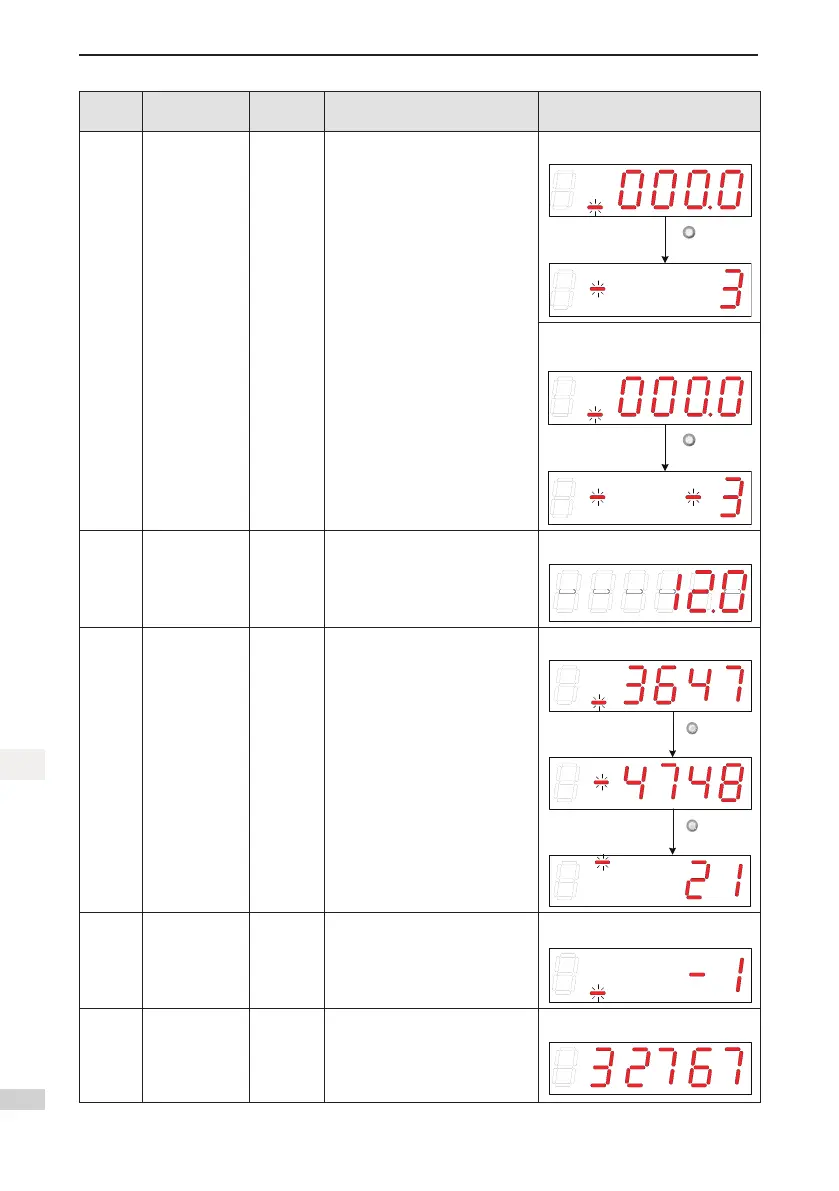

Name Unit Meaning Display Examples
H0B-55
Actual motor
speed
0.1 RPM
It indicates the actual servo motor
speed, precision to 0.1 RPM.
3,000.0RPMisdisplayedasfollows:
SHIFT
–3,000.0 RPM is displayed as
follows:
SHIFT
H0B-57
Control power
voltage
0.1 V
It indicates the control power DC
voltage.
12.0Visdisplayedasfollows:
H0B-58
Mechanical
absolute
position (low 32
bits)
Encoder
unit
It displays mechanical absolute
position (low 32 bits) when the
absolute encoder is used.
Example:2147483647encoderunit
SHIFT
SHIFT
H0B-60
Mechanical
absolute
position (high 32
bits)
Encoder
unit
It displays mechanical absolute
position (high 32 bits) when the
absolute encoder is used.
Example:–1encoderunit
H0B-70
Number of
the absolute
encoder turns
Rev
It displays the current number of
the absolute encoder turns.
Example:32767
