36

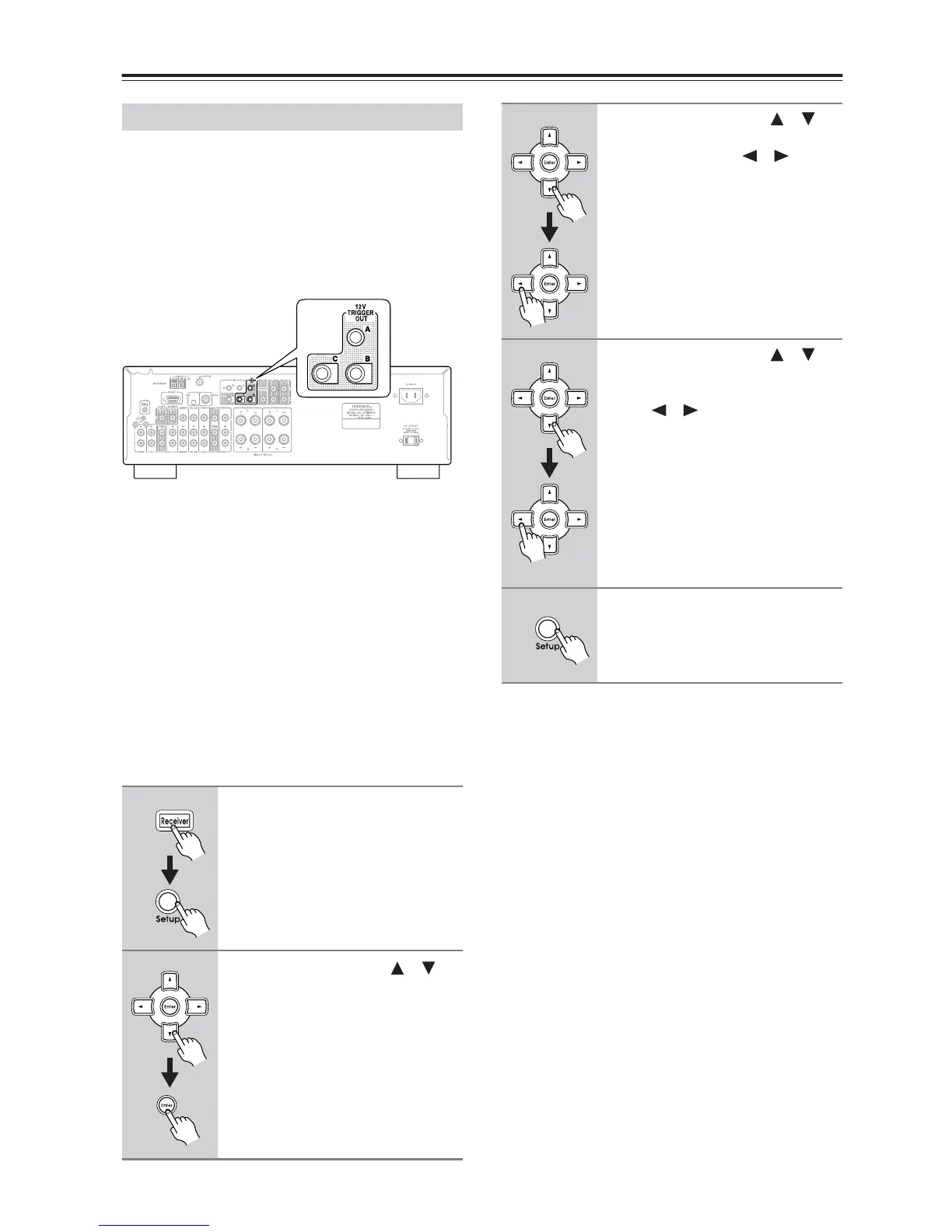

Zone 2—Continued
The 12V triggers A, B, and C can be used to turn on 12V
trigger-capable components automatically when they are
selected as the input source. The triggers can be set so
that they activate when a connected component is
selected as the input source for the main room or Zone 2.
When triggered, the output from a 12V TRIGGER OUT
goes high (+12 volts, 100 milliamperes max).
Hookup
• Use a miniplug cable to connect the receiver’s 12V
TRIGGER OUT A, B, or C jack to the 12 V trigger
input on a connected component.
When several components are turned on simultaneously
by using triggers A, B, and C, depending on the type of
components, a large amount of current may be drawn
momentarily. To prevent this, you can delay trigger sig-
nals A, B, and C individually. Another application for
trigger delay is eliminating the “thump” noise that’s
sometimes heard when a source component is turned on.
Delaying the trigger signal for your power amplifier so
that it’s the last component to be turned on will accom-
plish this.
Using the 12V Triggers
1
Press the [Receiver] Remote
Mode button, followed by the
[Setup] button.
The setup menu appears in the display.
2
Use the Up and Down [ ]/[ ]
buttons to select “12V Trigger A,”
“12V Trigger B,” or “12V Trigger
C,” and then press [Enter].
3
Use the Up and Down [ ]/[ ]
buttons to select “Delay,” and use
the Left and Right [ ]/[ ] but-
tons to select: 0 sec, 1 sec, 2 sec,
or 3 sec.
When 0 sec is selected, the trigger sig-
nal is output as soon as the input source
is changed.
4
Use the Up and Down [ ]/[ ]
buttons to select an input
source, and use the Left and
Right [ ]/[ ] buttons to select
an option.
Off: No trigger signal is output.
A 12-volt trigger signal is output when
the connected component is selected as
the source for:
Main: Main room.
Zone2: Zone 2.
Main/Z2: Main room or Zone 2.
5
When you’ve finished, press the
[Setup] button.
Setup closes.
