18

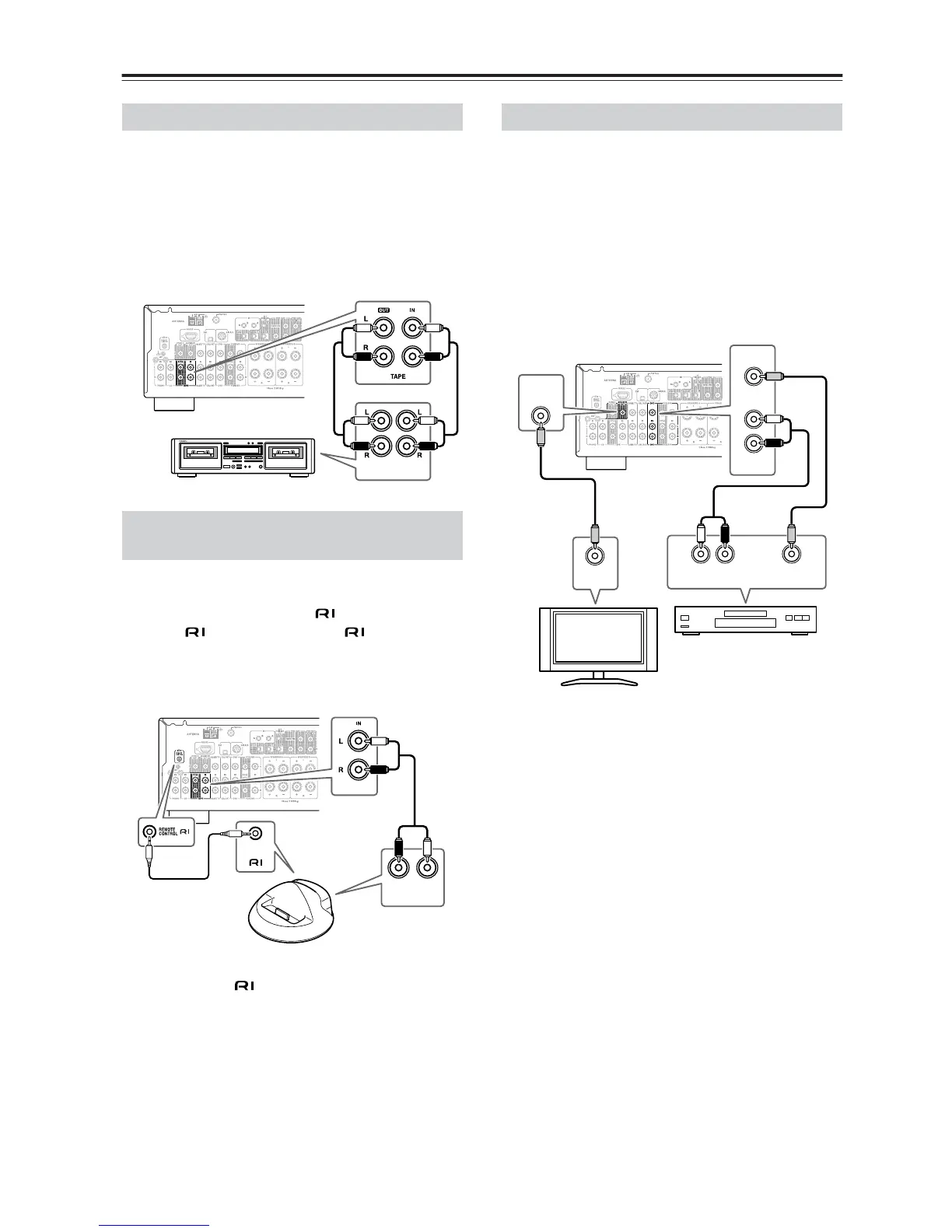

Connecting Your Components—Continued
To connect recording components, such as cassette deck,
MD recorder and CD recorder, use an analog audio cable
to connect the receiver’s TAPE IN L/R jacks to the
cassette deck’s analog audio output jacks, and use
another analog audio cable to connect the receiver’s
TAPE OUT L/R jacks to the cassette deck’s analog audio
input jacks, as shown.
Use an analog audio cable to connect the TAPE IN L/R
or VCR/DVR IN L/R jacks to the RI Dock’s analog
audio output jacks. Then use an cable to connect the
receiver’s jack to the RI Dock’s jack, as shown.
When you change the input display name to “HDD,” you
can operate the RI Dock using the remote controller
supplied with the receiver (see page 21).
Note:
Set the RI Dock’s MODE switch to HDD or
HDD/Dock.
Use an analog audio cable to connect the DVD IN L/R
jacks to the analog audio output jacks on the DVD
player, and use a video cable to connect the DVD IN V
jack to the composite video output jack on the DVD
player.
Then, connect the MONITOR OUT jack to a composite
video input jack on the TV.
You can select the video and sound from the DVD player
simultaneously by pressing the DVD input selector
button.
Connecting a Recording Component
Connecting a Remote Interactive
Dock (RI Dock)
(IN)
REC
(OUT)
PLAY
/
R
AUDIO OUT
-
-
-
-
L
TAPE
Remote Interactive
Dock
Connecting a DVD Player
DVD
MONITOR
OUT
AUDIO
OUT
VIDEO
OUT
LR
DVD
IN
L
V
V
R
VIDEO
IN
To Next Page
