Integra DTM-7.4 - Connecting an Audio Component

27
Connections

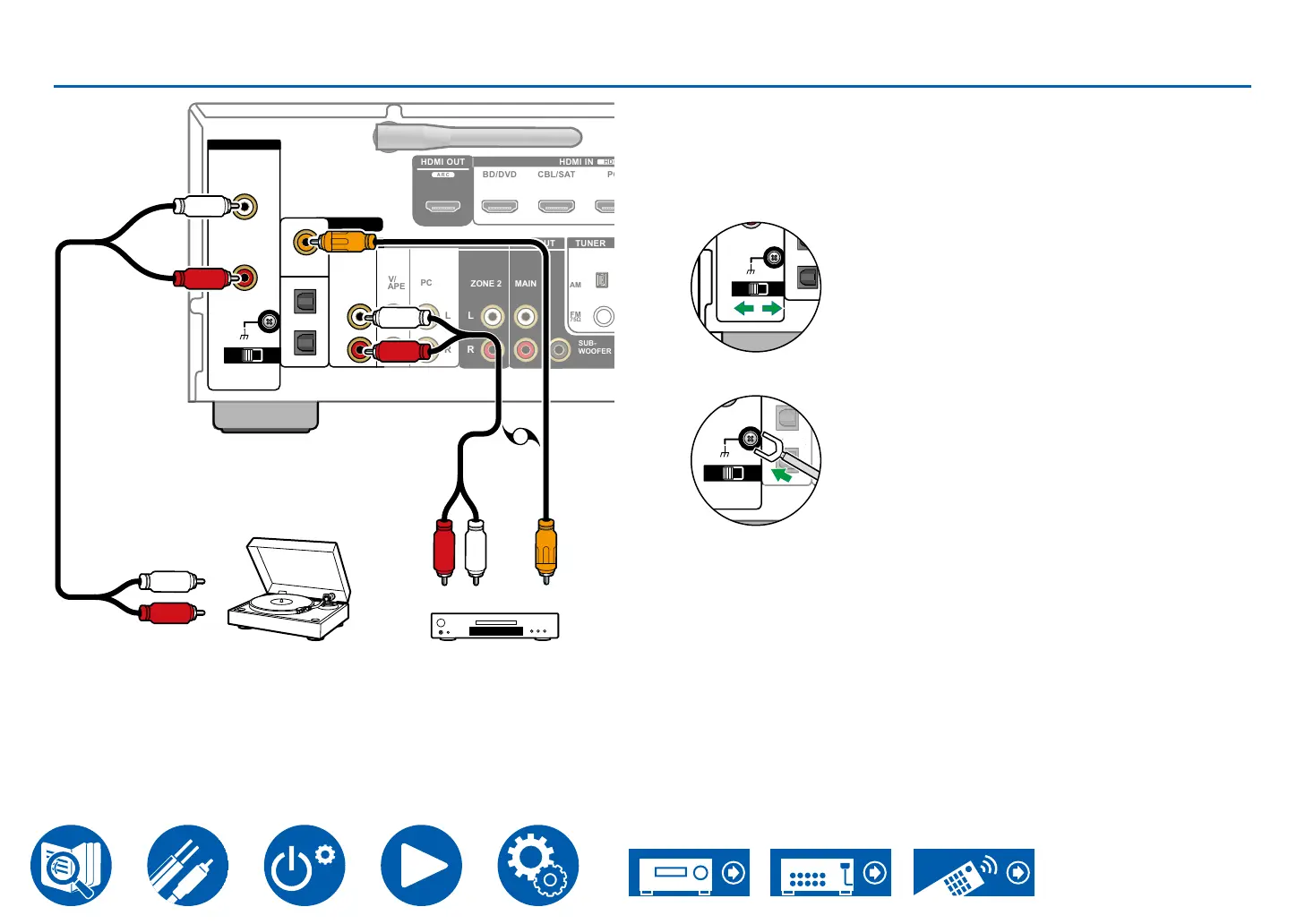

Connecting an Audio Component
This is a connection example of an audio component. Connect a CD player
using an analog audio cable. You can also connect a turntable that has an MM-
type or MC type cartridge to the PHONO jack.
• If the turntable has a built-in phono equalizer, connect it to any of the AUDIO
IN jacks other than the PHONO jack.
• Switch the MM/MC switch to suit the turntable cartridge type (MM or MC).
GAME
TV/TAPE
OPTICA
MM MC
GND
• If the turntable has a ground wire, connect it to the GND terminal of this unit.
R
GAME
TV/TAPE
OPTICAL
MM MC
GND
GA
TV/TAPE
OPTICAL
FM
75Ω
HDMI OUT HDMI IN
HDCP 2.3
BD/DVD CBL/SAT
PC
ARC
AUDIO IN
PHONO
L
R
CD
COAXIAL
GAME
TV/TAPE
OPTICAL
AUDIO IN
CD PC
TV/
TAPE
R
L
R
L
PRE OUT
ZONE 2 MAIN
MM MC
GND
DIGITAL IN
SUB-
WOOFER
AM
R
L
PRE/LINE OUT TUNER
OR
a
a b
Turntable CD player
a Analog audio cable, b Digital coaxial cable
