Connections
Connecting External Control Devices
IR IN/OUT port

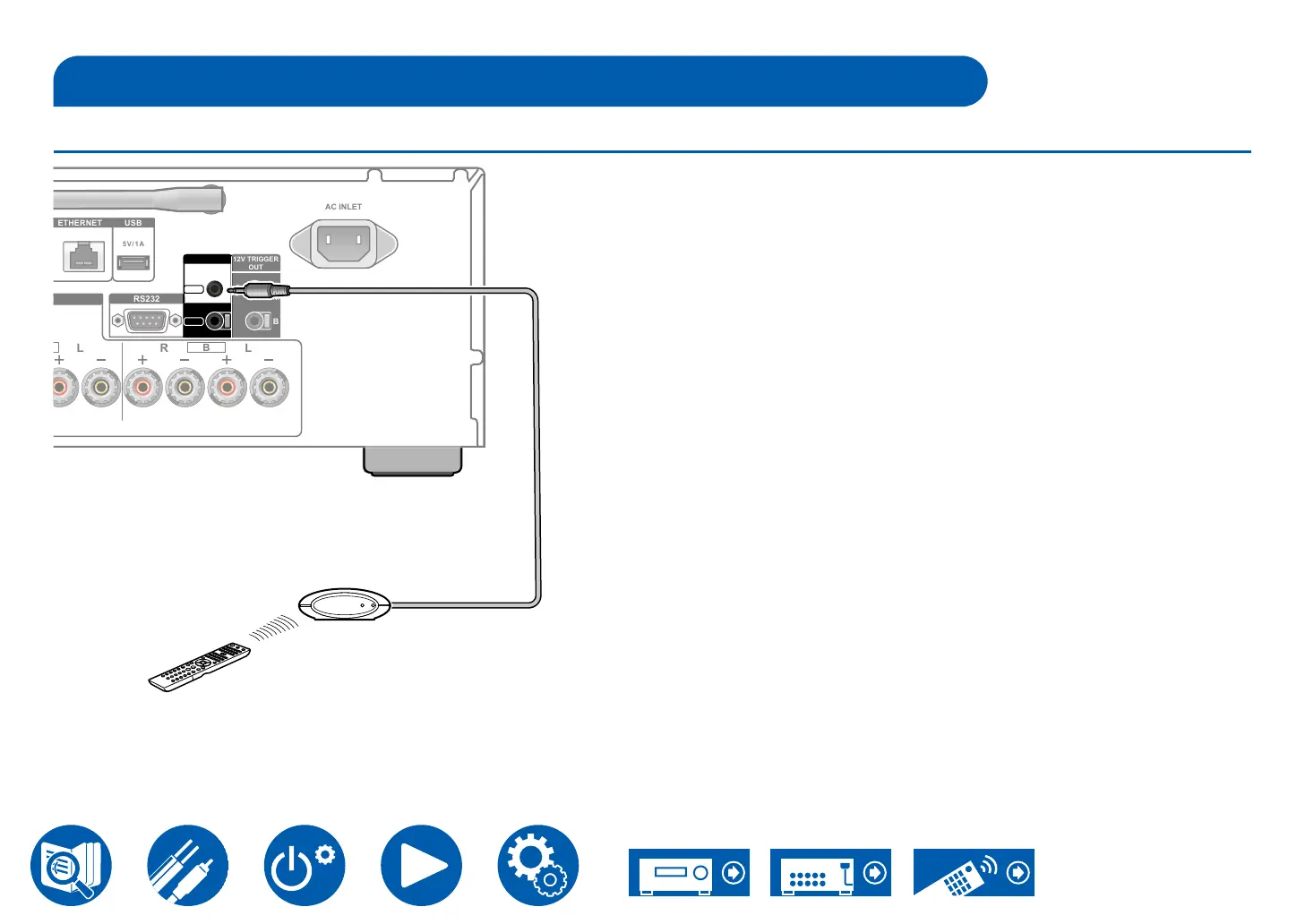

When connecting a remote control receiver unit consisting of an IR Receiver,
etc. to this unit, operation using the remote controller is possible even if the
󰀩
etc.). It is also possible to operate this unit from other room such as ZONE 2
with a remote controller, or operate other devices with the remote controller by
connecting other devices to this unit. For installing a remote control receiver unit,
contact the specialized stores.
• For the type of cable required for connection, refer to the operation manual,
etc. of the remote control receiver unit.
