Electrical
24 Design Guide

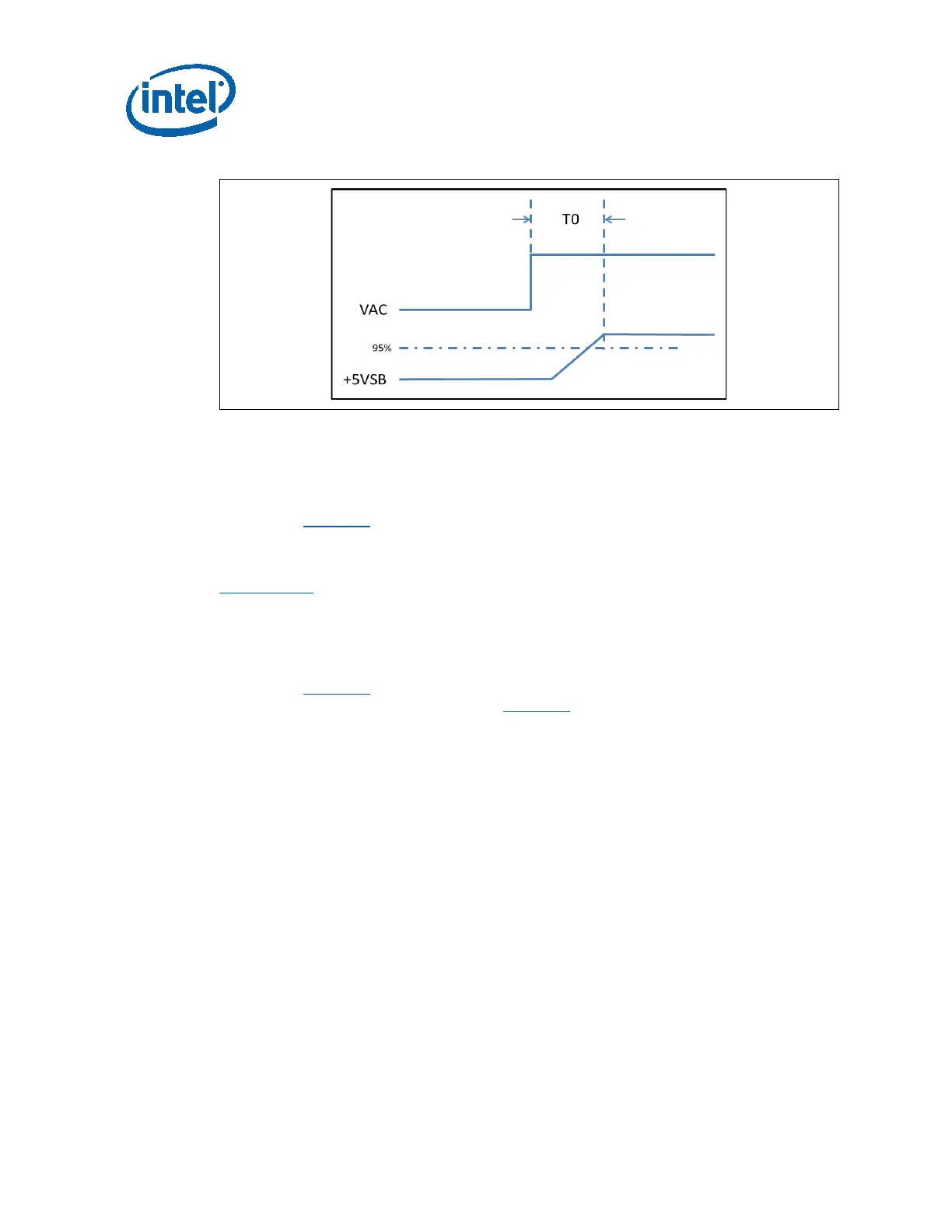

Figure 3-5: +5VSB Power on Timing Versus VAC
3.3.5 Power-On Time – Required
The power-on time is defined as the time from when PS_ON# is pulled low to when
the +12 VDC, +5 VDC, and +3.3 VDC outputs are within the regulation ranges
specified in Table 3-2
. The power-on time shall be less than 500 ms (T1 < 500 ms).
+5VSB shall have a power-on time of two second maximum after application of valid
AC voltages as shown in the above figure. The 5VSB power on time is T0 as listed in
Section 3.3.4
.
3.3.6 Rise Time – Required
The output voltages shall rise from 10% of nominal to within the regulation ranges
specified in Table 3-2
within 0.2 ms to 20 ms (0.2 ms ≤ T2 ≤ 20 ms). The total time
for Rise time of each voltage is listed in Table 3-8 as T2.
There must be a smooth and continuous ramp of each DC output voltage from 10% to
95% of its final set point within the regulation band, while loaded as specified.
The smooth turn-on requires that, during the 10% to 95% portion of the rise time, the
slope of the turn-on waveform must be positive and have a value of between 0 V/ms
and [Vout, nominal / 0.2] V/ms. Also, for any 5 ms segment of the 10% to 95% rise
time waveform, a straight line drawn between the end points of the waveform segment
must have a slope ≥ [Vout, nominal / 20] V/ms.
