SFX12V Specific Guidelines 3.43
Design Guide 55

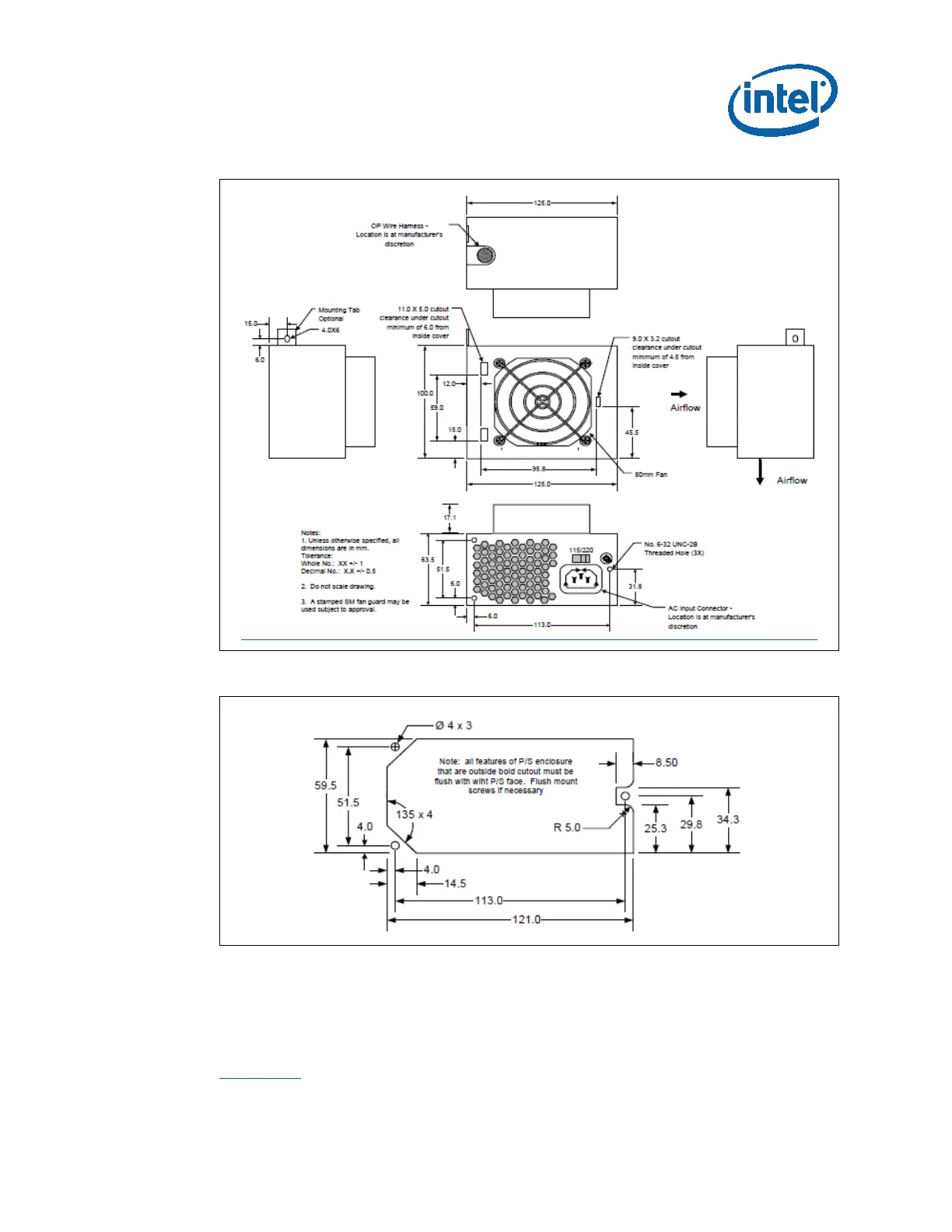

Figure 13-6: Reduced Depth Top Mount Fan Profile Mechanical Outline
Figure 13-7: Chassis Cutout
13.7 Standard SFX Profile Package – Physical
Dimensions - Required
The power supply shall be enclosed and meet the physical outline shown in
Figure 13-8
.
