TFX12V Specific Guidelines 2.53
Design Guide 61

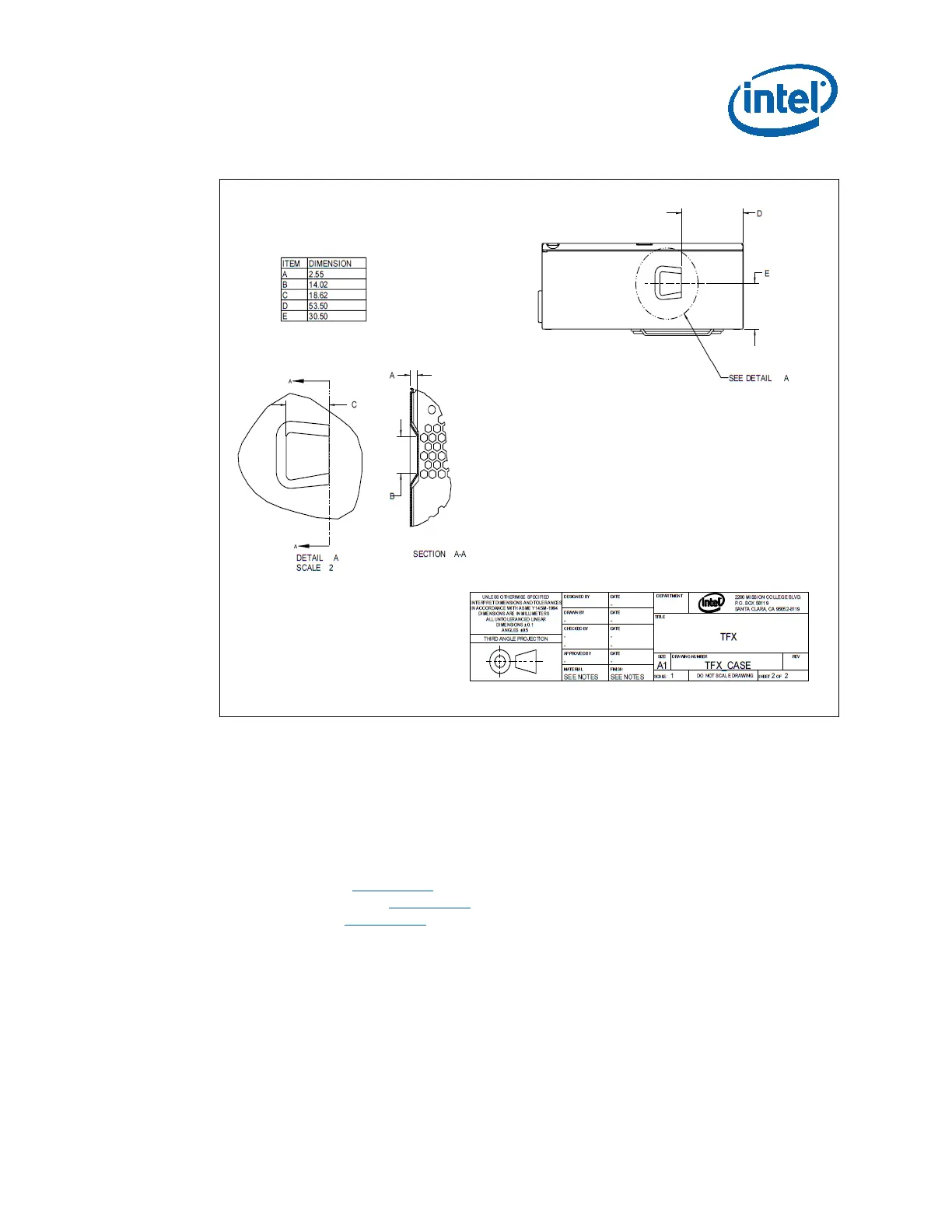

Figure 14-3: Power Supply Mounting Slot Detail
14.2 Mounting Options - Recommended
The TFX12V mechanical design provides two options for mounting in a system chassis.
The unit can be mounted using one of the mounting holes on the front end (non-
vented end) or a chassis feature can be designed to engage the slot provided in the
bottom of the supply. In order to accommodate different system chassis layouts, the
TFX12V power supply is also designed to mount in two orientations (fan left and fan
right) as shown in Figure 14-4
. A mounting hole and slot should be provided for each
orientation as shown in Figure 14-2. Details of a suggested geometry for the mounting
slot are shown in Figure 14-3.
