SFX12V Specific Guidelines 3.43
56 Design Guide
13.8 Fan Requirements - Required
The fan will draw air from the computer system cavity pressurizing the power supply
enclosure. The power supply enclosure shall exhaust the air through a grill located on
the rear panel. Refer to Figure 13-9
. The movement of the fan to the computer system
cavity is to help limit the acoustic noise of the unit.
The fan will be 60 mm.

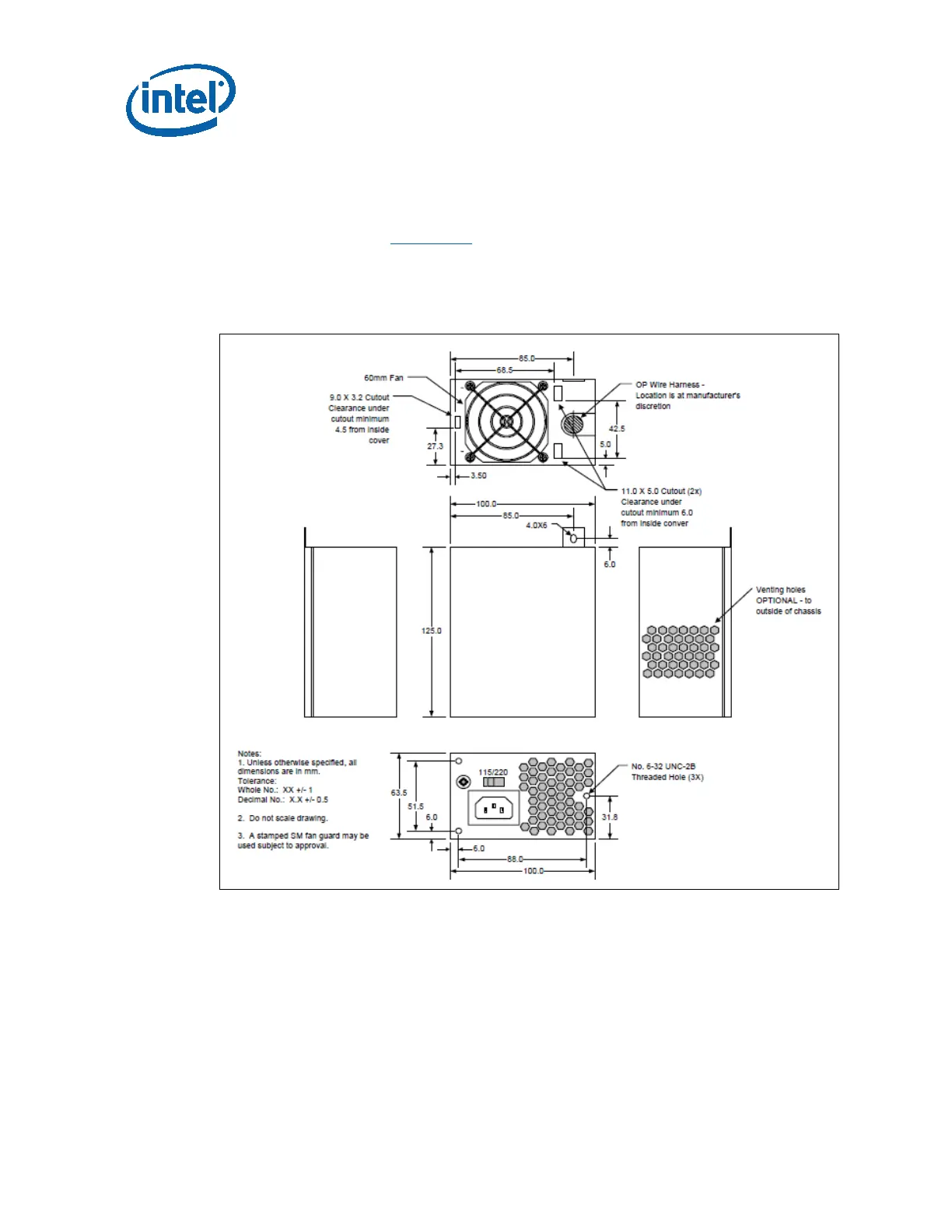

Figure 13-8: 60 mm Mechanical Outline
