SFX12V Specific Guidelines 3.43
54 Design Guide

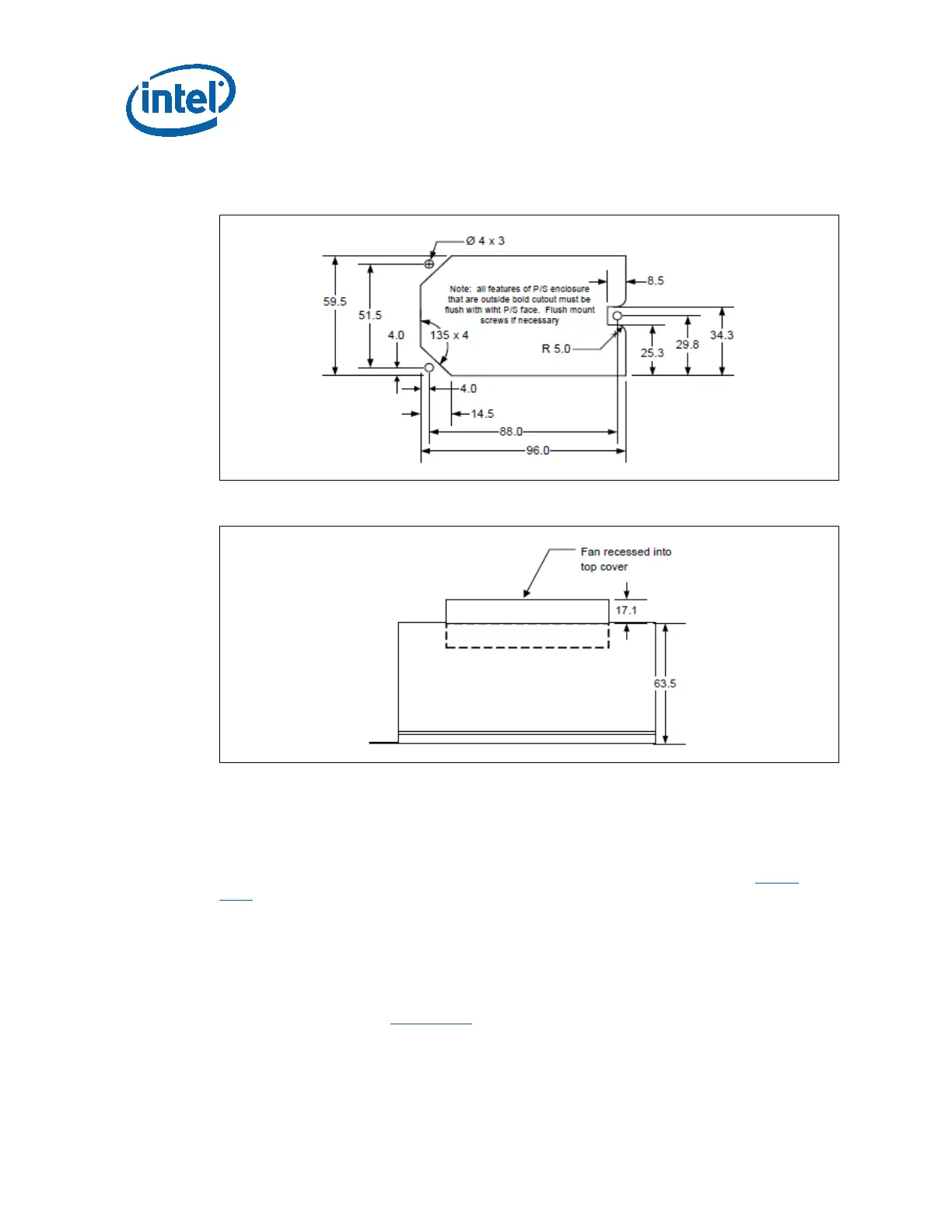

Figure 13-4: Chassis Cutout
Figure 13-5: Recessed Fan Mounting
13.5 Reduced Depth Top Mount Fan - Physical
Dimensions - Required
The power supply shall be enclosed and meet the physical outline shown in Figure
13-6.
13.6 Fan Requirements - Required
The fan will draw air from the computer system cavity pressurizing the power supply
enclosure. The power supply enclosure shall exhaust the air through a grill located on
the rear panel. Refer to Figure 13-7
. Moving the fan to the computer system cavity
helps to limit the acoustic noise of the unit.
The fan will be 80 mm.
