TFX12V Specific Guidelines 2.53
62 Design Guide

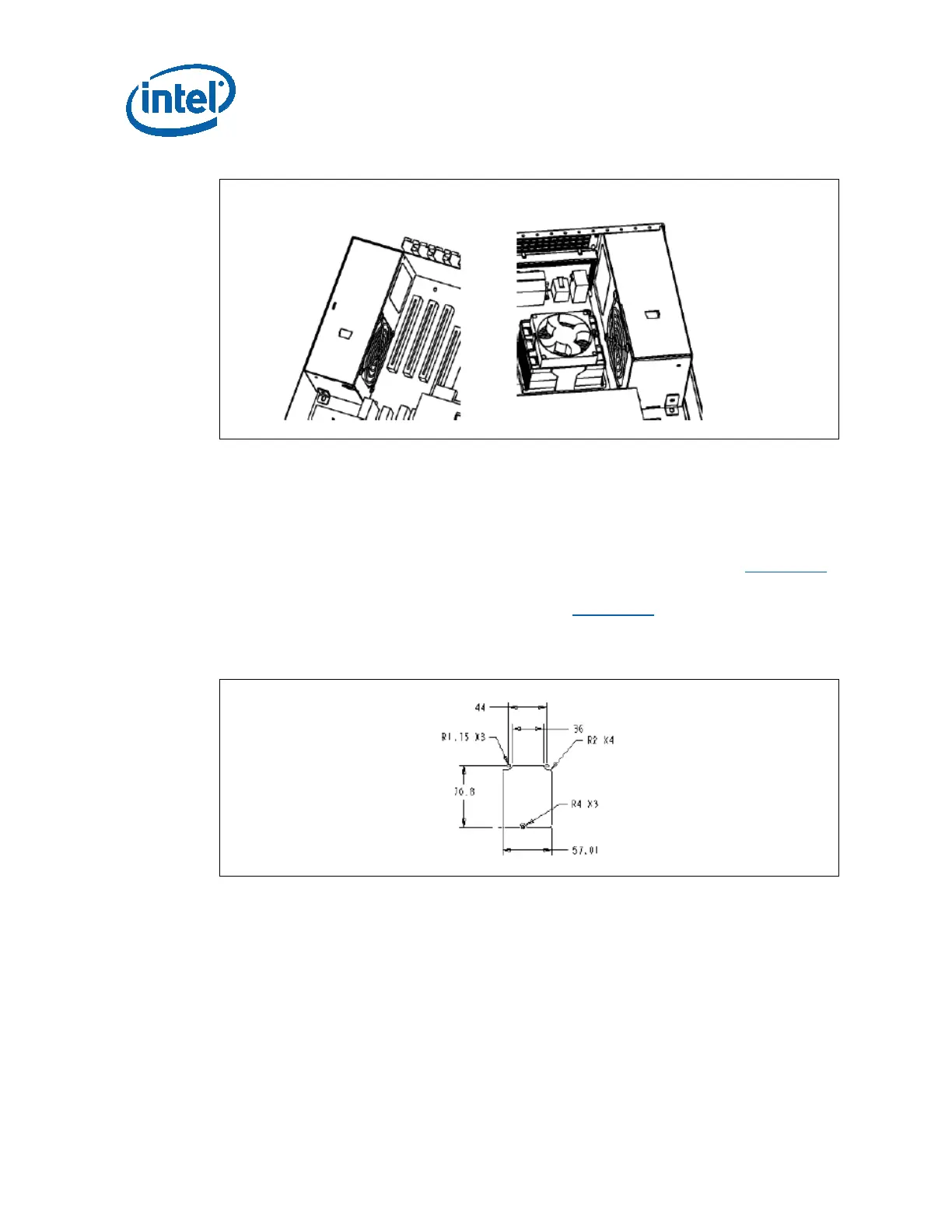

Figure 14-4: Fan Right and Fan Left Orientations of Power Supply in a Chassis
14.3 Chassis Requirements - Recommended
To ensure the power supply can be easily integrated, the following features should be
designed into a chassis intended to use a TFX12V power supply:
• Chassis cutout (normally in the rear panel of the chassis) as shown in Figure 14-5.
• EITHER a mounting bracket to interface with the forward mounting hole on the
power supply OR a mounting tab as shown in Figure 14-6
to interface with the
mounting slot on the bottom of the power supply.
Figure 14-5: Suggested TFX12V Chassis Cutout
