Mechanical
Design Guide 31
150 mm for all wire harnesses. Measurements are made from the exit port of the
power supply case to the wire side of the first connector on the harness.

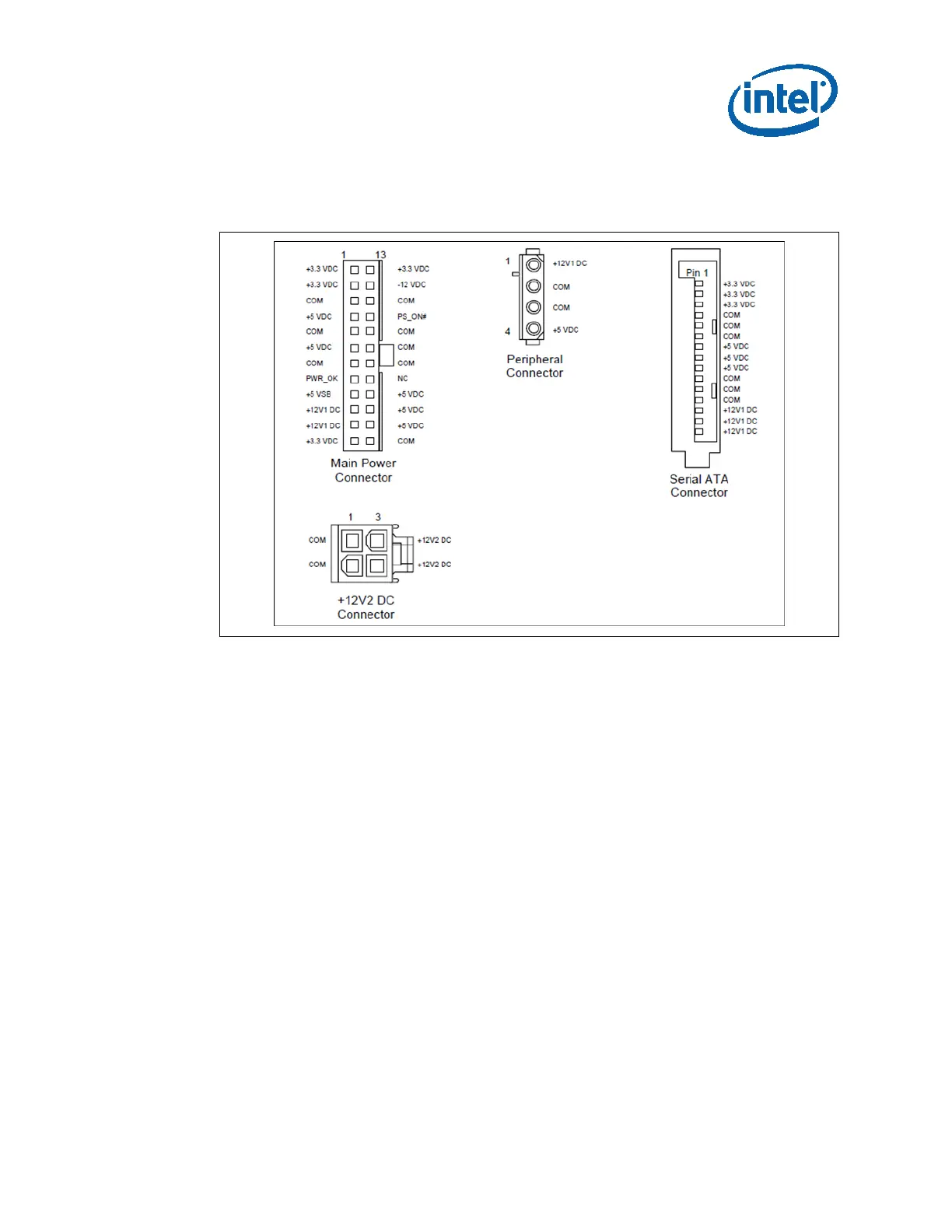

Figure 4-1: Connectors (Pin-side View, Not to Scale)
Note: Peripheral Connector is optional, does not show PCIe* Graphic Card Connector or 8 pin
12V2 connector.
4.2.2.1 Main Power Connector – Required
Connector: Molex* Housing: 24 Pin Molex Mini-Fit Jr. PN# 39-01-2240 or equivalent.
Contact: Molex* 44476-1112 (HCS) or equivalent (Mating motherboard connector is
Molex 44206-0007 or equivalent).
18 AWG is suggested for all wires except for the +3.3 V supply and sense return wires
combined into pin 13 (22 AWG).
