CFX12V Specific Guidelines 1.63
Design Guide 45
10 CFX12V Specific Guidelines 1.63
For Compact Form Factor with 12-volt connector power supplies.
All Form Factors Revision Summary:
PSU DG CFX12V LFX12V ATX12V SFX12V TFX12V Flex ATX
1.31 1.5 1.3 2.4 3.3 2.4 1.1
1.4 1.6 1.4 2.5 3.4 2.5 1.2
1.42 1.62 1.42 2.52 3.42 2.52 1.22
1.43 1.63 1.43 2.53 3.43 2.53 1.23
10.1 Physical Dimensions – Required
The power supply shall be enclosed and meet the physical outline shown.

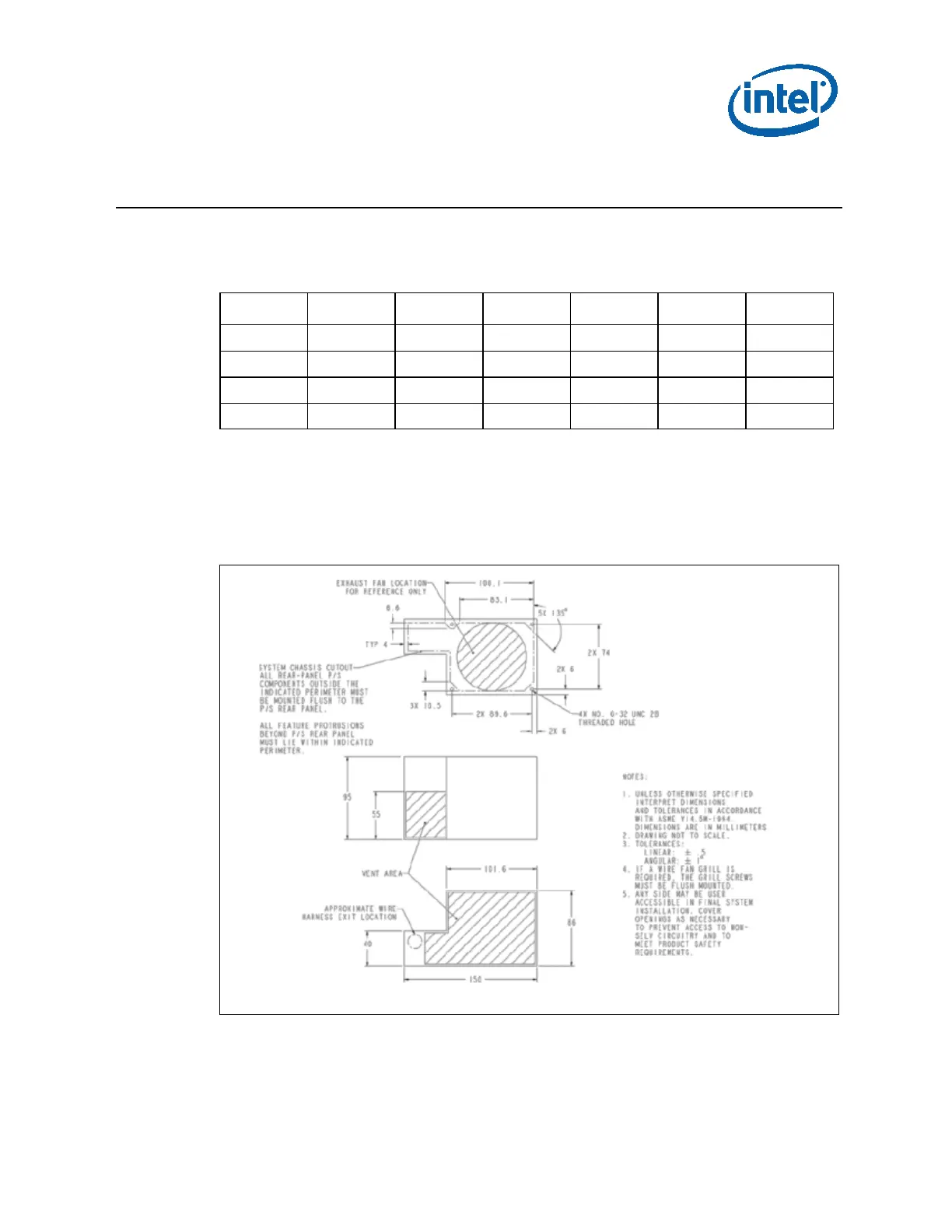

Figure 10-1: CFX12V Mechanical Outline
§ §
