Therefore, this connector is only required on PSU that are greater than 450 Watts. It
is optional on PSU that is equal to or less than 450 Watts.
Table 5-3: Extra Board Connector – Required vs. Optional
Rated PSU Size Required vs. Optional
≤450 Watts
Optional
>450 Watts
Required
This connector has the same mechanical and electrical characteristics as the PCIe*
2x3 Auxiliary Power Connector, detailed in Section 5.2.2.4.1.
Table 5-4: Extra Board Power Connector 6 Pin Connector Pinout
Pin Signal Color
1
Pin Signal Color
1
1
+12V1 Yellow
4
COM Black
2
+12V1 Yellow
5
COM Black
3
+12V1 Yellow
6
COM Black
NOTE:
18 AWG wire.

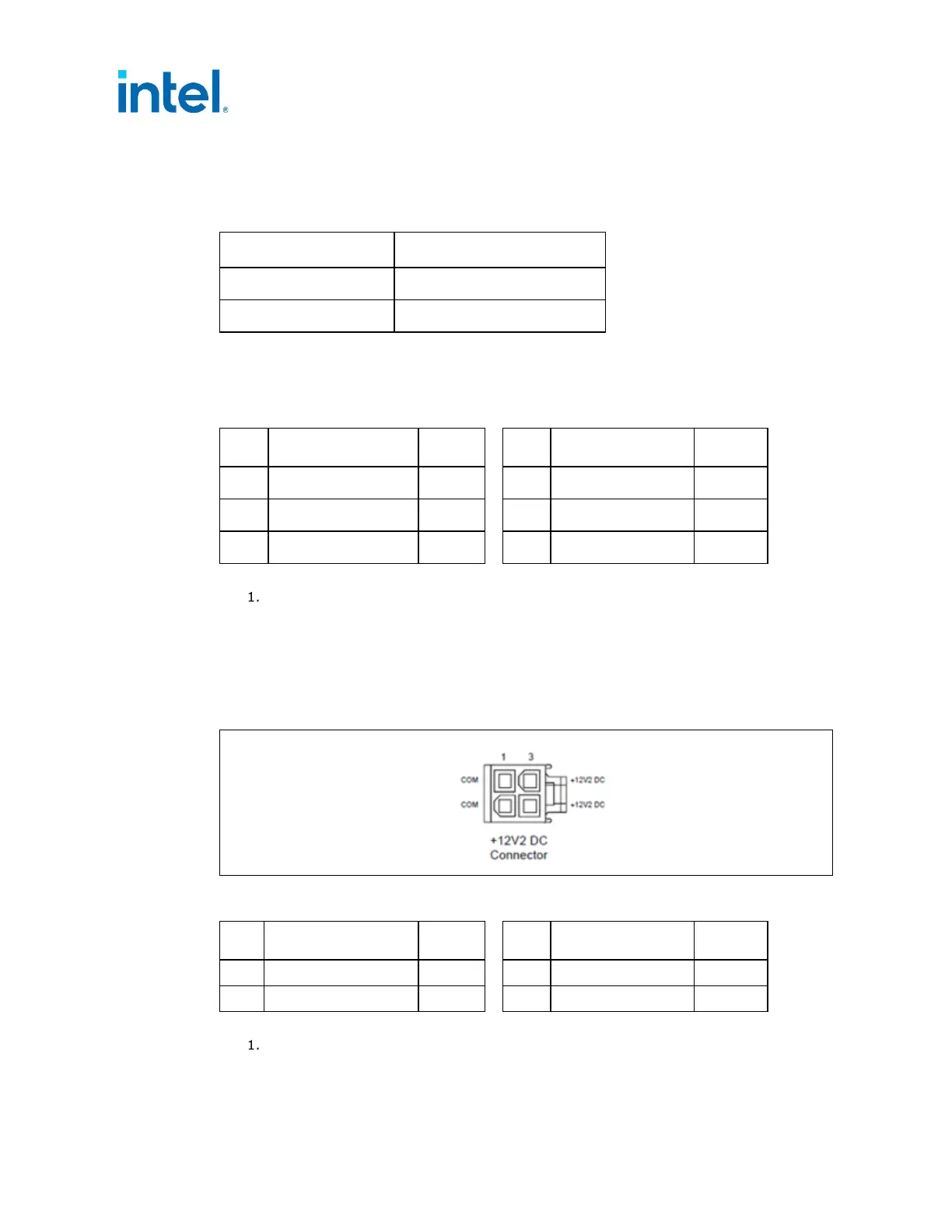

5.2.2.3 +12V CPU Power Connector (Required)
Connector: Molex* 0039012040 or equivalent.
Contact: Molex* 44476-1112 (HCS) or equivalent (Mating motherboard connector is
Molex 39-29-9042 or equivalent).
Table 5-5: +12V Power 4 pin Connector Pinout
Pin Signal Color
1
Pin Signal Color
1
1 COM Black 3 +12V2 DC Yellow
2 COM Black 4 +12V2 DC Yellow
NOTE:
18 AWG wire.
