Mechanical
64 613768

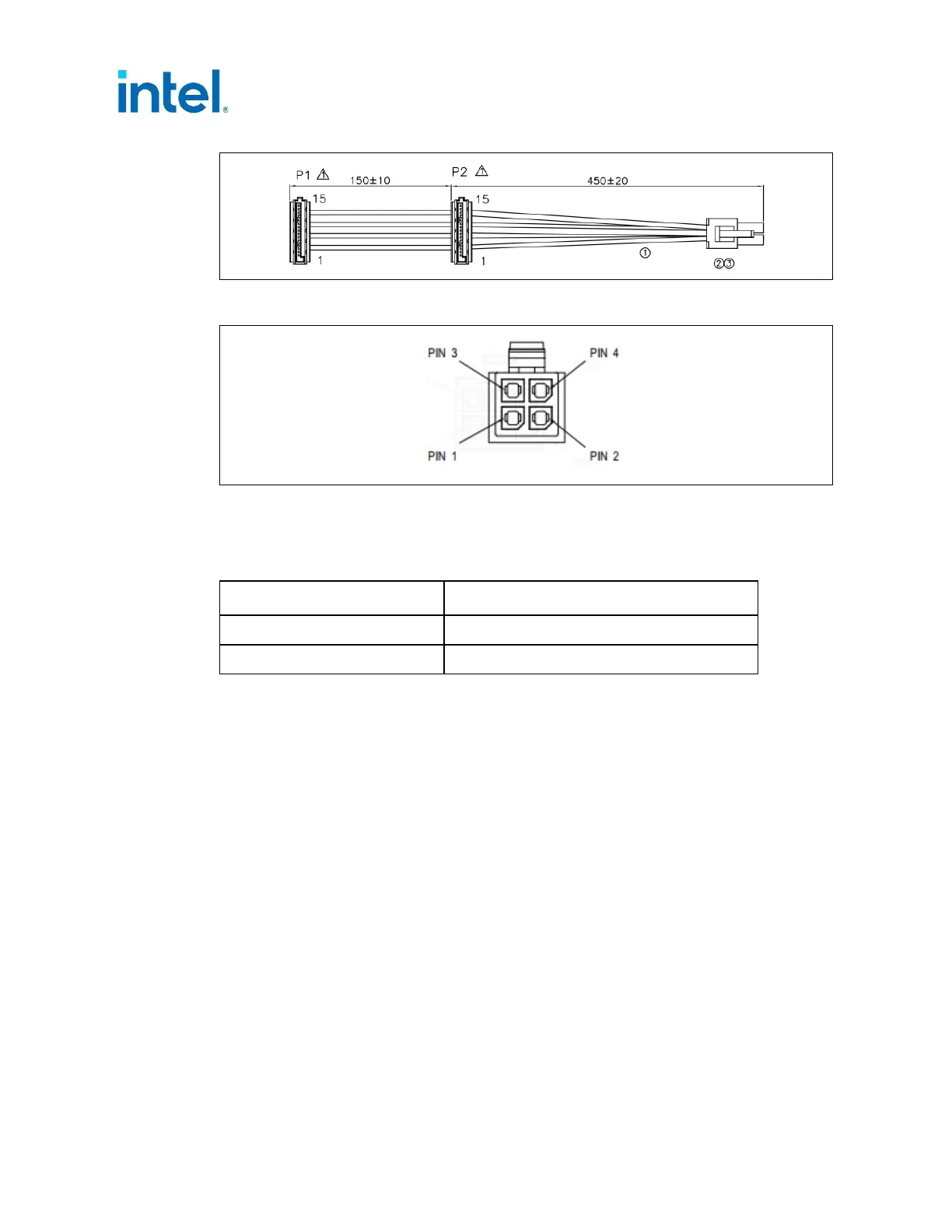

Figure 5-9: 3 mm SATA Power 4 Pin Cable Connector – Key and Pin Locations
SATA - 4 pin power cable that supports two SATA drives per cable is available from
the following companies.
Table 5-14: 2 SATA Power Cable Part Numbers
Company 2 SATA Drive Cable
JOINT TECH ELECTRONIC* W30050
Wieson* AB9980-0341-008-00
Other cable companies may also be able to manufacturer this cable. Work with your
preferred connector and cable company to verify if they can provide the SATA power
cable described in this document.
5.3.1.2 Supporting 4 SATA Drives with 6 Pin Connector Details
If a system designer needs to support more than 2 SATA devices per connector on the
board a 6-pin storage drive power connector is defined. With a total of 6 pins the
number of SATA devices that can be supports is 4 devices. The Micro Fit connector will
only support 5 amps per pin, because of that the 12V wire can only support 2 drives in
Series. To support more than 2 drives the cable would have to be in a “Y” shape with
2 drives on each leg of the “Y”. The 5V current is more than half of the 12V current
therefore the one 5V pin can be used to support 4 SATA devices.
Using the 6-pin motherboard connection with the key solutions provided below allows
both the 6 pin (2x3 – supporting 4 drives) and 4 pin (2x2 – supporting 2 drive) cables
to be plugged into the 6 pin (2x3) motherboard connector. Notice the 6-pin
motherboard connector latch is wider to support the latch from both the 4 pin (2x2)
and 6 pin (2x3) cable connector.
