Intel ATX12VO User Manual

Mechanical
613768 65
Table 5-15: 3 mm SATA Power 6 Pin Connector Part Numbers
Company
Motherboard Connector
Part Number
SATA Power Cable Connector
Part Number
Amphenol* 10157705-061B2GLF 10157706-06B20LF
Foxconn* HMHA030-L2G31-4G ---
JOINT TECH ELECTRONIC* C3030WVF-F-2X03PNLBM1N00B C3030HFF-2X03PN0BNPN00G
Lotes* APOW0042-P001A01 ABA-WAF-896-P01
Wieson* AC2211-0009-002-HH AB9001-0009-002-00
More connectors options may exist; Work with your preferred connector company to
verify if they can provide the connector described in this document.
Table 5-16: +12 V Power 6 Pin Connector Pinout
Pin #
Volts Color
Max Amp
Per SATA
HDD
Amp Per Conn Pin
to Support
3x SATA Devices
Amp Per Conn Pin
to Support
4x SATA Devices
1
GND Black 2.5 5 5
2
GND Black 1.02 3.06 4.08
3
GND Black - 2.5 5
4
12 Yellow 2.5 5 5
5
5 Red 1.02 3.06 4.08
6
12 Yellow - 2.5 5

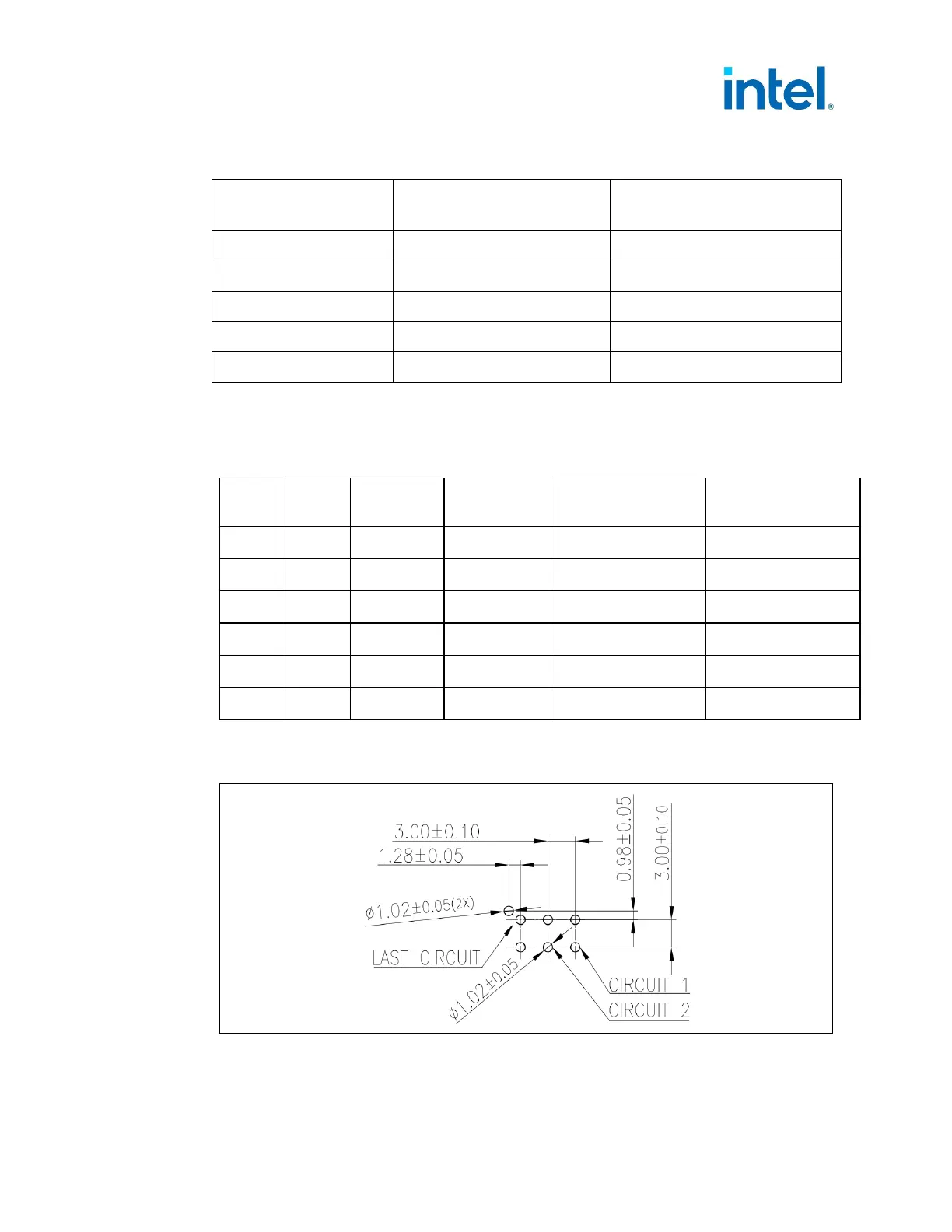

Figure 5-10: 3 mm SATA Power 6 Pin MB Header – Recommended PCB Layout (Top
Layer View)
