Intel ATX12VO - Standard SFX Profile Package - Physical Dimensions (Required); Fan Requirements (Required); Figure 14-7: SFX12 V Top Mount Fan, Inside Enclosure Mechanical Outline; Larger Fan)

101 pages

To Next Page

To Previous Page

SFX12V Specific Guidelines 4.0

613768 91

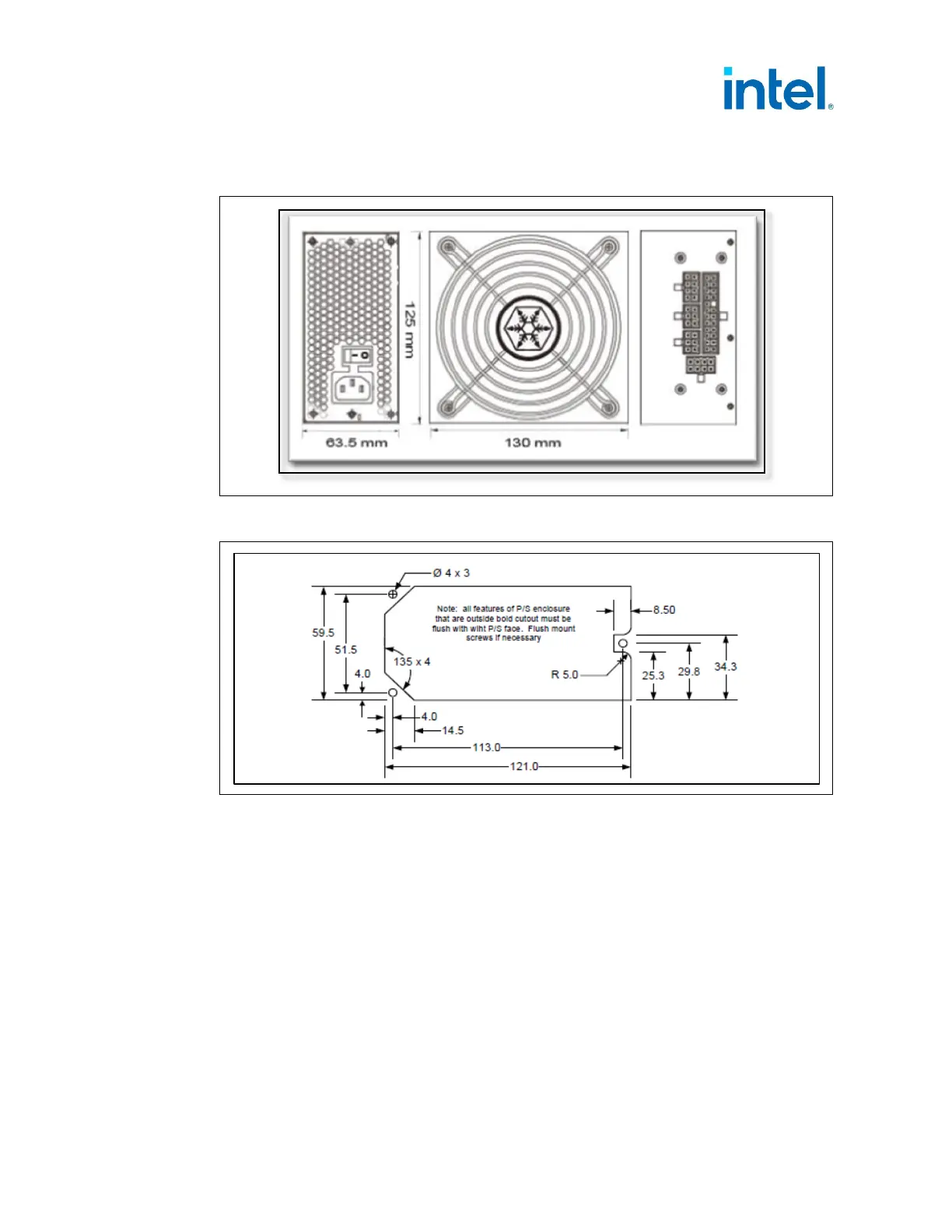

Figure 14-7: SFX12V Top Mount Fan, Inside enclosure Mechanical Outline (Possible

Larger Fan)

Figure 14-8: SFX12V Chassis Cutout

14.7 Standard SFX Profile Package – Physical

Dimensions (Required)

The power supply shall be enclosed and meet the physical outline shown in the above

figure.

14.8 Fan Requirements (Required)

The fan will draw air from the computer system cavity pressurizing the power supply

enclosure. The power supply enclosure shall exhaust the air through a grill located on

the rear panel. Refer to the below figure. The movement of the fan to the computer

system cavity is to help limit the acoustic noise of the unit.
