Intel ATX12VO User Manual

Mechanical
613768 61

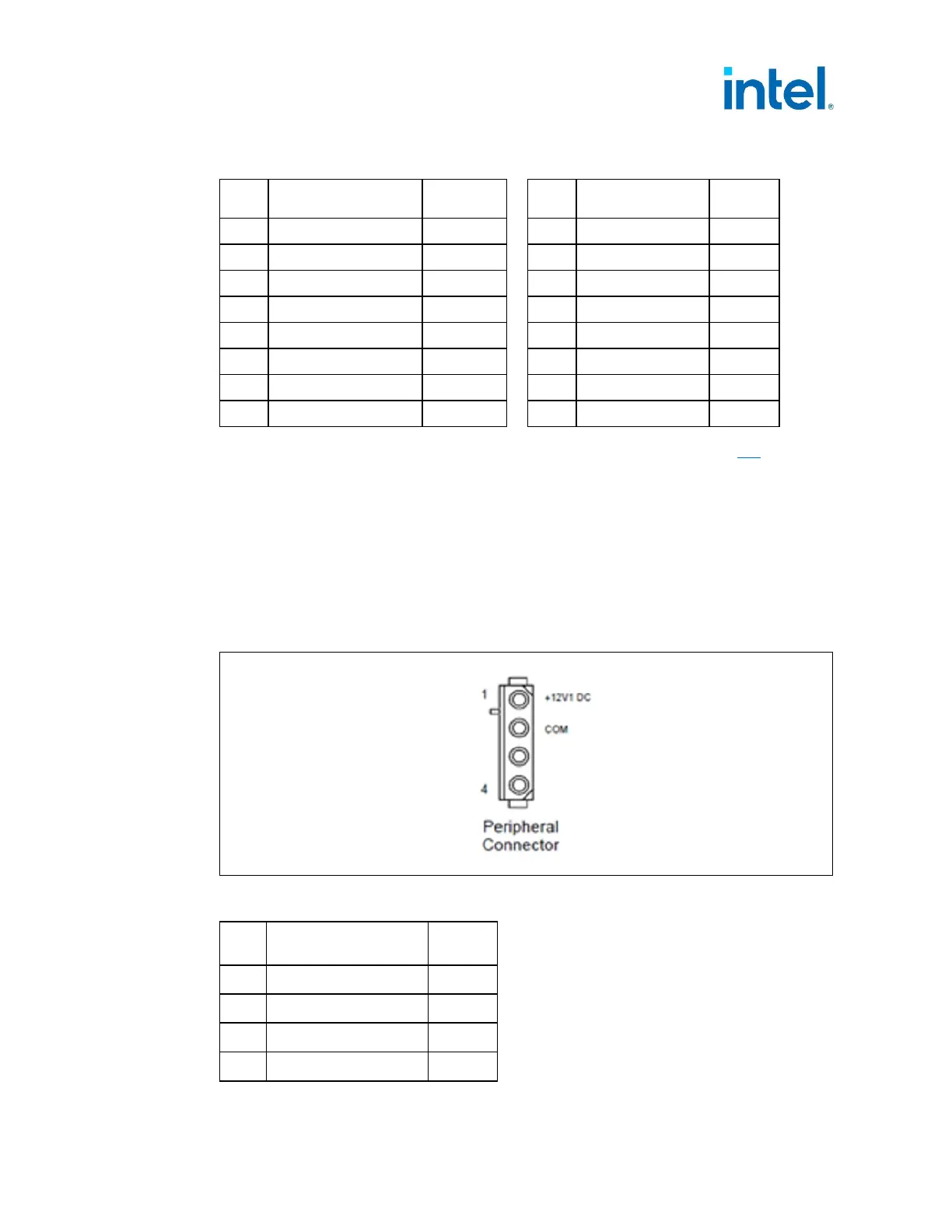

Table 5-10: PCIe* 12VHPWR Auxiliary Power Connector Pin Assignment (600 Watts)
Pin Signal Color
1
Pin Signal Color
1
1
+12V3/V4 Yellow
7
COM Black
2
+12V3/V4 Yellow
8
COM Black
3
+12V3/V4 Yellow
9
COM Black
4
+12V3/V4 Yellow
10
COM Black
5
+12V3/V4 Yellow
11
COM Black
6
+12V3/V4 Yellow
12
COM Black
S1
CARD_PWR_STABLE Blue
S3
SENSE0 Blue
S2
CARD_CBL_PRES# Blue
S4
SENSE1 Blue
The electrical function for the sideband pins S1- S4 is detailed in Section 3.3 of this
document.
5.2.2.5 Peripheral Connectors (Optional)
Recommended for PSU designed for High End Desktop and Gaming systems that
might need 12V power for Fans, LEDs, or Liquid Cooling pumps. Only populate pins 1
and 2.
Connector: AMP* 1-480424-0 or Molex* 15-24-4048 or equivalent.
Contacts: AMP* 61314-1 or equivalent.
Table 5-11: Peripheral Connector Pinout
Pin Signal Color
1
1 +12V1 DC Yellow
2 COM Black
3 No connect
4 No connect
