TFX12V Specific Guidelines 3.0

98 613768

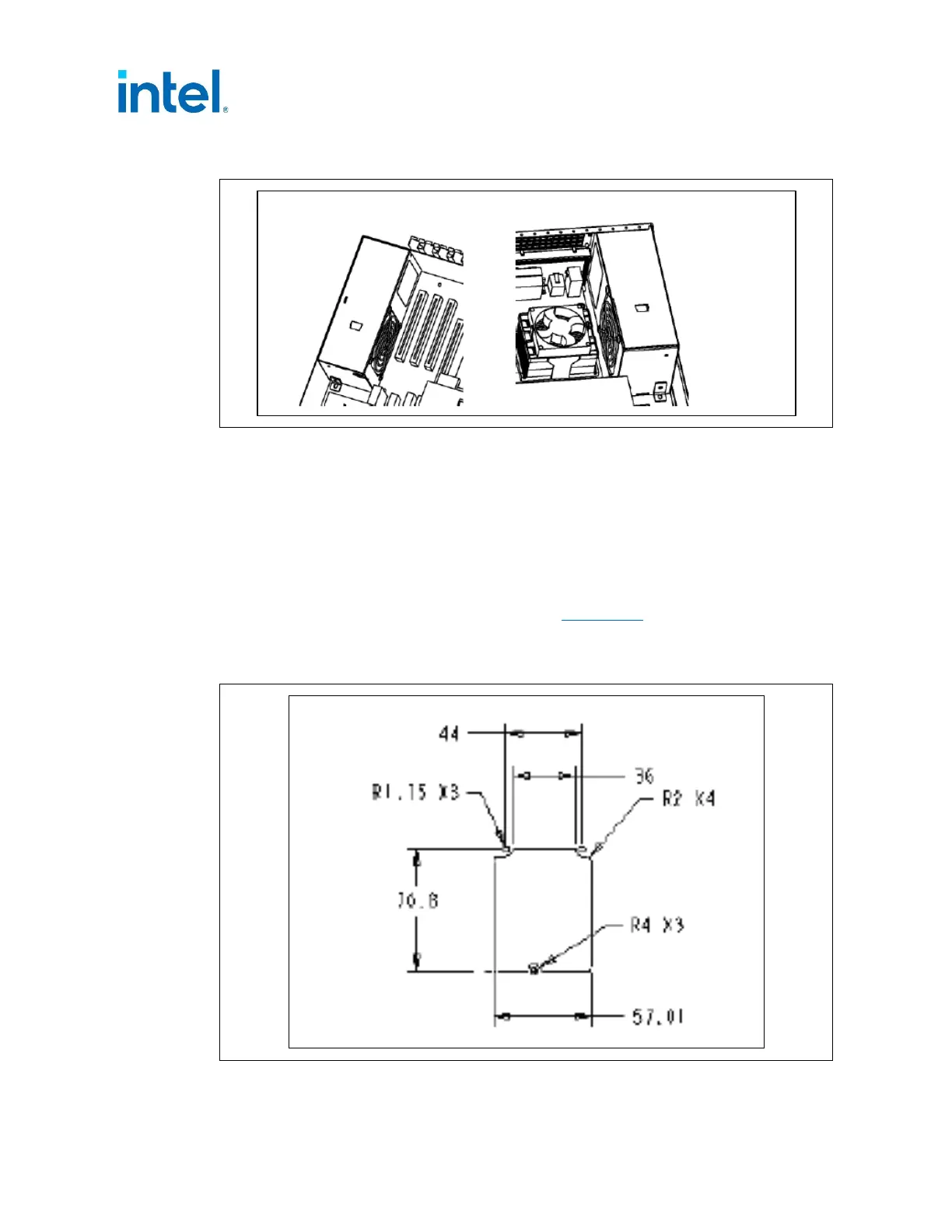

Figure 15-4: TFX12V Fan Right and Fan Left Orientations of Power Supply in Chassis

15.3 Chassis Requirements (Recommended)

To ensure the power supply can be easily integrated, the following features should be

designed into a chassis intended to use a TFX12V power supply:

• Chassis cutout (normally in the rear panel of the chassis) as shown in the figure

below.

• EITHER a mounting bracket to interface with the forward mounting hole on the

power supply OR a mounting tab as shown in Figure 15-6

to interface with the

mounting slot on the bottom of the power supply.

Figure 15-5: Suggested TFX12V Chassis Cutout
