Getting Started for Admin
Content Access Point
August 2015 User Manual
11
High off the floor.
Away from magnetic and large metal objects.
At least 3 feet (1 meter) from client devices.
2.5 Mounting

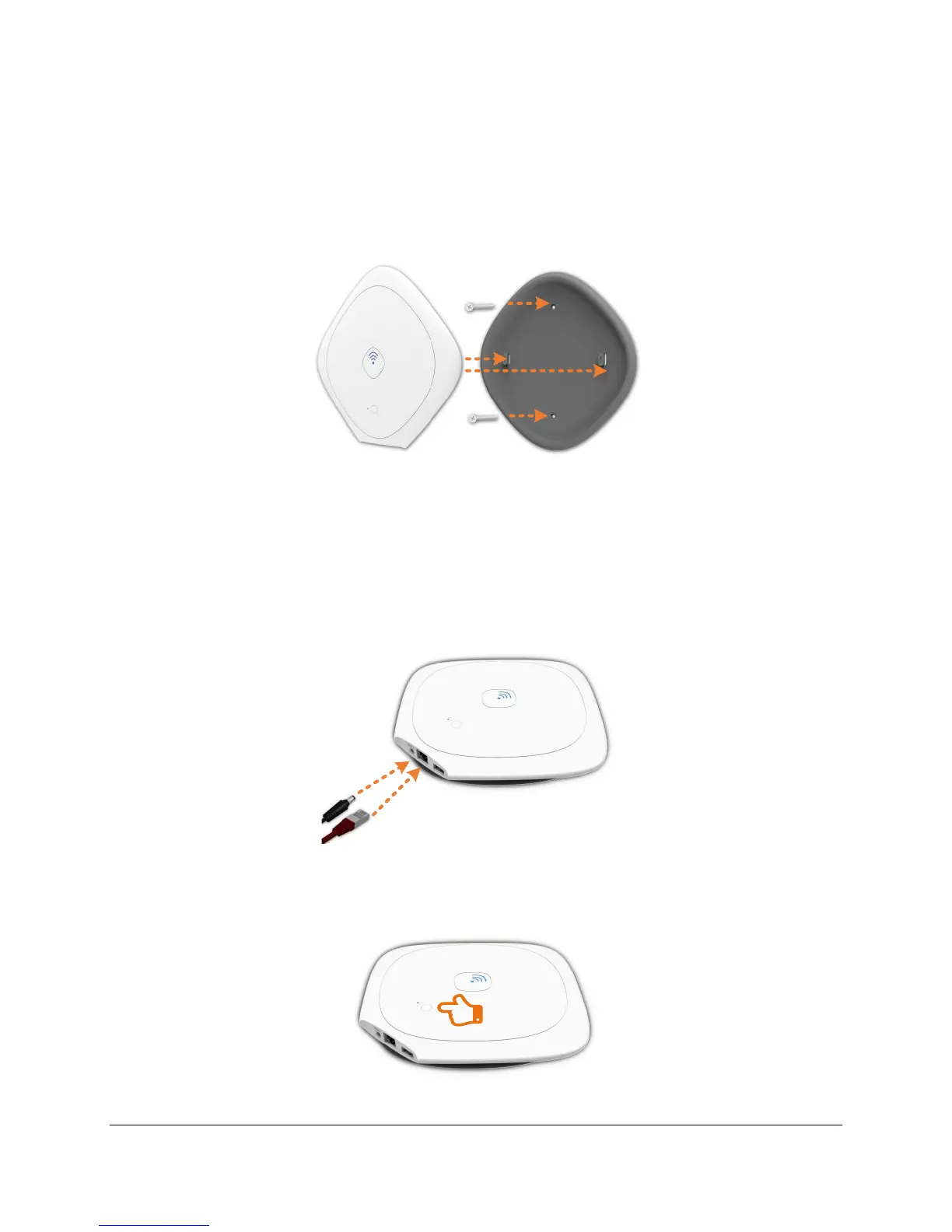

The Content Access Point comes with a mounting kit. To mount it, follow this diagram (Figure 4).
Figure 4: Mounting diagram
2.6 Setup
1. Connect the Content Access Point to a network (WAN) with an Ethernet cable. (See Figure 5.)
TIP! For 3G/4G/LTE cellular-based WAN connection, see 6.8.2 (Cellular-based WAN).
2. Connect the power supply.
Figure 5: Connect the cables
3. Power up the device by pressing and holding the power button for two seconds. (See Figure 6.)
Figure 6: Power button
