Intel
®
Ethernet Network Adapter E810-XXVDA4T
User Guide
38 646265-004
5.0 Configuration Setup
The E810-XXVDA4T provides two coaxial input-output SMA connectors, two unidirectional U.FL
connectors and an optional GNSS input connector, as shown in the following two illustrations.

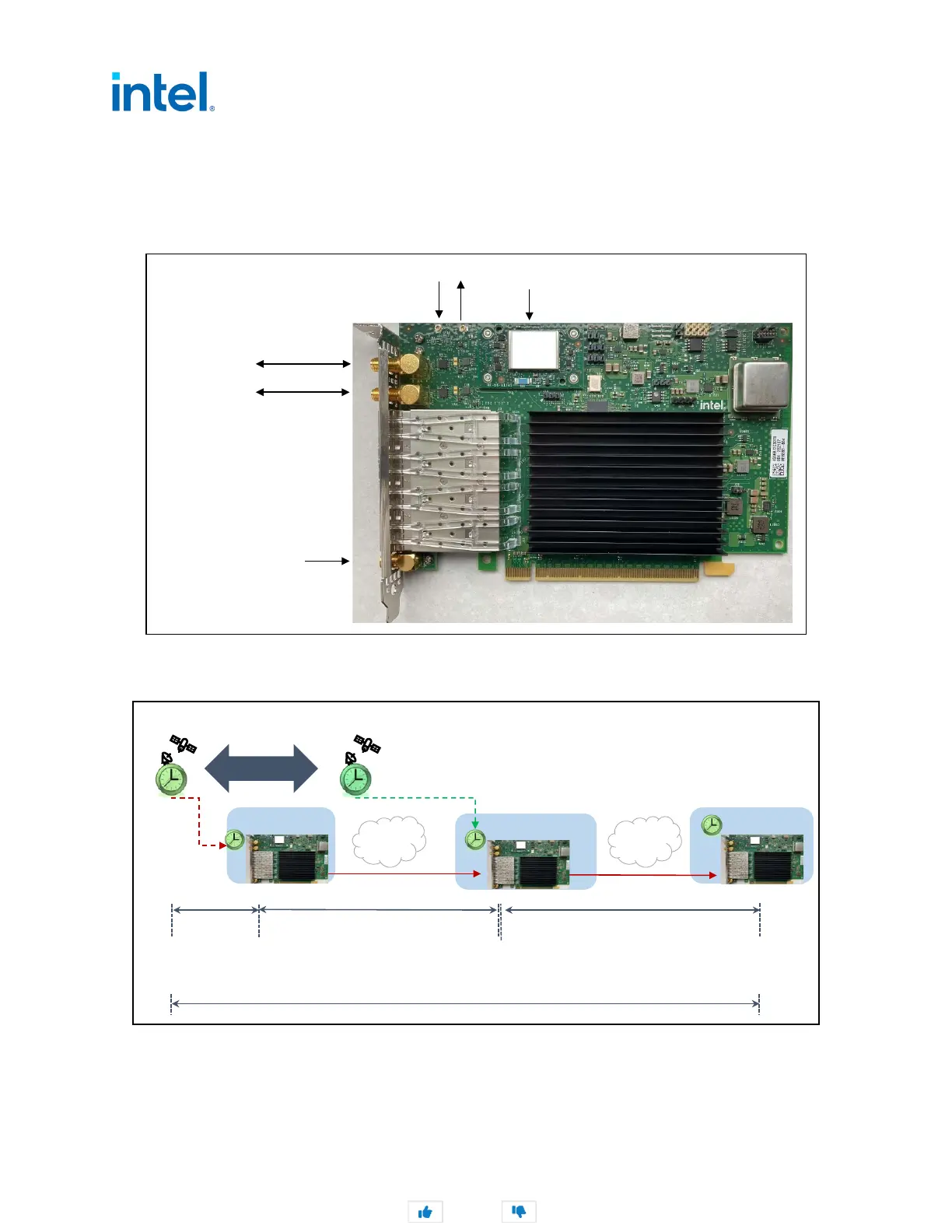

Figure 3. E810-XXVDA4T Connector Locations
Figure 4. E810-XXVDA4T Connections
SMA1
SMA2
U.FL2 U.FL1
GNSS Antenna (SMB)
Optional GNSS Module
ptp4l
port1
port2
Grand Server
RU
ptp4l
BBU (BC)
GNSS
ts2phc
GNSS connected to SMA or
onboard GNSS
Backhaul
network
Fronthaul
Backhaul
KPI: Phase Accuracy Target = f 100 ns
M
C
S
C
Opt.
Switches
Opt.
Switches
GNSS
Either
Fronthaul
network
