5.6.5 Two E810-XXVDA4T NICs Setup without GNSS and with 1PPS

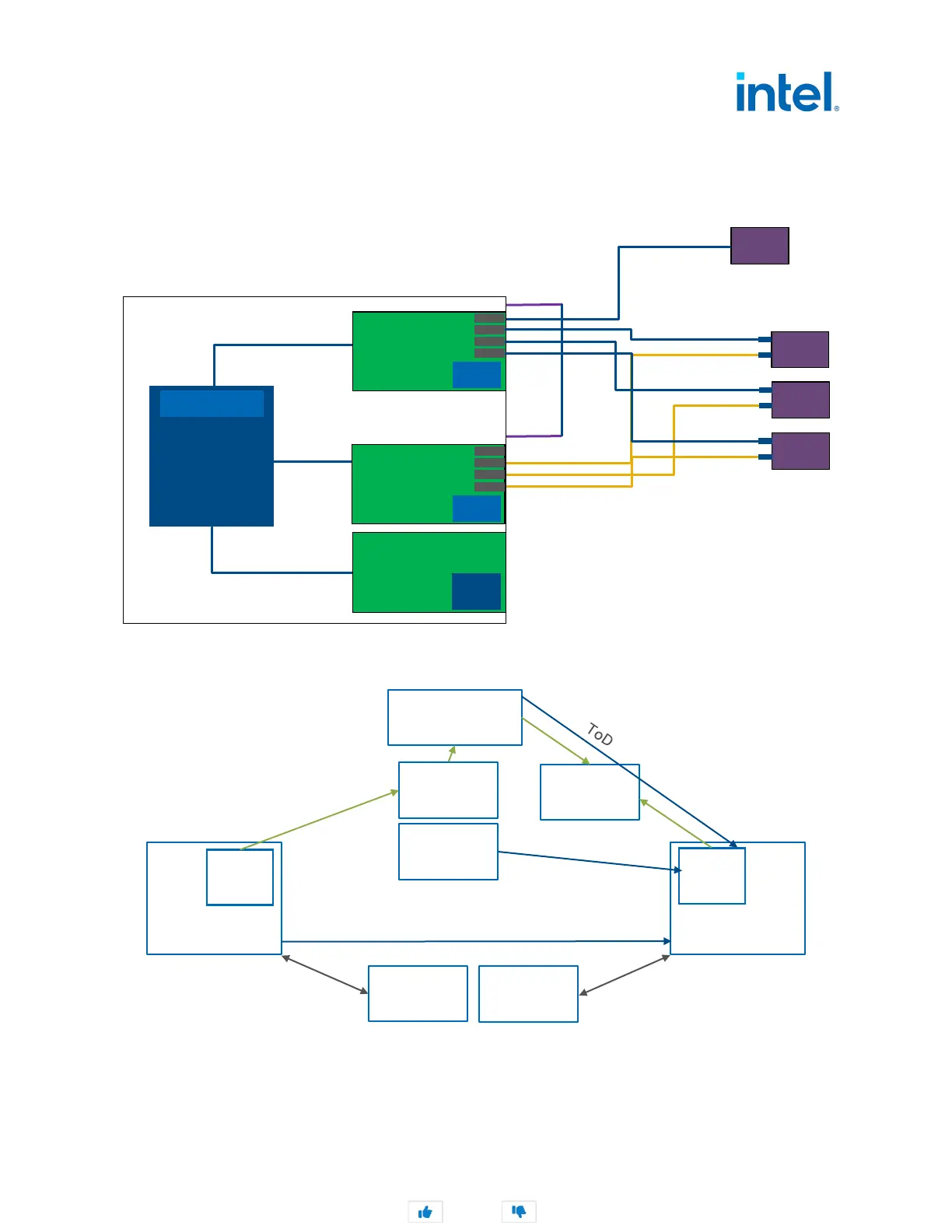

Figure 16 shows two E810-XXVDA4T in a system with a 1PPS connection between them.
Figure 16. External Connections: Two E810-XXVDA4T Configuration (no GNSS)
Figure 17. External Connections: Two E810-XXVDA4T Configuration Linux Software Stack
(no GNSS)
Server
E810-XXVDA4T
E810-XXVDA4T
Gen4 x8
Gen4 x8
Gen3 x16
MBC
Intel® vRAN
Accelerator ACC100
Adapter
PHC1
PHC2
3
rd
Generation
Intel® Xeon®
Scalable
Processor
System Clock
RU
F
F
L
F
L
L
RU
RU
F
F
F
F
L
F
L
L
U.FL/SMA 1PPS
U.FL/SMA 1PPS
GM
NIC1
ptp4l
phc2sys
System Clock
PHC1
Network
ts2phc
1PPS
phc_ctl
ptp4l
NIC2
PHC2
U.FL/SMA
U.FL/SMA
