5.2 PTP Grand Leader (GM) with Optional GNSS Module
This configuration is the highest-priority configuration and overrides any other if the GNSS is installed
and operational.
5.2.1 External Connections

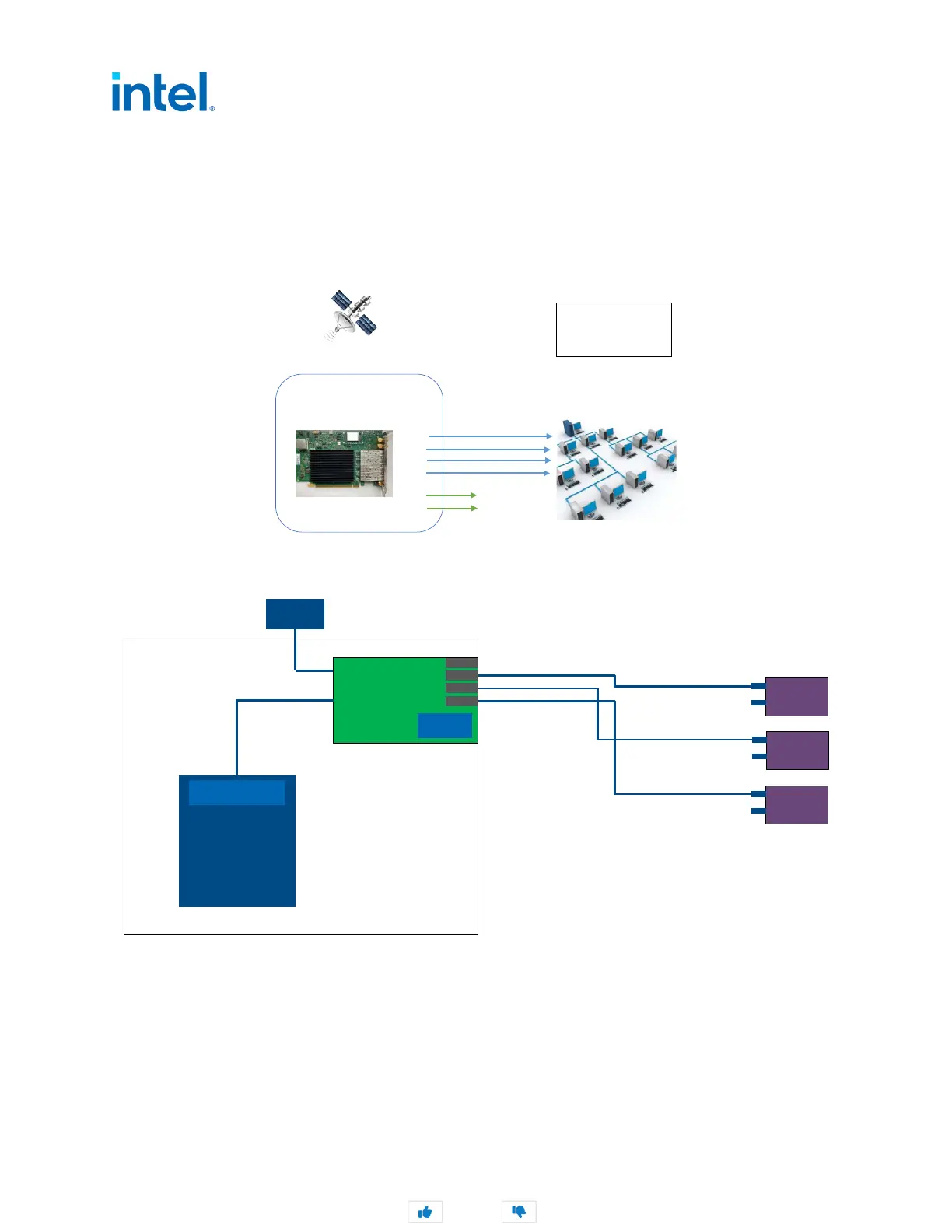

Figure 5. External Connections: PTP Grand Leader with Optional GNSS Module
Figure 6. External Connections: Single E810-XXVDA4T Configuration with GNSS
Red = 1pps always
Blue = ptp4l
Green = 1pps or off
Port0
Port1
Port2
Port3
SMA1
SMA2
U.FL1
U.FL2
Leader
E810-XXVDA4T
Server
3
rd
Generation
Intel® Xeon®
Scalable
Processor
E810-XXVDA4T
RU
Gen4 x8
F
L
F
L
L
RU
RU
F
F
GNSS
PHC
System Clock
