Chapter 1 – Overview
6

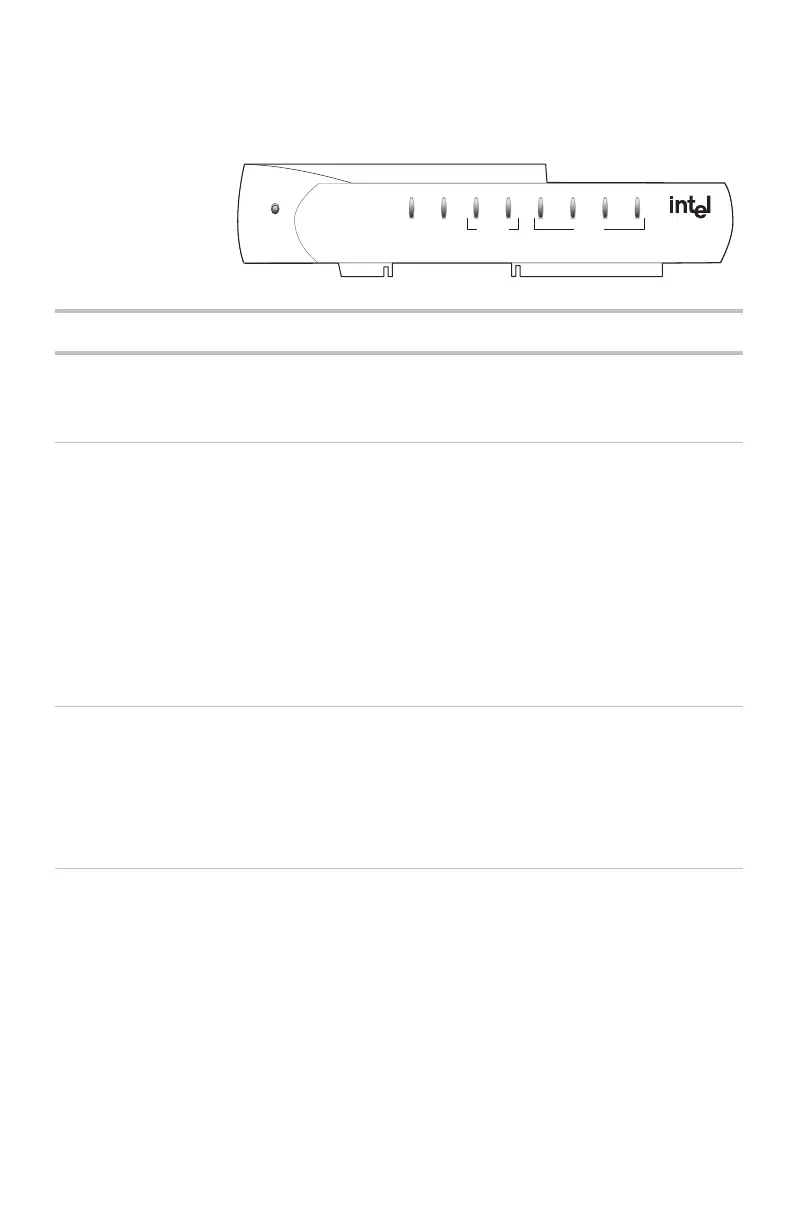

gateway's operational status. The lights are described
below, from left to right.
Wireless Gateway II
Ethernet
Wireless
Link Activity
InternetSystem
Power
123
4
LED
Description
Power On – The power cable is connected; the gateway has power.
Off – Check that the power cable connectors are securely in
place and plugged into a power source.
System On – This means the gateway is operating.
Off – If this LED is not on, push the Reset buttononthe
back.
Blinking – The Status light blinks whenever any of these reset
situations occur:
• YoupushtheReset button on the gateway’s back panel.
(Refer to Reset in the next table.)
• You click Reset on the System Tools screen in the
gateway configuration software.
Internet On – If you have a broadband modem attached to the
gateway’s Internet port, the light blinks periodically. It blinks at
a rate that corresponds to the amount of Internet traffic (slow
with little traffic and increasingly faster as Internet traffic
increases).
Off – No Internet connection detected.
Wireless Link Off – There are no wireless devices communicating with the
gateway.
Green solid – At least one wireless device is connected to the
gateway.
