Intel® Server Board S1200BT TPS Design and Environmental Specifications
Revision 1.0
Intel order number G13326-003
115
The output voltages must rise from 10% to within regulation limits (T
vout_rise
) within 5 ms
to 70 ms, except for 5 VSB, in which case it is allowed to rise from 1.0 ms to 25 ms.
The +3.3 V, +5 V, and +12 V output voltages should start to rise approximately at the
same time.
All outputs must rise monotonically.
The +5 V output must be greater than the +3.3 V output during any point of the
voltage rise.
The +5 V output must never be greater than the +3.3 V output by more than 2.25 V.
Each output voltage should reach regulation within 50 ms (T
vout_on
) of each other when
the power supply is turned on.
Each output voltage should fall out of regulation within 400 msec (T
vout_off
) of each other
when the power supply is turned off.
Figure 49 and Figure 50 shows the timing requirements for the power supply being turned on
and off via the AC input with PSON held low and the PSON signal with the AC input applied.
Table 52. Output Voltage Timing
Item
Description
Minimum
Maximum
Units
T
vout_rise
Output voltage rise time from each main output.
5.01
701
Msec
T
vout_on
All main outputs must be within regulation of each
other within this time.
50
Msec
T
vout_off
All main outputs must leave regulation within this
time.
700
Msec
Note:
1. The 5 VSB output voltage rise time should be from 1.0 ms to 25.0 ms.

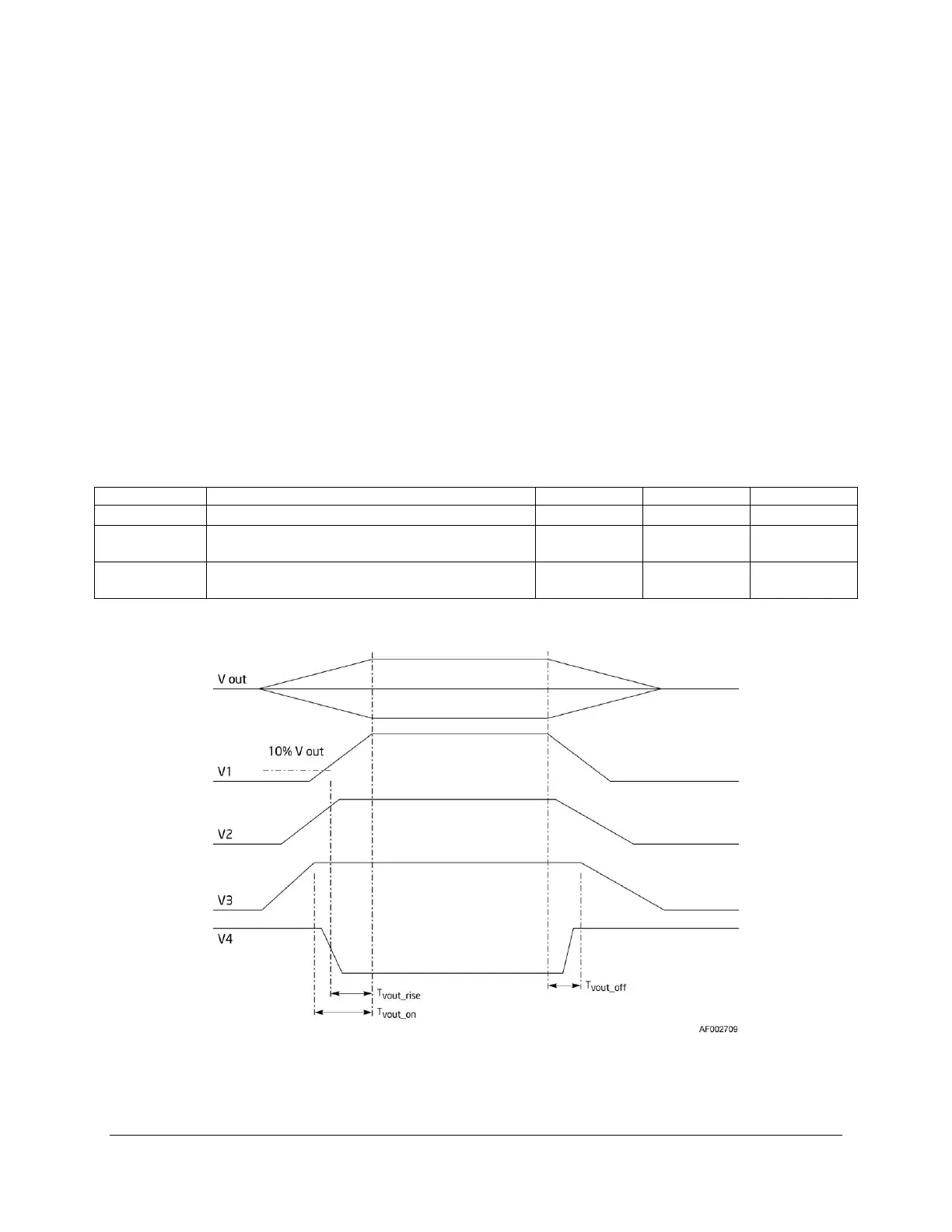

Figure 49. Output Voltage Timing
