Functional Architecture Intel® Server Board S1200BT TPS
Revision 1.0
Intel order number G13326-003
26

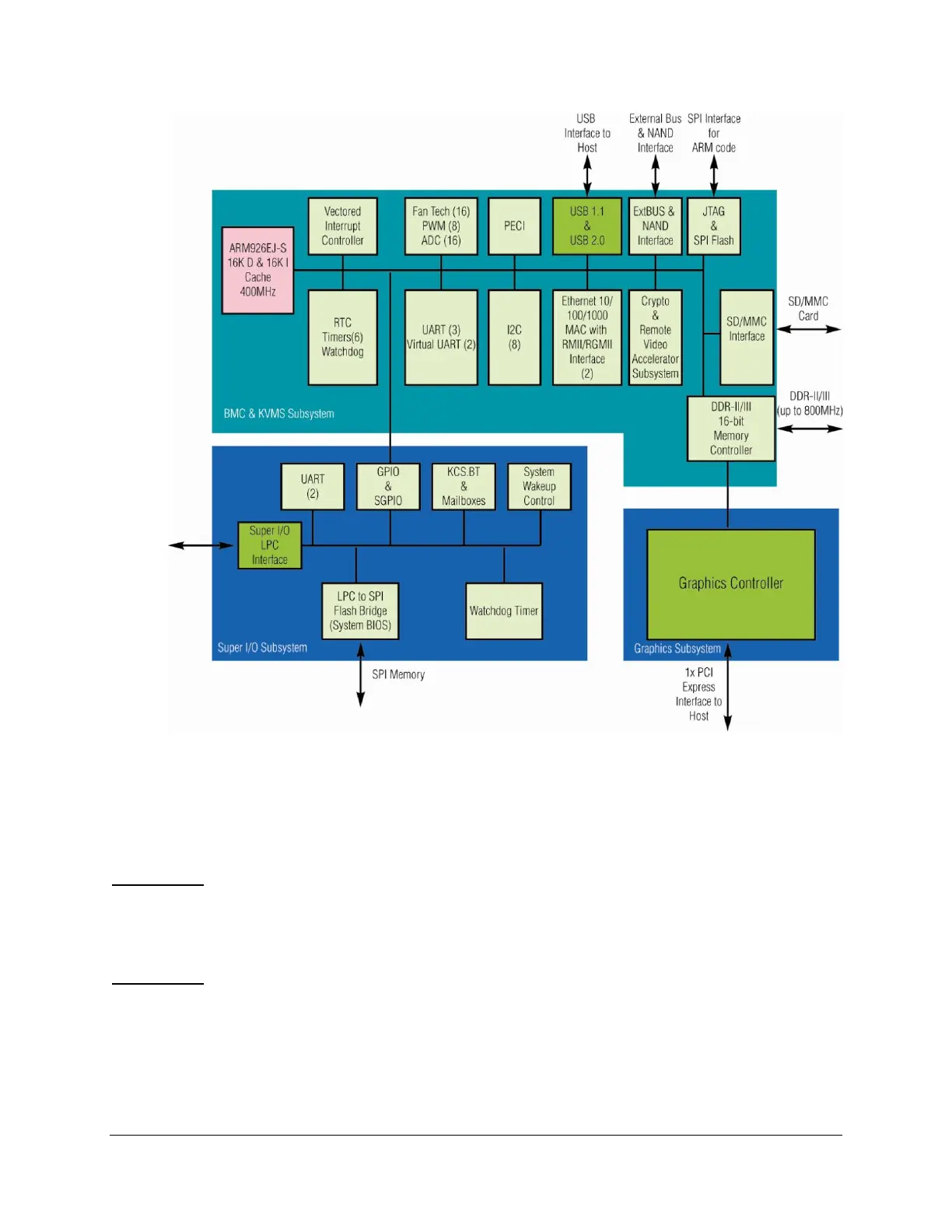

Figure 13. Integrated BMC Hardware
3.6.1 Integrated BMC Embedded LAN Channel
The Integrated BMC hardware includes two dedicated 1000M network interfaces.
Interface 1: This interface is available from either of the available NIC ports in system that can
be shared with the host. Only one NIC may be enabled for management traffic at any time. To
change the NIC enabled for management traffic, please use the ―Write LAN Channel Port‖
OEM IPMI command. The default active interface is port 1 (NIC1).
Interface 2: This interface is available from the optional RMM4 which is a dedicated
management NIC that is not shared with the host.
For these channels, support can be enabled for IPMI-over-LAN and DHCP.
For security reasons, embedded LAN channels have the following default settings:
 IP Address: Static

Intel S1200BTS Specifications

General

Chipset	Intel C204 Chipset
Form Factor	MicroATX
Processor Socket	LGA 1155
Number of Processors Supported	1
Number of Memory Slots	4
Processor Support	Intel Xeon E3-1200 series
Memory Support	DDR3 ECC UDIMM
Expansion Slots	1 PCI-E x16 Gen3, 1 PCI-E x4 Gen2, 1 PCI-E x1 Gen2, 1 PCI 32bit/33MHz
Storage	4 x SATA 3Gb/s, 2 x SATA 6Gb/s
Network Interface	Dual Gigabit Ethernet ports
Memory Speed	1333 MHz
RAID Supported	RAID 0, 1, 5, 10
USB Ports	4 rear
