Intel S1200BTS User Manual

Functional Architecture Intel® Server Board S1200BT TPS
Revision 1.0
Intel order number G13326-003
16
PCIe Gen2 x4
x4 DMI Gen2
12
FLASHFLASH
LPC
Dual GbE
Cougarpoint
Ch A Ch B
DDR3 (Channel B)
PCIe Gen2 x8
XDP
PCIe Gen1 x1
SPI
GLCI
USB 2.0
Slot 7
(PCIe Gen1 x1 in physical)
TPM
Header
4 Unbuffered
DIMMs
GbE
GbE
22
DDR3 (Channel A)
Lewisville
GbE
PHY
USB
(x16 connector)
6
SATA 3G
GbE
Hartwell
2
USB
TPM
MEM
VTT
MEM VRD 12.0
BIOS Flash
Misc
VR s
PCIe Gen2 x8
Slot 6
Knoxvill
Socket H2
Intel
®
Xeon
®
Processor
E3-1200
(x8 connector)
Slot 5
(x8 connector)
Slot 4
Intel
®
Server Board S1200BTS Block
Diagram
ATX – 9.6" x 9.6"
PCI
Internal USB
Header x2
Rear I/O USB
Ports x2
Type-A
Header
SERIAL 1
VIDEO
Rear I/O
VGA Port
Rear I/O
COM Port
SATA-II
0
1
4
5
2
3
A1 A0 B1 B0
VTT
VPLL
VSA
VRD 12.0
VCORE
SERIAL 2
Internal
Header
SM712
PCI 32/33
SIO
W83627DHGP

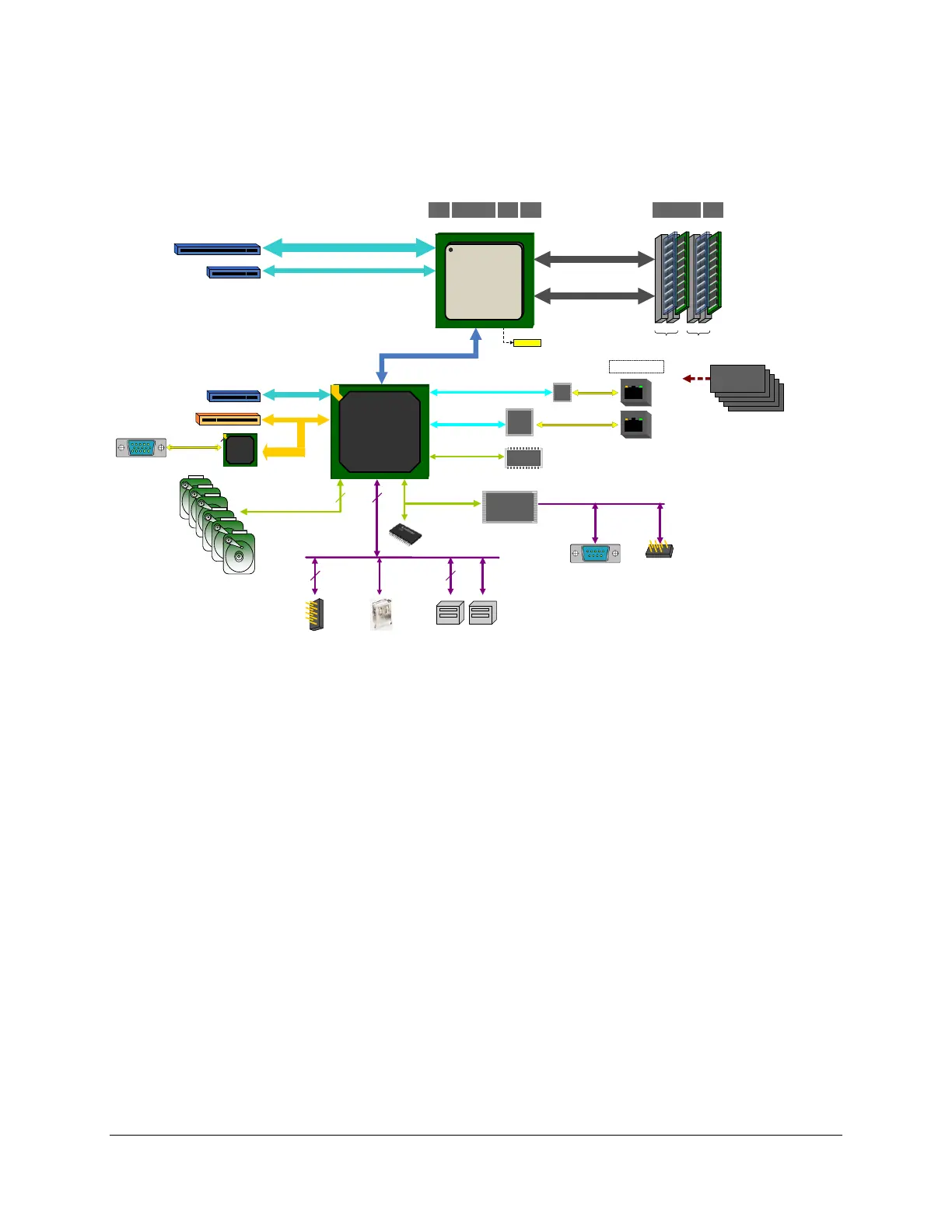

Figure 12. Intel
®
Server Board S1200BTS Functional Block Diagram
3.1 Processor Sub-System
The Intel
®
Server Board S1200BT supports the following processor:
 Intel
®
Xeon
®
Processor E3-1200 Series.
 Intel
®
Core™ Processor i3-2100 Series
The Intel
®
Xeon
®
Processor E3-1200 Series are made up of multi-core processors based on the
32 nm processor technology. Intel
®
Core™ Processor i3-2100 Series are made up of dual-core
processors based on the 32nm processor technology.
3.1.1 Intel
®
Xeon
®
Processor E3-1200 Series
The Intel
®
Xeon
®
Processor E3-1200 Series highly integrated solution variant is composed of
quad processor cores.
 FC-LGA 1155 socket package with 2.5 GT/s.
 Up to 95 W Thermal Design Power (TDP); processors with higher TDP are
not supported.

Intel S1200BTS Specifications

General

Chipset	Intel C204 Chipset
Form Factor	MicroATX
Processor Socket	LGA 1155
Number of Processors Supported	1
Number of Memory Slots	4
Processor Support	Intel Xeon E3-1200 series
Memory Support	DDR3 ECC UDIMM
Expansion Slots	1 PCI-E x16 Gen3, 1 PCI-E x4 Gen2, 1 PCI-E x1 Gen2, 1 PCI 32bit/33MHz
Storage	4 x SATA 3Gb/s, 2 x SATA 6Gb/s
Network Interface	Dual Gigabit Ethernet ports
Memory Speed	1333 MHz
RAID Supported	RAID 0, 1, 5, 10
USB Ports	4 rear
