Intel® Server Board S1200BT TPS Overview
Revision 1.0
Intel order number G13326-003
Figure 2. Intel
®

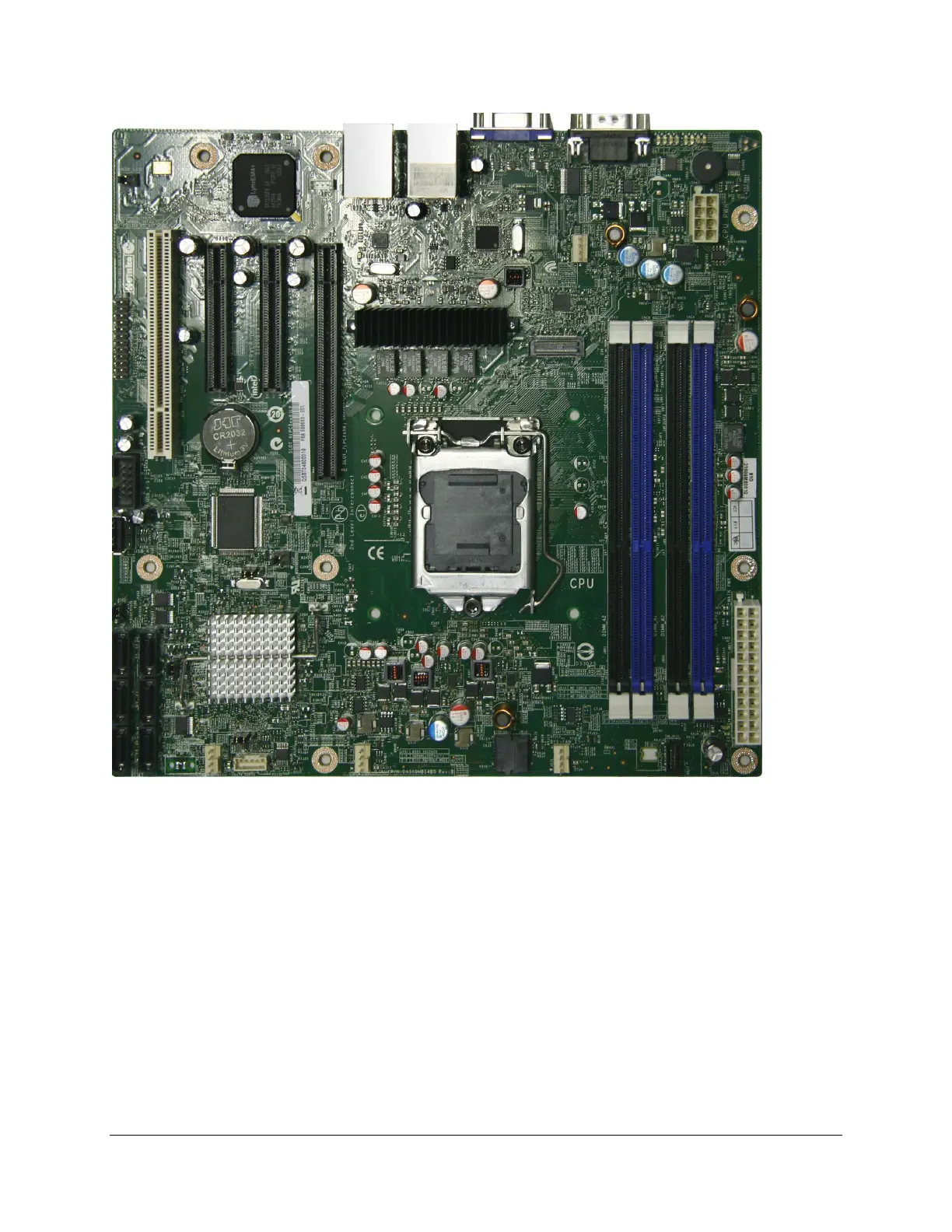

Server Board S1200BTS Picture
2.2.1 Server Board Connector and Component Layout
The following figure shows the board layout of the server board. Each connector and major
component is identified by a number or letter, and Table 2 provides the description.
