Intel® Server Board S1200BT TPS Overview
Revision 1.0
Intel order number G13326-003
7
Description
Description
L
CPU Power Connector
CC
HDD LED
M
SYS_FAN_4
DD
Internal USB Connector
N
RMM4 Dedicated NIC connector
EE
CMOS battery
O
Four DIMM Slots
FF
Four 3Gb/s SATA ports
P
P/S AUX
GG
Two 6Gb/s SATA ports
Q
MAIN POWER
HH
Smart module

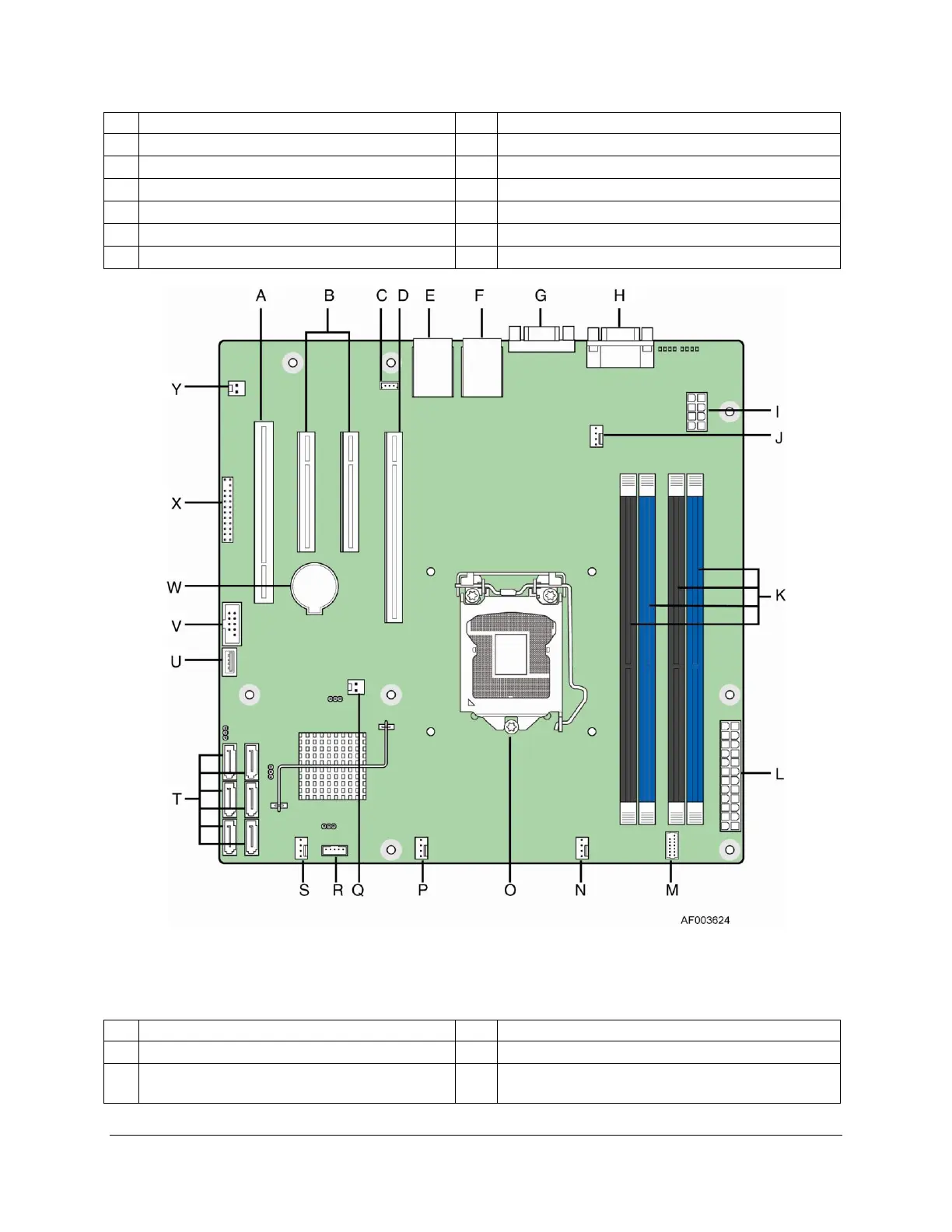

Figure 4. Intel
®
Server Board S1200BTS Layout
Table 3. Major Board Components
Description
Description
A
Slot 4, 32 Mbit/33 MHz PCI
N
SYS FAN 1
B
Slot 5. PCI Express* Gen2 x8 (x8 connector);
Slot 6, PCI Express* Gen2x4 (x8 connector).
O
CPU connector

Intel S1200BTS Specifications

General

Chipset	Intel C204 Chipset
Form Factor	MicroATX
Processor Socket	LGA 1155
Number of Processors Supported	1
Number of Memory Slots	4
Processor Support	Intel Xeon E3-1200 series
Memory Support	DDR3 ECC UDIMM
Expansion Slots	1 PCI-E x16 Gen3, 1 PCI-E x4 Gen2, 1 PCI-E x1 Gen2, 1 PCI 32bit/33MHz
Storage	4 x SATA 3Gb/s, 2 x SATA 6Gb/s
Network Interface	Dual Gigabit Ethernet ports
Memory Speed	1333 MHz
RAID Supported	RAID 0, 1, 5, 10
USB Ports	4 rear
