Eclipse Additional Information Page 94

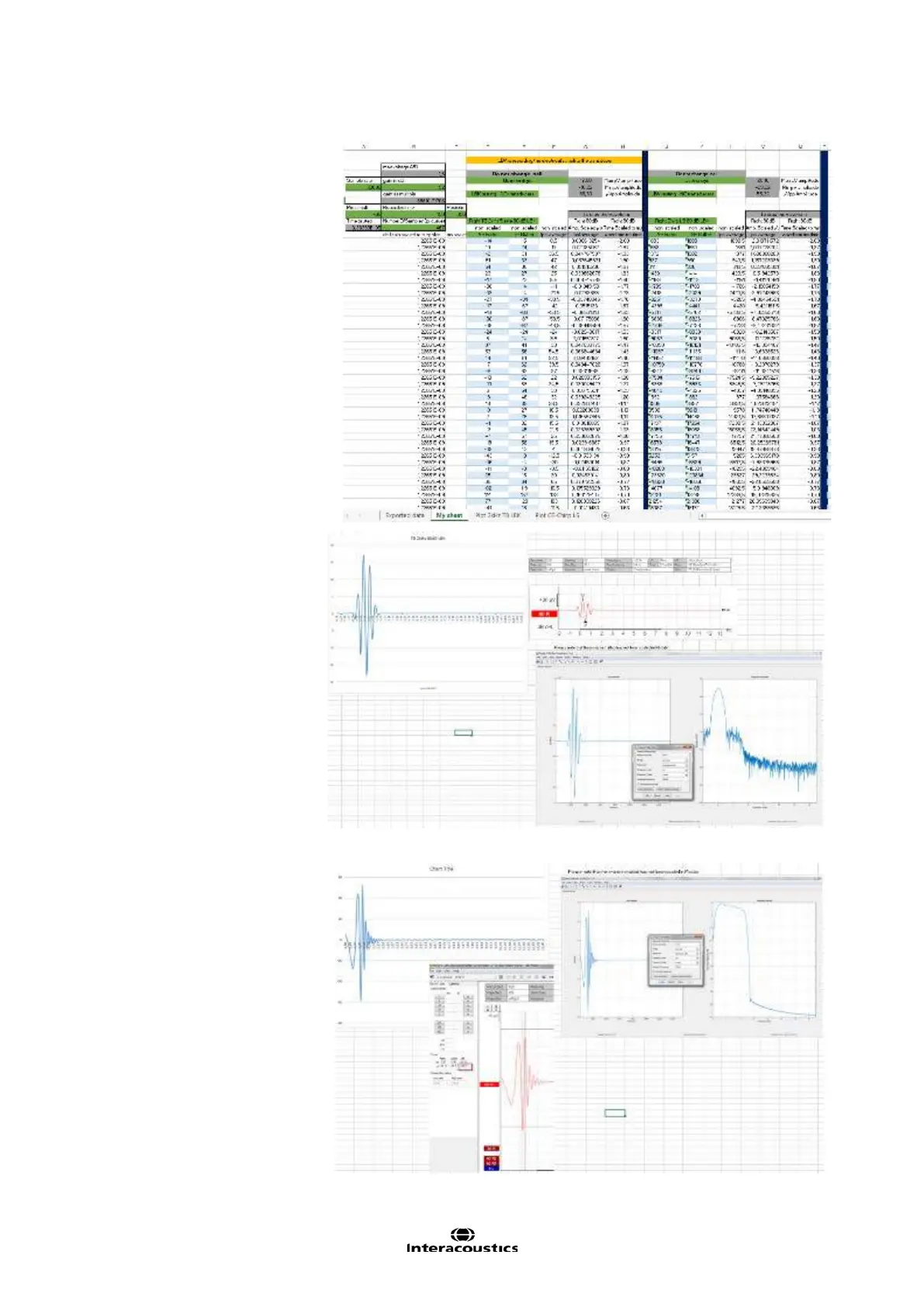

This is the excel sheet template,
holding examples of the loopback
test of TB 2kHz and a CE-Chirp
LS.
Besides this it also holds recorded
data for click and for a NB Chirp
LS 2kHz. Not plotted.
In the same excel sheet the rec-
orded data have been plotted,
showing the same recording as
displayed under the EPx5 soft-
ware.
The frequency response has
also been calculated and is seen
in the bottom right corner, where
both the time and frequency re-
sponse of the TB 2kHz at
80dBnHL, picture inserted from
Matlab calculations.
In the Upper right corner the time
and frequency response of the
CE-Chirp LS at 80dBnHL, picture
inserted from Matlab calculations.
