2.5 Installation and use of the cradle
Connect the Type B Micro USB plug of the power supply to the
rear of the cradle.
USE ONLY UE08WCP-050160SPA POWER SUPPLY.
The separable mains connector for UE08WCP-050160SPA is
used to safely disconnect mains from the device. Do not
position the power supply in a position so that it is difficult to
disconnect the device.
Do not attempt to use any other power supply. It could cause
risk of fire or electrical shock to operator or patient.

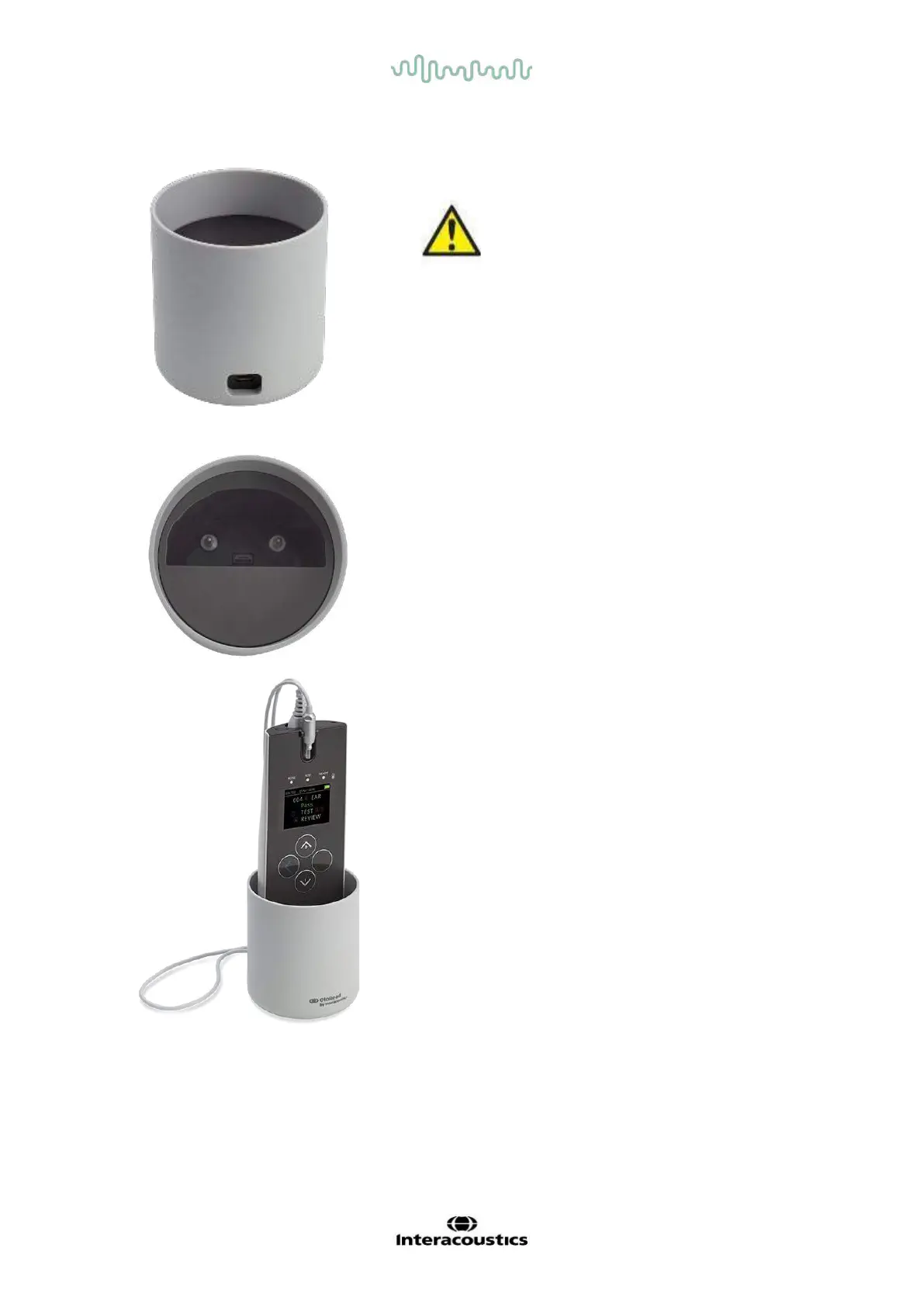

Place the cradle upright on your desk. There are insertion
guides to place the instrument properly into the cradle.
Two pins can be found on the bottom of the instrument bay to
guide the OtoRead
TM
into place.
Place the OtoRead
TM
into the cradle so that it sits within the U-
shaped placement guides. Proper placement in the cradle is
needed to ensure charging of the battery.
To remove the OtoRead
TM
from the cradle, grasp the upper
portion of the OtoRead
TM
above the cradle placement guides
and lift it out.
